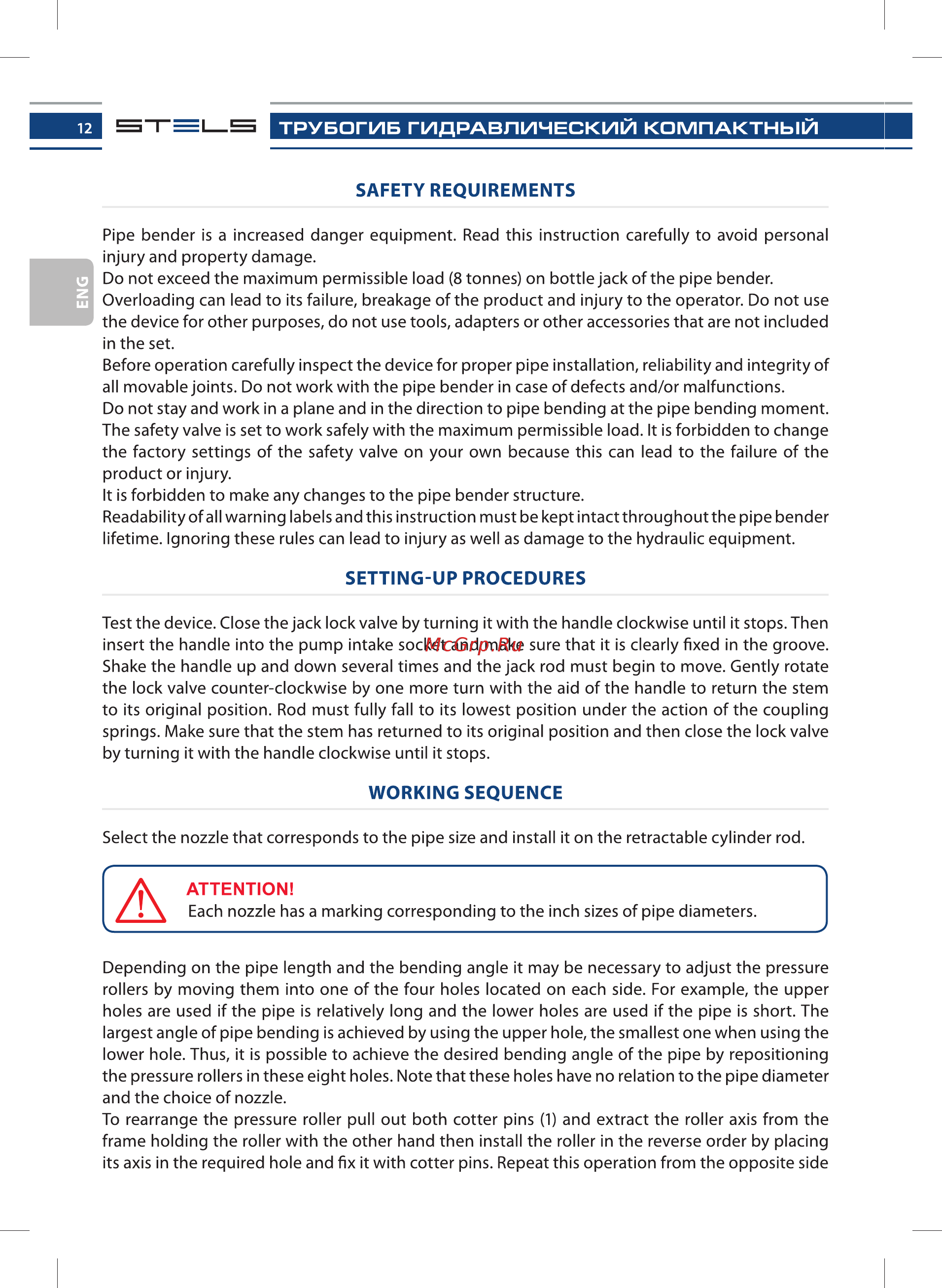

12 S r l_S ТРУБОГИБ ГИДРАВЛИЧЕСКИЙ КОМПАКТНЫЙ ENG SAFETY REQUIREMENTS Pipe bender is a increased danger equipment Read this instruction carefully to avoid personal injury and property damage Do not exceed the maximum permissible load 8 tonnes on bottle jack of the pipe bender Overloading can lead to its failure breakage of the product and injury to the operator Do not use the device for other purposes do not use tools adapters or other accessories that are not included in the set Before operation carefully inspect the device for proper pipe installation reliability and integrity of all movable joints Do not work with the pipe bender in case of defects and or malfunctions Do not stay and work in a plane and in the direction to pipe bending at the pipe bending moment The safety valve is set to work safely with the maximum permissible load It is forbidden to change the factory settings of the safety valve on your own because this can lead to the failure of the product or injury It is forbidden to make any changes to the pipe bender structure Readability of all warning labels and this instruction must be kept intact throughout the pipe bender lifetime Ignoring these rules can lead to injury as well as damage to the hydraulic equipment SETTING UP PROCEDURES Test the device Close the jack lock valve by turning it with the handle clockwise until it stops Then insert the handle into the pump intake socket and make sure that it is clearly fixed in the groove Shake the handle up and down several times and the jack rod must begin to move Gently rotate the lock valve counter clockwise by one more turn with the aid of the handle to return the stem to its original position Rod must fully fall to its lowest position under the action of the coupling springs Make sure that the stem has returned to its original position and then close the lock valve by turning it with the handle clockwise until it stops WORKING SEQUENCE Select the nozzle that corresponds to the pipe size and install it on the retractable cylinder rod ATTENTION Each nozzle has a marking corresponding to the inch sizes of pipe diameters Depending on the pipe length and the bending angle it may be necessary to adjust the pressure rollers by moving them into one of the four holes located on each side For example the upper holes are used if the pipe is relatively long and the lower holes are used if the pipe is short The largest angle of pipe bending is achieved by using the upper hole the smallest one when using the lower hole Thus it is possible to achieve the desired bending angle of the pipe by repositioning the pressure rollers in these eight holes Note that these holes have no relation to the pipe diameter and the choice of nozzle To rearrange the pressure roller pull out both cotter pins 1 and extract the roller axis from the frame holding the roller with the other hand then install the roller in the reverse order by placing its axis in the required hole and fix it with cotter pins Repeat this operation from the opposite side
