GFX360/GFX360

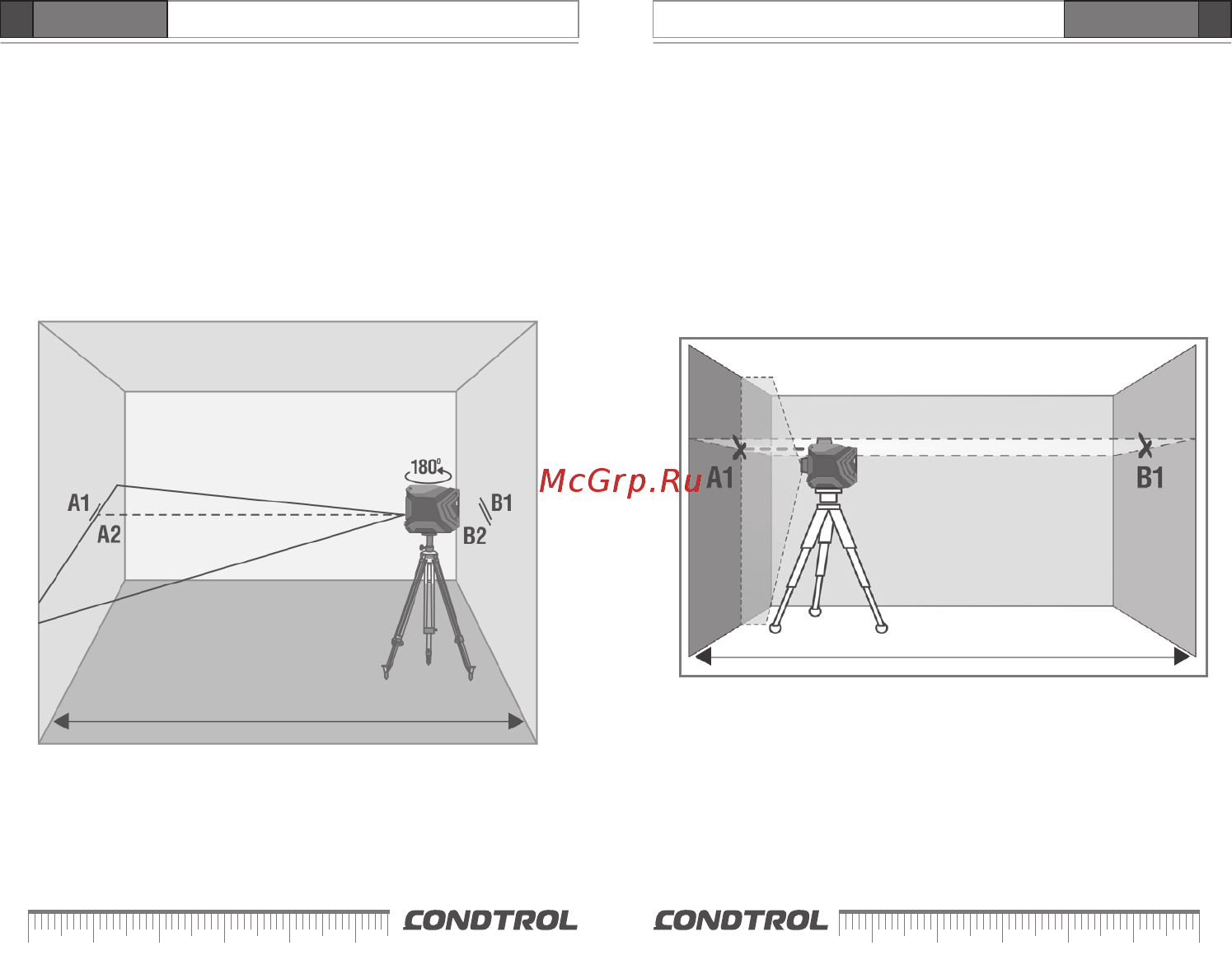

Check of horizontal line is carried out by using 2 walls located opposite

each other at a 5m distance.

1. Put the laser level to one of the walls as close as possible. Move

the switch bar to position ON and switch on both vertical and

horizontal planes. Rotate the laser level so that laser emitters are

located opposite to the near wall and laser lines cross each other.

Mark location of laser lines crossing as А1. Mark location of laser lines

crossing on another wall as B1.

6. Move the laser level closer to the opposite wall. Mark location of

horizontal line on the wall as B2.

7. Rotate the laser level by 180° and mark location of horizontal line

on the opposite wall as A2.

8. Measure the distance dA, dB between points А1, А2 and В1, В2

accordingly. If the difference between values dA, dB exceeds 3 mm –

please contact the service center.
