Continental Device India Pvt. Limited
An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company

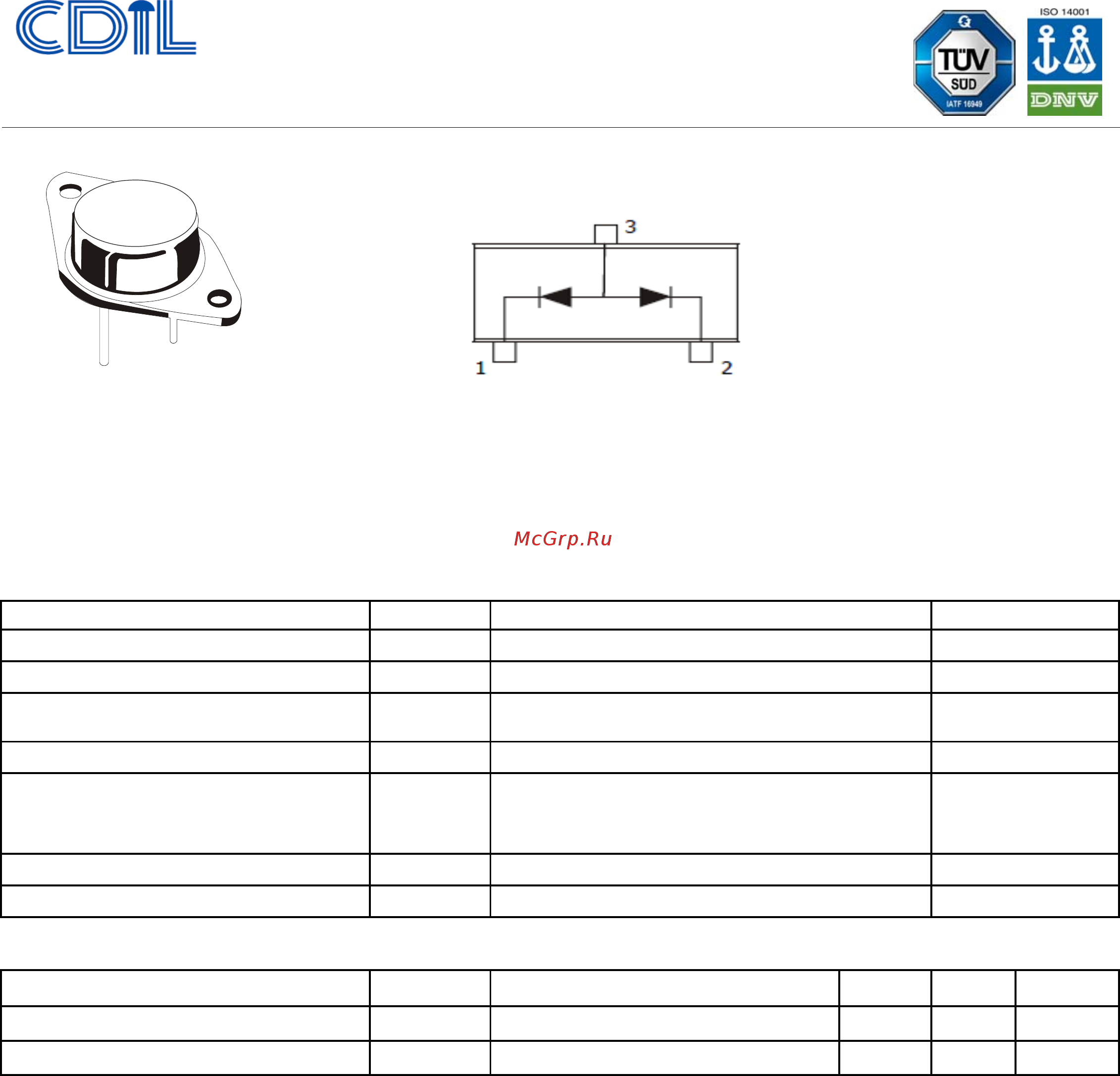

DUAL POWER RECTIFIER, COMMON ANODE
A2436
CASE
TO-3
Metal Can Package
CIRCUIT
Description :
40A, 100V Dual Rectifier, Common Anode
Marking : A2436
ABSOLUTE MAXIMUM RATINGS (T
A
= 25°C)
DESCRIPTION SYMBOL VALUE UNITS
Maximum D.C. Reverse Voltage V
R
100 V
Maximum Repetitive Reverse Voltage V
RRM
100 V
Maximum Repetitive Reverse Working
Voltage
V
RWM
100 V
Output Current (20A/Diode), T
C
=100°C I
O
40 A
Non - Repetitive Peak Surge Forward
Current
1ms/ 50Hz Half Sine Wave
I
FSM
300 A
Thermal Characteristics R
thJ-C
1.5 ºC/W
Junction Temperature Range T
j
- 65 to +150 ºC
ELECTRICAL CHARACTERISTICS
DESCRIPTION SYMBOL TEST CONDITION MIN MAX UNITS
Forward Voltage V
F
I
F
=20A, T
A
=25°C 1.3 V
Reverse Leakage Current I
R
V
R
=100V, T
A
=25°C 500 uA
1
2
3
A2436 Rev_1 24012019E
Continental Device India Pvt. Limited
Datasheet Page 1 of 3
