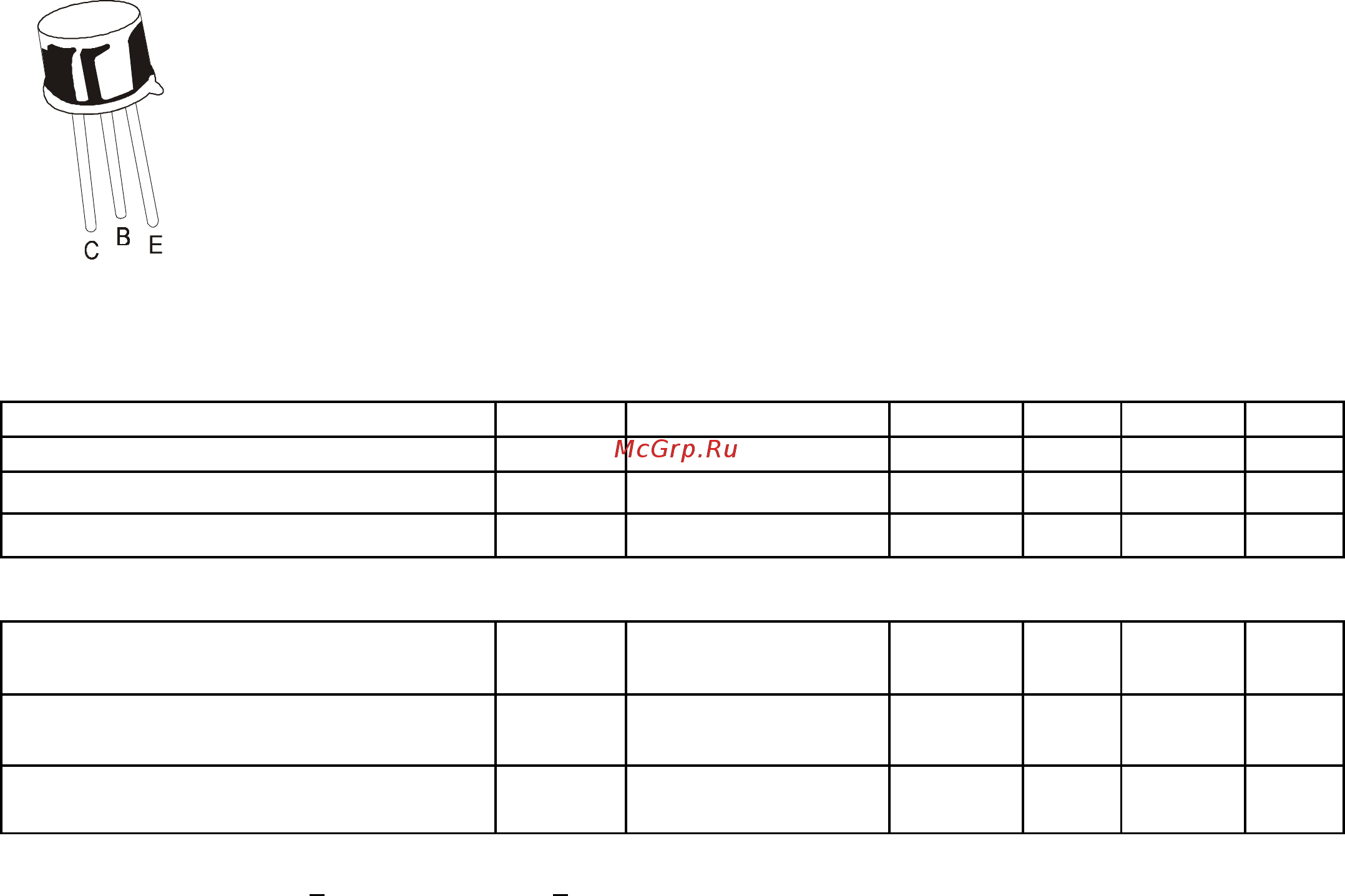

PNP SILICON PLANAR TRANSISTORS 2N4234, 2N4235
2N4236
TO-39
Metal Can Package
ELECTRICAL CHARACTERISTICS (T
a
=25ºC unless specified otherwise)
SMALL SIGNAL CHARACTERISTICS
DESCRIPTION SYMBOL TEST CONDITION MIN TYP MAX UNIT
Collector Emitter Saturation Voltage
*V
CE (sat)
I
C
=1A, I
B
=125mA
0.6 V
Base Emitter Saturation Voltage
*V
BE (sat)
I
C
=1A, I
B
=0.1A
1.5 V
Base Emitter On Voltage
*V
BE (on)
I
C
=250mA, V
CE
=1V
1.0 V
SMALL SIGNAL CHARACTERISTICS
Output Capacitance
C
obo
V
CB
=10V, I
E
=0,
f=100KHz
100 pF
Small Signal Current Gain
h
fe
I
C
=50mA, V
CE
=10V,
f=1KHz
25
Current Gain Bandwidth Product
f
T
I
C
=100mA, V
CE
=10V,
f=1MHz
3.0 MHz
*Pulse Test: Pulse Width < 300µµs, Duty Cycle < 2%
2N4234_4236Rev_1 121004E
Continental Device India Limited
Data Sheet Page 2 of 4
