GENERAL

7200 V Plus 800 - 1000

UAC

(*)

EAF

(SB)

R 7200 V Plus storage cylinders can also be connected to previously installed water heating systems provided they are of adequate

output power, but care must be taken to ensure correct water ow directions.

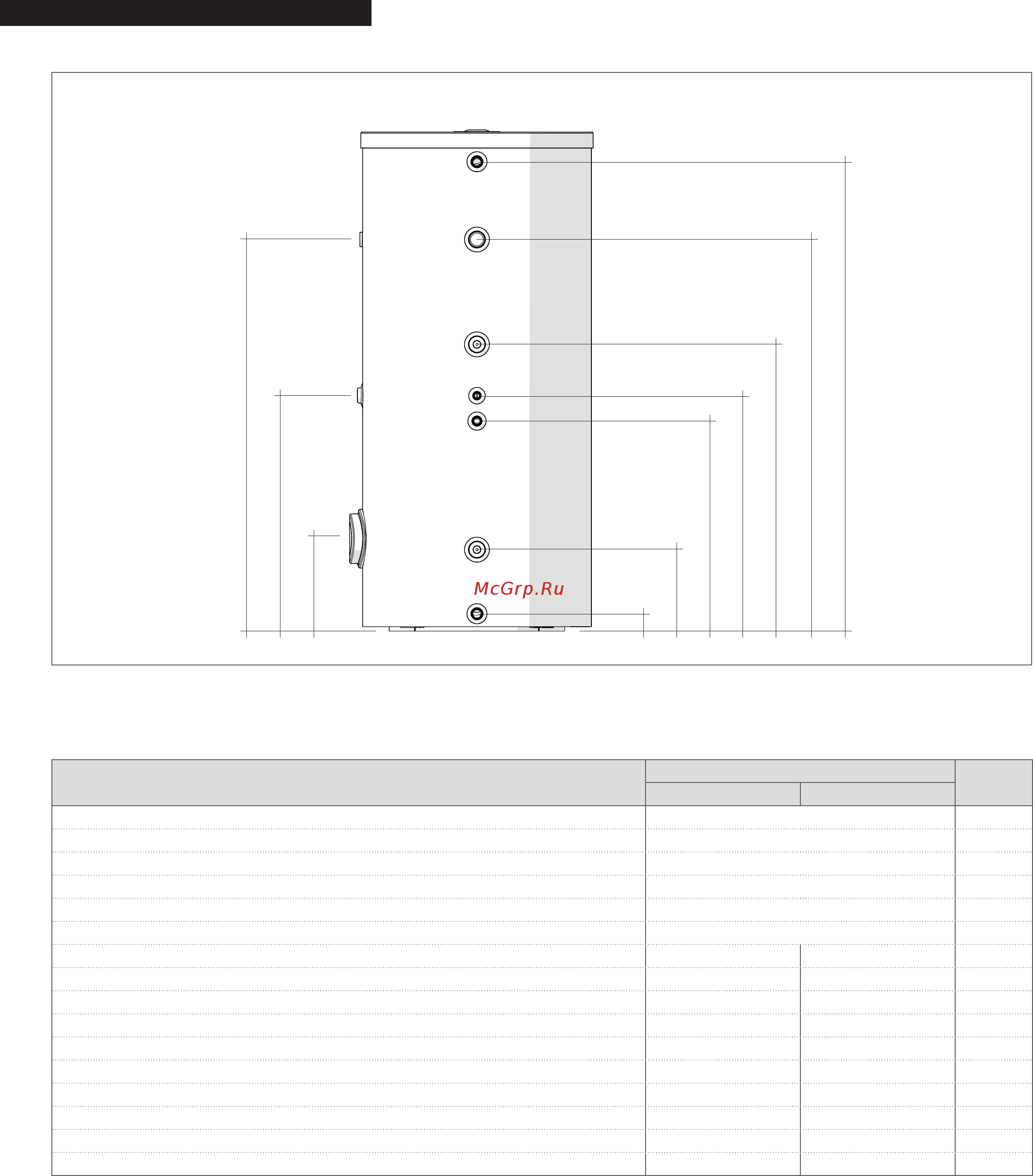

Water ttings have the following specications:

DESCRIPTION

7200 V Plus

800 1000

UAC Domestic hot water outlet 1"1/4M Ø

ES Heat exchanger inlet 1"1/4F Ø

RC DHW recirculation 1"M Ø

US Heat exchanger outlet 1"1/4F Ø

EAF (SB) Domestic cold water inlet (storage cylinder drain) 1"1/4M Ø

RE Sleeve for electric heating element (not supplied) 1"1/2F Ø

A 1470 1695 mm

B 950 1020 mm

C 400 400 mm

D 75 75 mm

E 354 354 mm

F 824 909 mm

G 919 1019 mm

H 1125 1241 mm

I 1707 2032 mm

L (*) 1459 1695 mm

(*) Fitting (L) can be used as an alternative installation position for the rst magnesium anode (in positions that are not

particularly high).

We recommend that you install isolating valves in the outlet and return lines.

Check the efciency of the seals when lling/relling the storage cylinder.
