Beretta RIELLO 7200.800 V PLUS [6/20] Technical specifications
![Beretta RIELLO 7200.800 V PLUS [6/20] Technical specifications](/views2/1655863/page6/bg6.png)
6
GENERAL
GENERAL

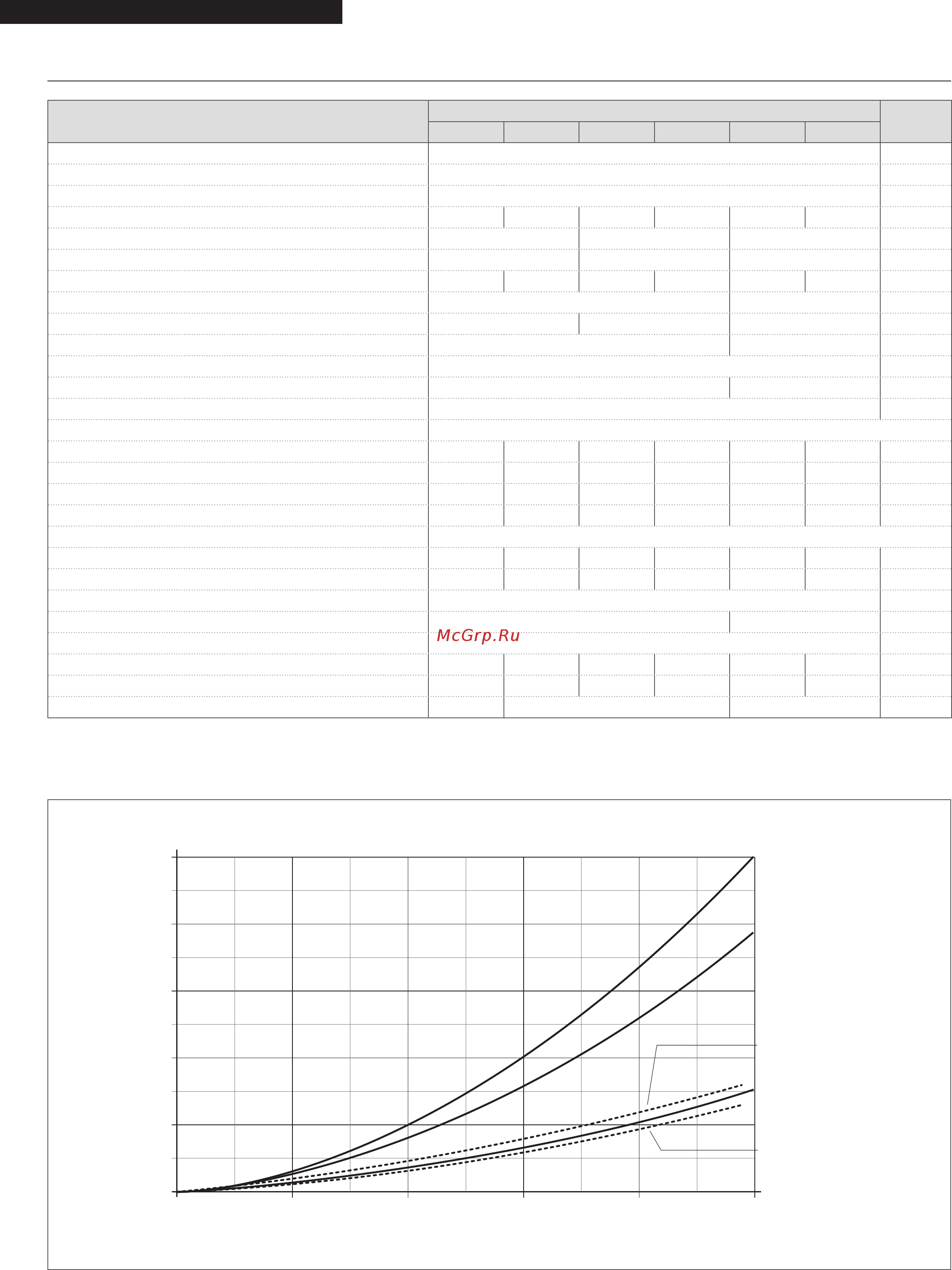

6 TECHNICAL SPECIFICATIONS
DESCRIPTION
7200 V Plus
200 300 430 550 800 1000
Type of storage cylinder Vitried
Storage cylinder layout Vertical
Heat exchanger layout Vertical
Storage cylinder capacity 206 298 432 545 716 875 l
Diameter of storage cylinder with insulation 605 755 1000 mm
Diameter of storage cylinder without insulation 500 650 790 mm
Height with insulation 1330 1840 1630 1980 1870 2195 mm
Insulation thickness 50 100 mm
Diameter/length of rst magnesium anode 33/450 33/520 33/450 mm
Diameter/length of second magnesium anode - 33/450 mm
Flange diameter 118 mm
Diameter/length of sensor sockets 16/175 7/210 Ø mm
Sleeve for electric heating element (not supplied) 1 1/2” F Ø
Maximum power absorbed
Primary coil at 80°C 50,2 80,7 92,6 92,6 93,8 114 kW
Primary coil at 88°C 60,7 96,9 117 117 113 134 kW
Coil water capacity 9,2 12,2 25,5 25,5 26,3 30,6 l
Coil heat exchange surface area 1,45 1,93 2,95 2,95 3,05 3,53 m
2
Domestic hot water production (∆T 35°C)
Primary coil at 80°C 1200 1954 2281 2281 2319 2816 l/h
Primary coil at 88°C 1465 2355 2910 2910 2830 3341 l/h
Maximum working pressure of coils 10 bar
Maximum working pressure of storage cylinder 10 7 bar
Maximum operating temperature 99 °C
Net weight with insulation 82 110 155 170 200 240 kg
Heat loss according to EN 12897:2006 at ∆T=45 °C 74 69 60 68 156 175 W
Energy efciency class C B D
Pressure drops
COIL
Pressure drop (mbar)
500
400
300
200
100
0
0 1000 2000 3000 4000 5000
Mod. 1000
Mod. 800
Mod. 200
Mod. 430-550
Mod. 300
Flow rate (l/h)
