Daikin EWAD830C-SS [89/96] Dimensional drawings
![Daikin EWAD830C-SS [89/96] Dimensional drawings](/views2/1658333/page89/bg59.png)
89

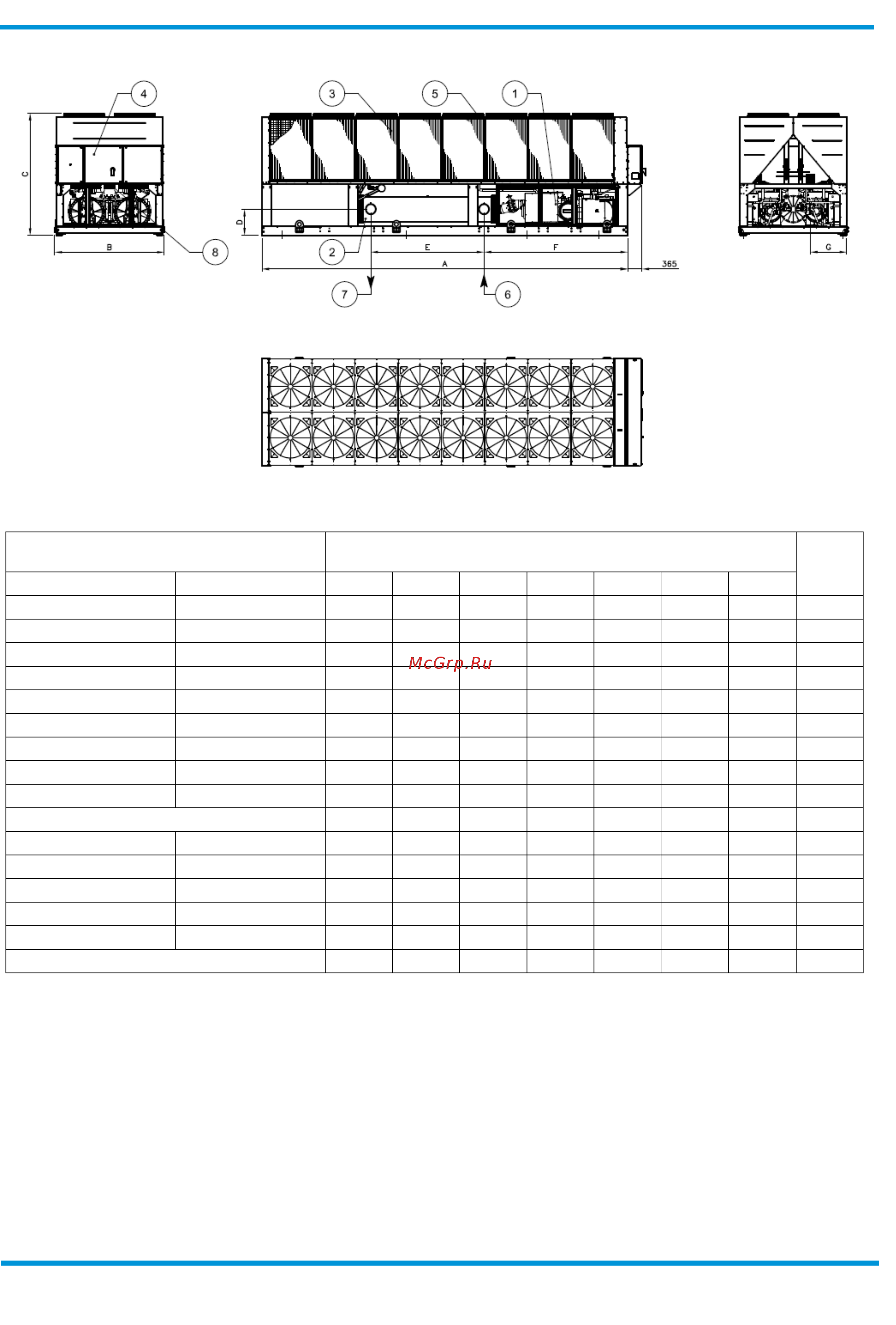

EWAD-C- (2 circuits)
Drawing is for illustration only. Please refer to the table below for unit dimensions.
EWAD~C-
Dimensions (mm)
Fans
Size Size A B C D E F G
EWAD650÷830C-SS/SL EWAD620÷720C-SR 2285 6185 2540 450 2412 435 810 Nr 10
EWAD910÷970C-SS/SL EWAD880÷920C-SR 2285 6185 2540 450 2412 435 810 Nr 12
EWADC11C-SS/SL EWADC10C-SR 2285 7085 2540 1350 2412 435 810 Nr 14
EWADC12C-SS/SL EWADC11C-SR 2285 7985 2540 2250 2412 435 810 Nr 16
EWADC13÷H14C-SS/SL EWADC12÷H14C-SR 2285 8885 2540 3170 2360 540 760 Nr 18
EWAD760C-XS/XL EWAD740C-XR 2285 6185 2540 470 2412 435 810 Nr 12
EWAD830÷890C-XS/XL EWAD810÷870C-XR 2285 7085 2540 1370 2412 435 810 Nr 14
EWAD990÷C10C-XS/XL EWAD970÷C10C-XR 2285 7985 2540 2270 2360 540 760 Nr 16
EWADC11÷C13C-XS/XL EWADC11÷C13C-XR 2285 9785 2540 4070 2360 540 760 Nr 20
EWADH14÷H15C-XS/XL/XR 2285 9785 2540 2920 3440 540 685 Nr 20
EWAD820÷890C-PS/PL EWAD810÷880C-PR 2285 8885 2540 2020 3510 540 760 Nr 18
EWAD980C-PS/PL EWAD960C-PR 2285 8885 2540 2020 3440 540 685 Nr 18
EWADC11÷C12C-PS/PL EWADC10÷C11C-PR 2285 9785 2540 2920 3440 540 685 Nr 20
EWADC13C-PS/PL EWADC13C-PR 2285 11085 2540 4205 3440 540 685 Nr 22
EWADC14C-PS/PL EWADC14C-PR 2285 11985 2540 5105 3440 540 685 Nr 24
EWADC15÷C16C-PS/PL/PR 2285 11985 2540 5130 3440 540 685 Nr 24
LEGEND
1. Compressor
2. Evaporator
3. Condenser coil
4. Electrical panel
5. Fan
6. Evaporator Water inlet
7. Evaporator Water outlet
8. Slot for power and control connection
DIMENSIONAL DRAWINGS
