Daikin EWAPC11AJYNN [34/41] Dimensional drawing centre of gravity
![Daikin EWAPC11AJYNN [34/41] Dimensional drawing centre of gravity](/views2/1659202/page34/bg22.png)
• Chillers • R-407C • EWAP-AJYNN
1
6
• Hydronic Systems • Chillers
34

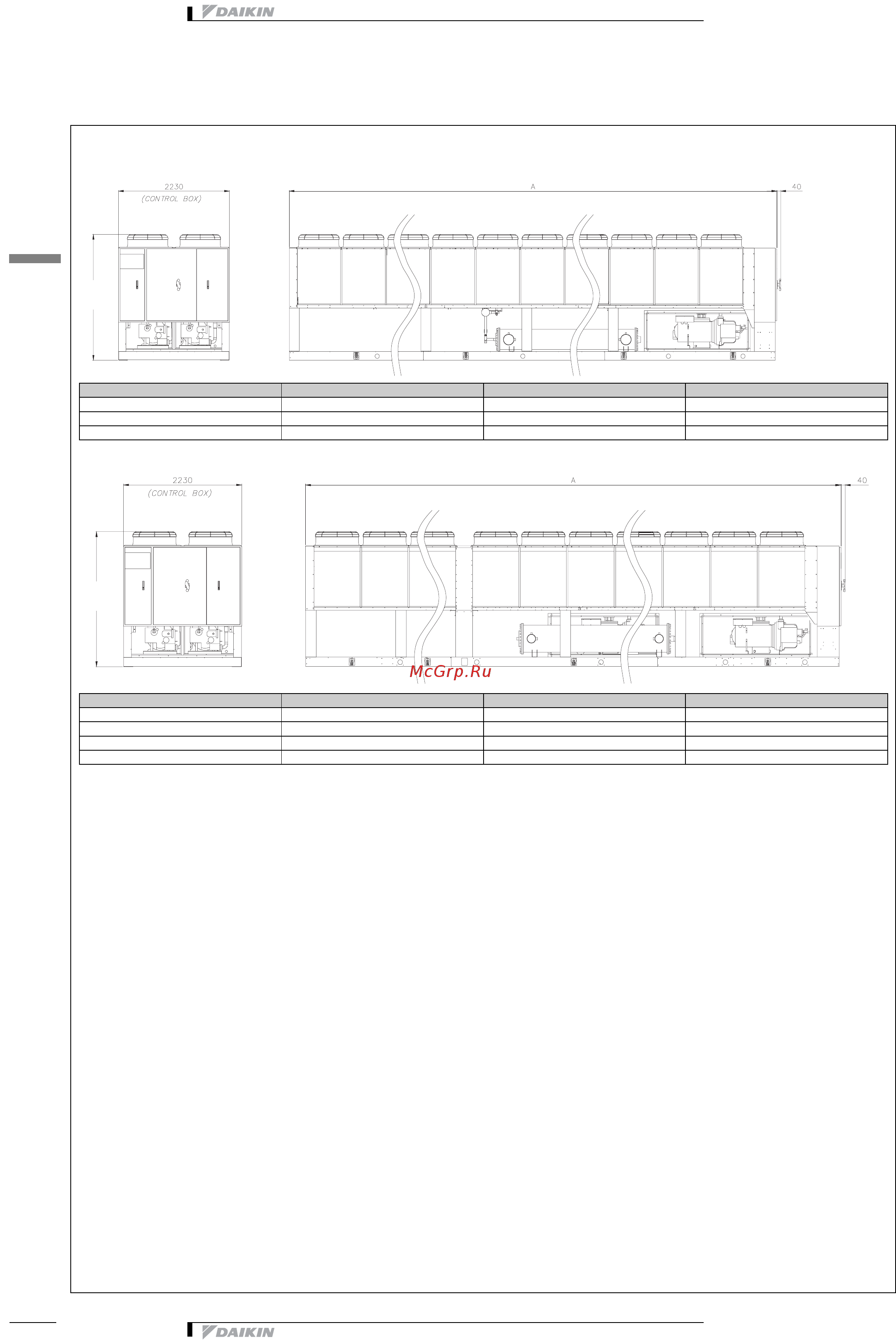

6 Dimensional drawing & centre of gravity
6 - 1 Dimensional drawing
EWAP800-C11AJYNN
EWAP850-C11AJYNN/A
EWAPC12-C18AJYNN/A
EWAP-AJYNN Length – A (mm) EWAP-AJYNN/A Length – A (mm)
800 6210 850/A 8010
900-950 7110 900-950/A 8910
C10-C11 8010 C10-C11 /A 9810
EWAP-AJYNN Length – A (mm) EWAP-AJYNN/A Length – A (mm)
C12 9170 C12 11870
C13-C14 10070 C13-C14 12770
C15-C16
10970 C15-C16 13670
C17-C18 11870
C17-C18
2520
2520
