General Outline ESIE03-03
1–24 Part 1 – System Outline
3
11
4
5

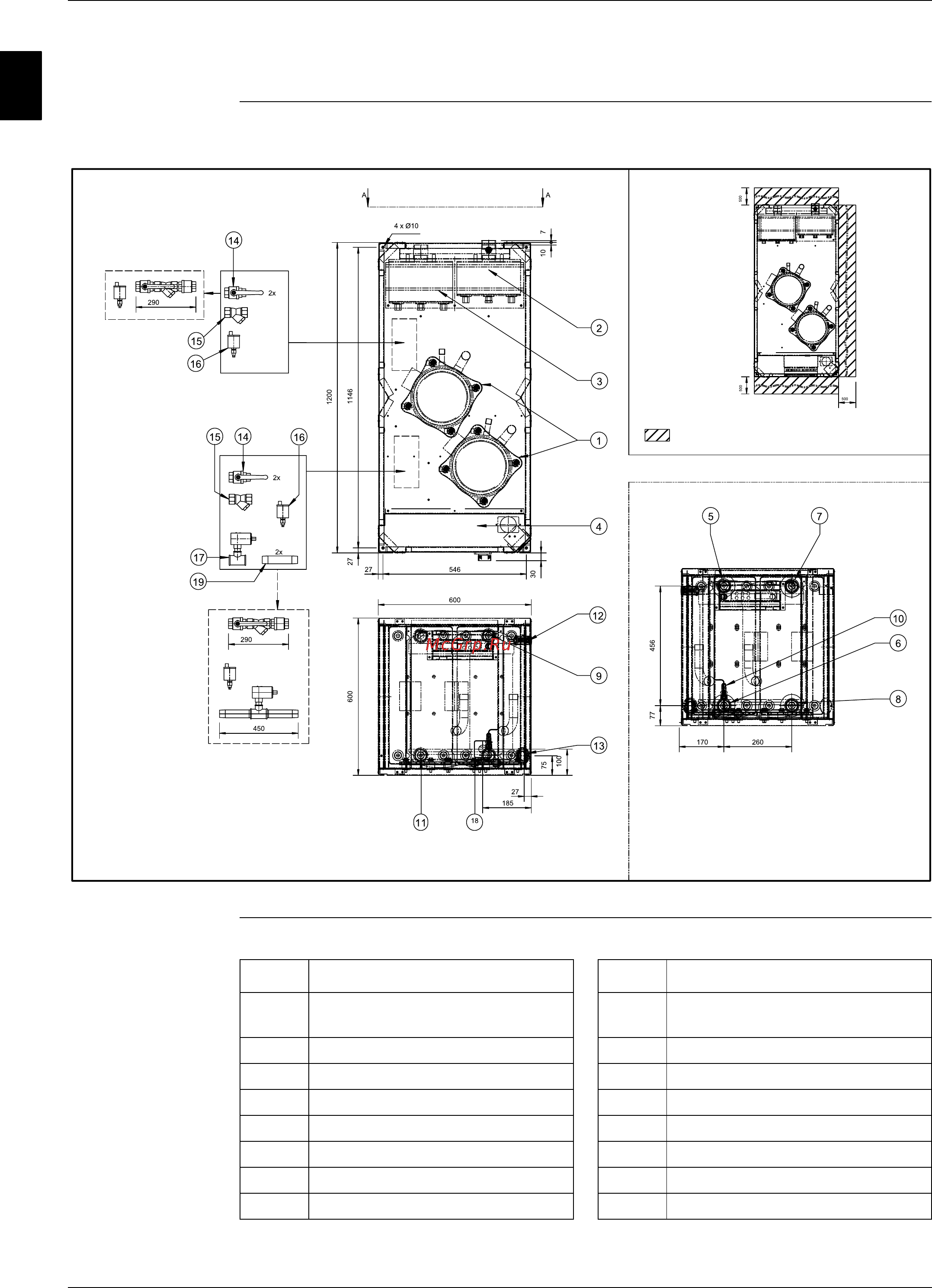

1.15 Outlook Drawing: EUW16-20-24KZW1
EUW16-20-24KZW1 The illustration below shows the outlook, the dimensions and the installation and service space of the
unit (mm).
Components The table below lists the components.
Required service space around the unit
View A-A
No. Component No. Component
1 Compressor 11 Condenser entering water
temperature sensor
2 Evaporator 12 Digital display controller
3 Condenser 13 Power supply intake (Ø 48)
4 Switch box 14 Ball valve
5 Chilled water in 15 Water filter
6 Chilled water out 16 Air purge
7 Condenser water OUT 17 Flow switch
8 Condenser water IN 18 Main switch
