Installation and operation manual
19
EUWAC5~10FBZW1
Packaged air-cooled water chillers
4PW61657-1 – 07.2010
7 Condenser fan motor
■ Clean the cooling ribs and the cooling grid of the motor.
■ Check on abnormal noises. If the fan or motor are damaged,
call your local Daikin dealer.
8 Air in/outlet ducts of unit
■ Clean the inside of the ducting (use a vacuum cleaner, avoid
dirt and dust from entering the condenser coil).
■ Check if the ducts are properly fixed and do not make contact
with the unit (may cause abnormal noises or vibrations).
■ Make sure that the flexible connection between the ducts and
the unit is not damaged or perforated. Replace it if
necessary.

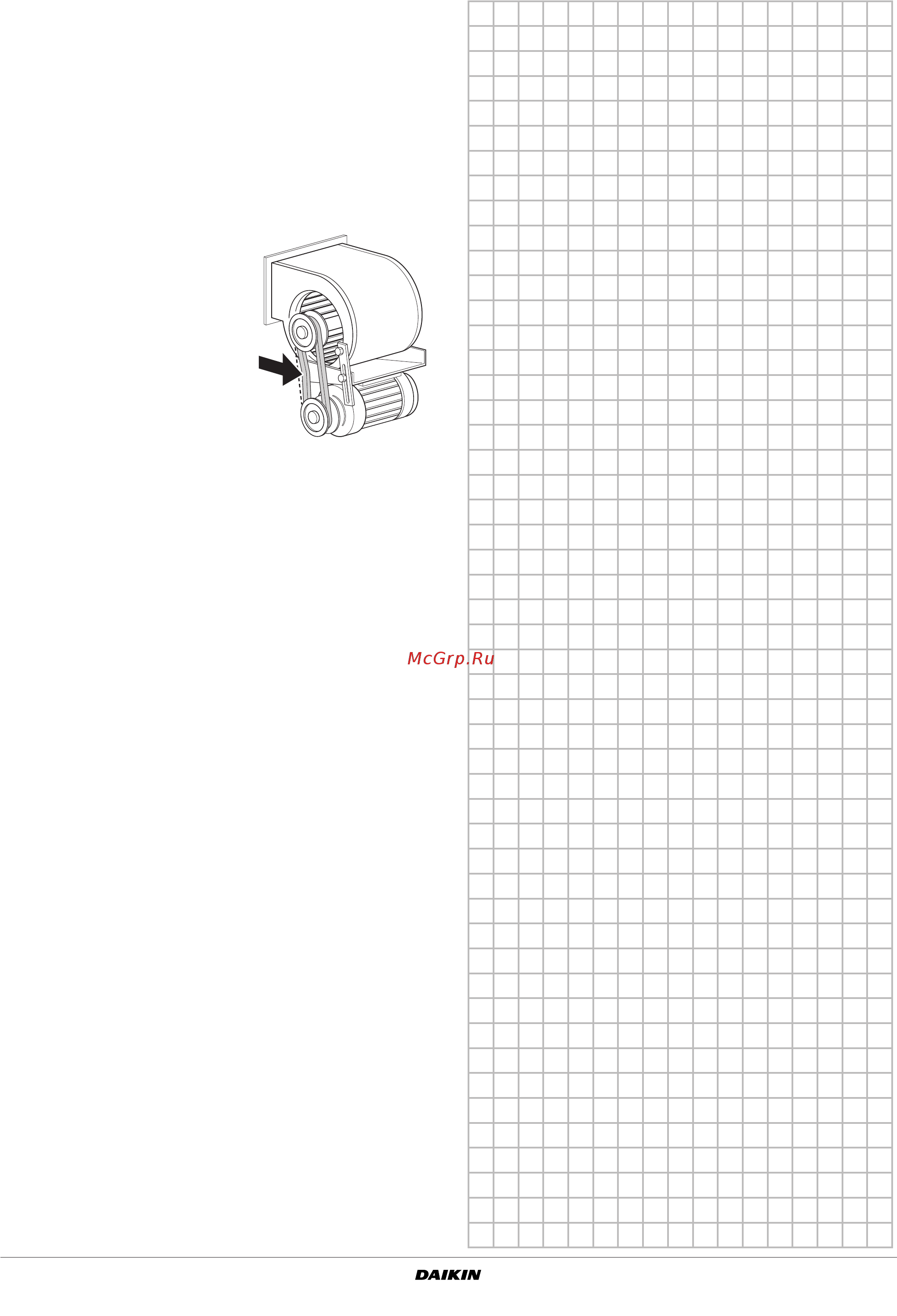

9 V-belt transmission of condenser fan motor
(for EUWAC8+10 units only)
■ Check that the V-belt is not worn
out. Replace if necessary.
■ Check the tension of the V-belt.
When the belt is slightly
pressed with the fingers, the
relaxation of the belt may not
exceed 10 mm.
10 Water supply
■ Check if the water connection is still well fixed.
■ Check the water quality (refer to the chapter "Installing the
unit" for specifications of the water quality).
11 Drain disposal
■ Check the proper functioning of the drain. Make sure that
water evacuates freely. Clean the drain pan and piping
thoroughly.
Disposal requirements
Dismantling of the unit and treatment of the refrigerant, oil and even-
tual other parts, should be done in accordance with the relevant local
and national regulations.
NOTES
4PW61657-1_digital_EN.book Page 19 Friday, August 27, 2010 8:09 AM
