SELECTION OF LOCATION
The EUWAC unit should be installed in a location that meets the
following requirements:
1 The foundation is strong enough to support the weight of the unit
and the floor is flat to prevent vibration and noise generation.
2 The space around the unit is adequate for servicing and the
minimum space for air inlet and air outlet is available. (See
figure 2 and figure 3.)
If several units are being installed side by side in parallel, the
minimum service space between them must be taken into
account.
3 There is no danger of fire due to leakage of inflammable gas.
4 Select the location of the unit in such a way that neither the
discharged air nor the sound generated by the unit disturb
anyone.
5 Make sure that the air inlet and outlet of the unit are not
positioned towards the main wind direction. Frontal wind will
disturb the operation of the unit. If necessary, use a windscreen
to block the wind.
6 Ensure that water cannot cause any damage to the location in
case it drips out of the unit (e.g. in case of a blocked drain pipe).

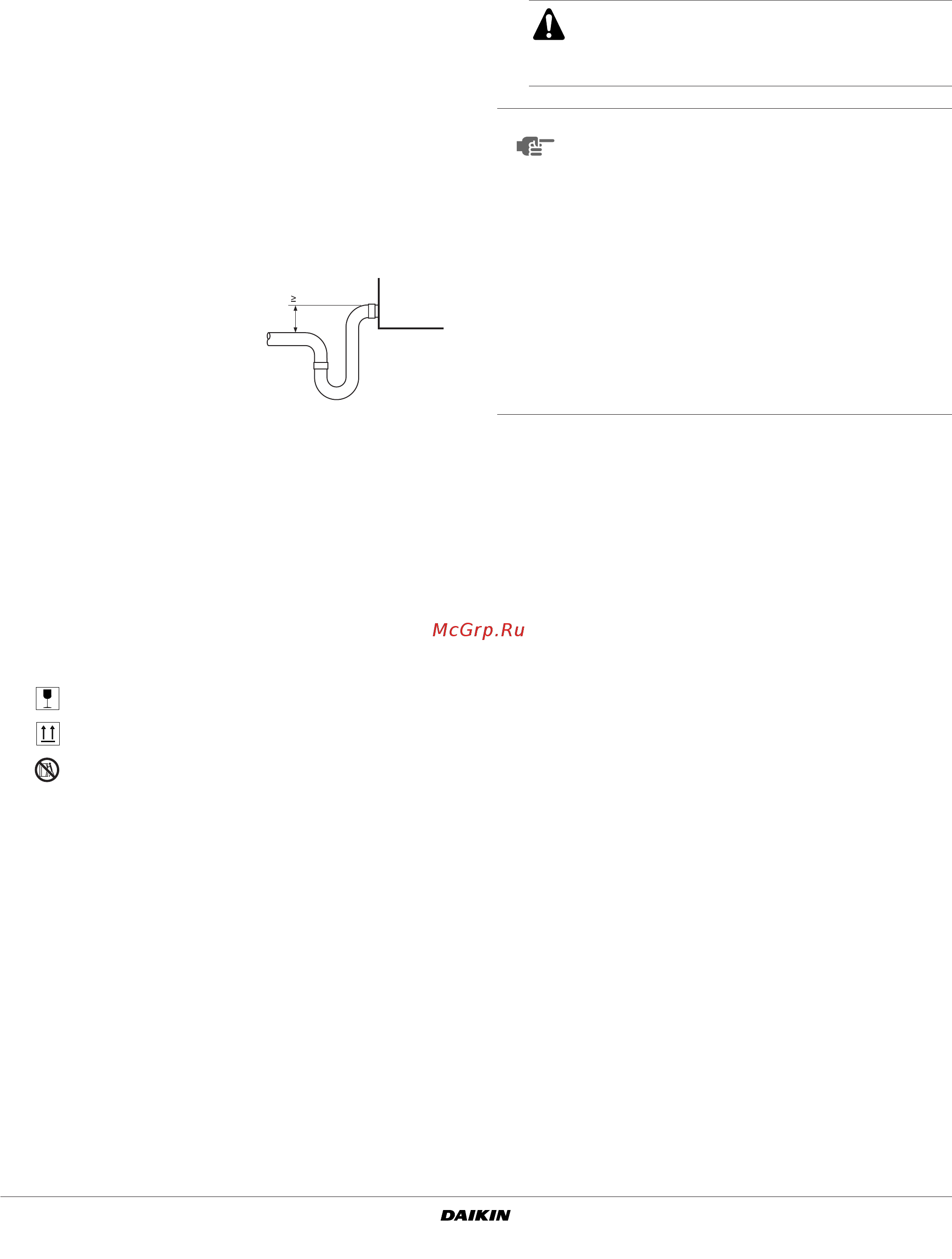

7 A drain is provided and there is
enough space to install a trap
with a minimum fall of 75 mm
between the drain outlets of the
unit and the drain.
The equipment is not intended for use in a potentially explosive
atmosphere.
INSPECTING AND HANDLING THE UNIT
The EUWAC units are packed in a cardboard box and attached on a
wooden pallet.
At delivery, the package should be checked and any damage should
be reported immediately to the carrier claims agent.
When handling the unit, take into account the following:
1. Follow the instructions marked by the symbols on the package:
Fragile, handle the unit with care.
Keep the unit upright in order to avoid compressor damage.
Do not use straps to move the unit.
2. Lift the unit preferably with a fork-lift, a manual pallet mover or a
crane and belts.
3. When lifting the unit with a crane, always use protectors to prevent
belt damage and pay attention to the position of the unit’s centre of
gravity.
4. Bring the unit as close to its final installation position in its original
package to prevent damage during transport.
UNPACKING AND PLACING THE UNIT
1 Cut the straps and remove the cardboard box from the unit.
2 Remove the four screws fixing the unit to the pallet.
3 Lift the unit from the pallet and place it on its installation position.
4 Connect the air inlet (lower part of the unit) to the air inlet
ducting and the air outlet (upper part of the unit) to the air outlet
ducting. Always provide a flexible connection between the
ducting flanges of the unit and the ducts to prevent vibrations
and noise generation.
5 Fasten the unit in place using four anchor bolts.
6 Remove the upper and lower service plate.
7 Connect the drain outlet at one side to the drain. Provide a trap
with a minimum fall of 75 mm in the drain pipe to prevent that the
negative pressure, produced by the fan, disturbs the drain (refer
to figure in chapter "Selection of location" on page 3).
IMPORTANT INFORMATION REGARDING THE
REFRIGERANT USED
This product contains fluorinated greenhouse gases covered by the
Kyoto Protocol. Do not vent gases into the atmosphere.
Refrigerant type: R407C
GWP
(1)
value: 1652.5
(1)
GWP = global warming potential
The refrigerant quantity is indicated on the unit name plate.
75 mm
Ensure that a protective guard is installed in front of
the air outlet to prevent that the fan blades be
touched. The protection must comply with relevant
European and national regulations.
NOTE
When connecting the unit to the ducting, a pressure
drop will be created and the air flow will be reduced.
The total external pressure drop may not exceed
100 Pa for the EUWAC5 and 150 Pa for the
EUWAC8+10. (For external pressure drop calculation,
refer to "Annex II" on page 21)
The fan pulley has been factory set to work with an
external static pressure of 0 to 150 Pa for the 8 and
10 Hp models. Other pulley settings are possible for
lowering the airflow and thus reducing the sound level
of the unit. But lowering the airflow may lead to
reduced performance (refer to "Troubleshooting" on
page 17).
Also refer to "Annex III" on page 22 for the fan
characteristics.
