Daikin ER60MZY [10/14] Piping diagrams

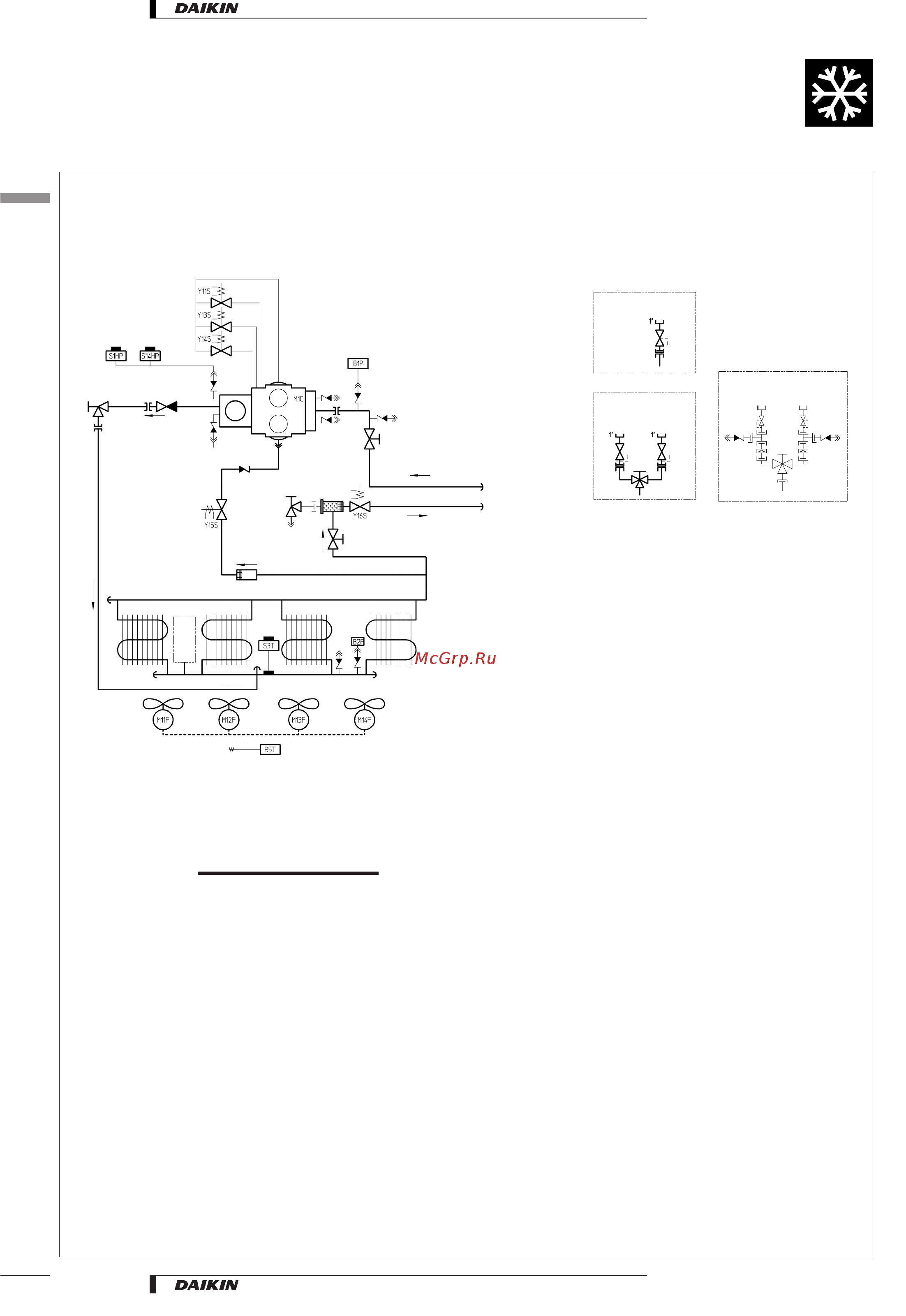

Piping diagrams

3TW54375-1A

ER40-60MZY

M11F Fan motor

M12F Fan motor

M13F Fan motor

M14F Fan motor

M1C Compressor motor 1

S1HP High pressure switch

S14HP High pressure switch

S3T Discharge temperature controller

R5T Ambient temperature sensor

B1P Low pressure transmitter

B2P High pressure transmitter

Y11S Unloader solenoid valve

Y13S Unloader solenoid valve

Y14S Unloader solenoid valve

Y15S Liquid injection solenoid valve

Y16S Liquid line solenoid valve

O Check valve

L Flare connection

M Screw connection

N Flange connection

Z Pinched pipe

P Spinned pipe

Service port

Condenser

Strainer

Liquid stop valve

Drier + charge

valve

Suction stop valve

(optional)

Gauge port

Service port

Safety valve

Safety valves

2. Dual shut off valve (op. 03)

Safety valves

1. STD

3. RLK

•

Remote evaporator • R-407C • ER40-60MZY

• Condensing Units
