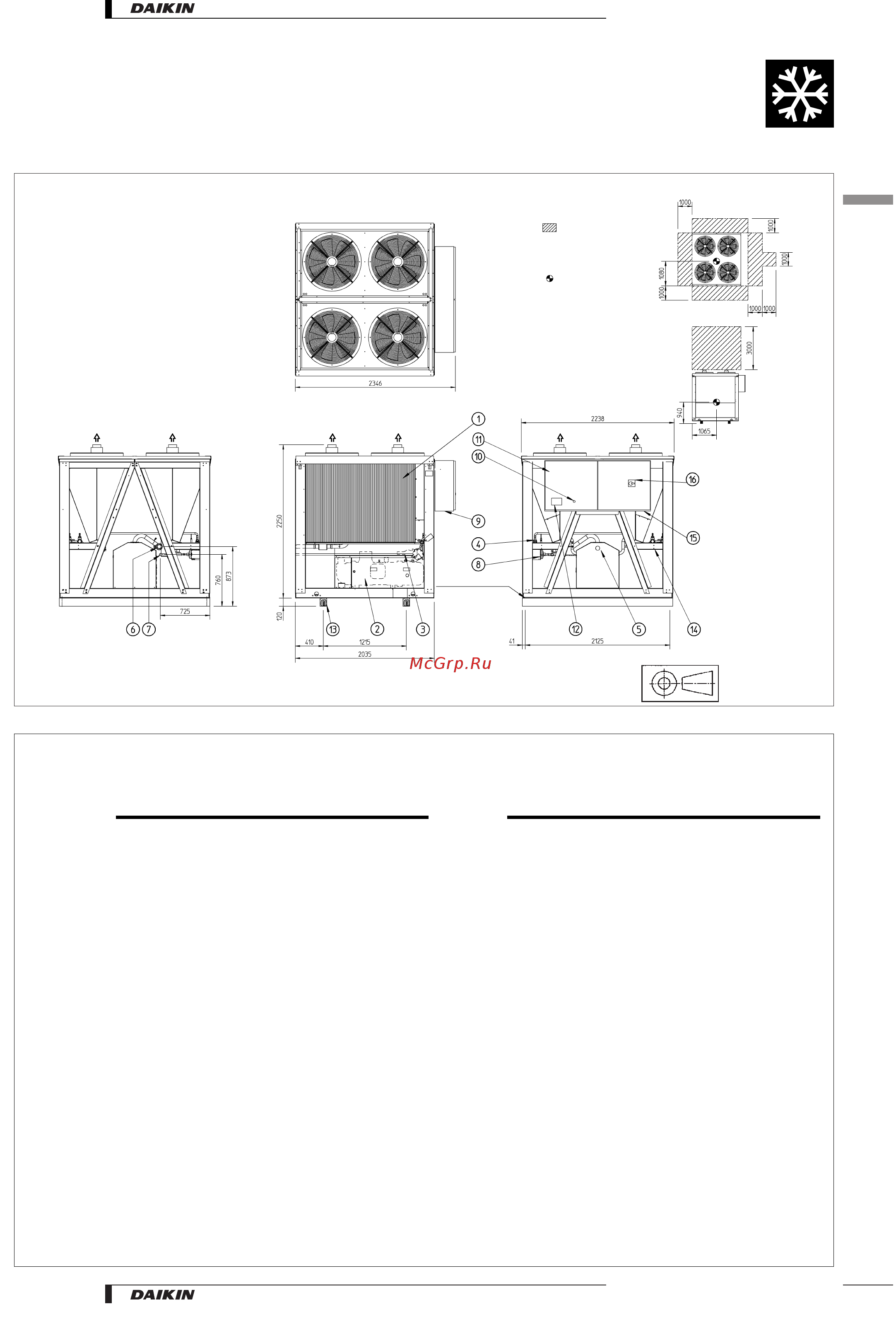

Dimensional drawings & centre of gravity

ER40-60MZY

3TW53474-1A

Air Air

Required space around the

unit for service and air

intake

4 x Hole for fixation J20

Center of gravity

Air Air

1 Condensor

2 Compressor

3 Discharge stop valve

4 Liquid stop valve

5 Suction stop valve (optional)

6 Suction line

7 Liquid line

8 Drier + charge valve

9 Power supply intake

10 Emergency stop

11 Switchbox

12 Digital display controller

13 Transport beam

14 Ambient temperature sensor

15 Field wiring intake

16 Main isolator switch (optional)

•

Remote evaporator • R-407C • ER40-60MZY

• Condensing Units
