9
Installation
9-1

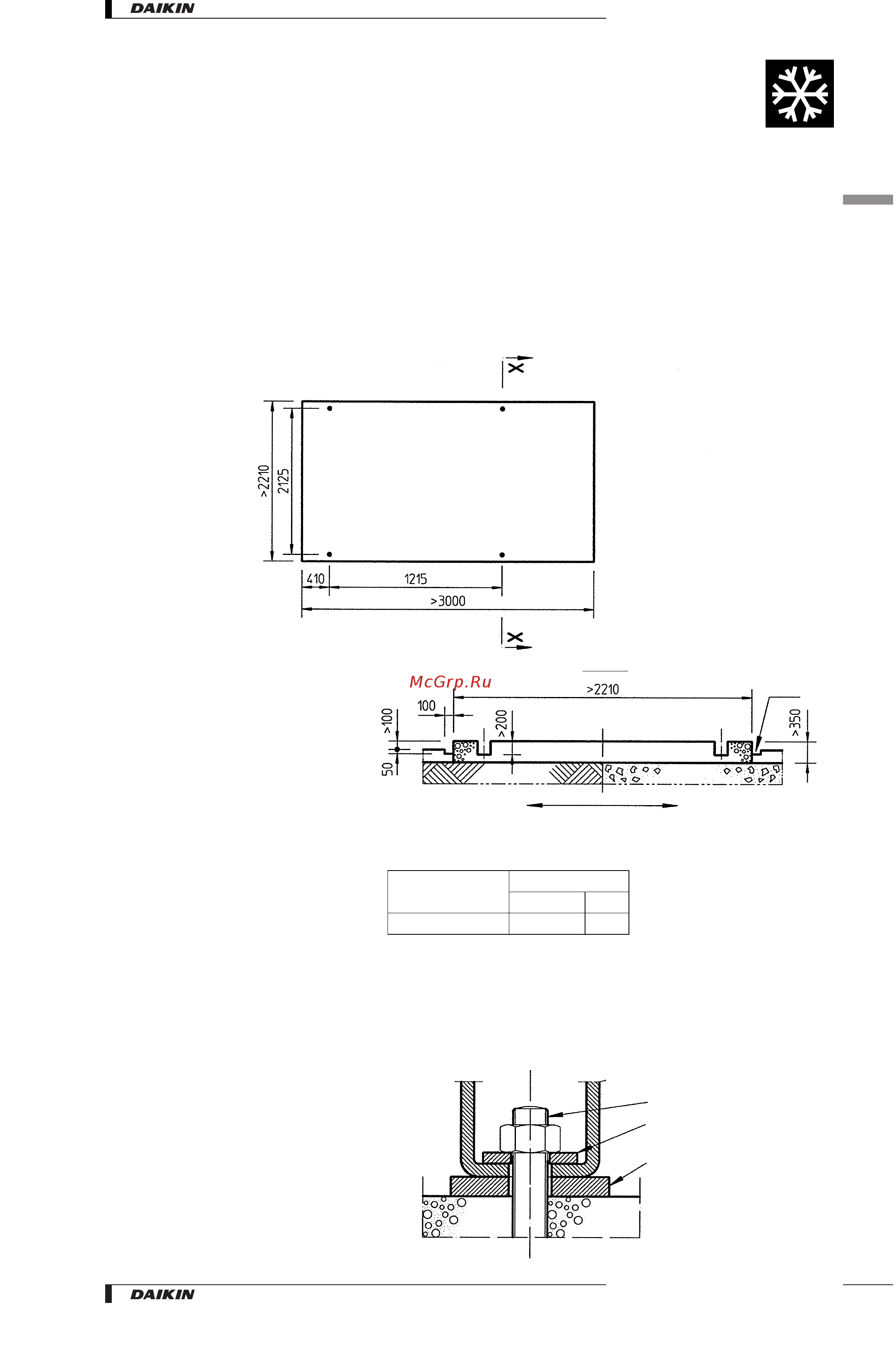

Fixation + foundation
1. The foundation is strong enough to support the weight of the unit and the floor is flat to prevent vibration and noise generation.
2. The space around the unit is adequate for servicing and the minimum space for air inlet and air outlet is available.
3. There is no danger of fire due to leakage of inflammable gas.
4. Ensure that water cannot cause any damage to the location in case it drips out the unit (e.g. in case of defrost).
5. Select the location of the unit in such a way that neither the discharged air nor the sound generated by the unit disturb anyone.
6. Make sure that the air inlet and outlet of the unit are not positioned towards the main wind direction. Frontal wind will disturb the
operation of the unit. If necessary, use a windscreen to block the wind.
MODEL
Anchor bolt
Size Qty.
ER*40-60MZY M16 x 200 4
Anchor bolt
Washer
Field supplied rubber plates, raw cork
or rubber sheet for better vibration
protection.
Unit = mm
Foundation is built on
concrete floor
Foundation is built on the
ground
Section X-X
Ditch
Fix anchor bolts into the concrete foundation. The concrete
foundation should be higher than the floor level by
approximately 100 mm for ease of plumbing work and better
drain.
Further, strength of the floor should be sufficient to support
the weight of concrete foundation and unit.
Make certain that the foundation surface is even and flat.
NOTES:
1. The measurement tabulated is based on the fact the base
is made in the ground or on a concrete floor. In case the
base is made on a rigid concrete floor, it is possible to
include thickness of concrete floor in that of the base.
2. In case a base is made on concrete floor, be sure to provide
a ditch as shown. It is important to extract drainage
regardless of wether a base is made in the ground or on
the concrete floor (Ditch → Sewerage).
3. Ingredient ratio of the concrete is cement: 1, sand: 2, gravel:
3, which is standard and insert iron bars of J10 at every
interval of 300 mm. The edge of the concrete base should
be planed.
Switchbox side
ER*40-50-60MZY
4TW53379-1
•
Remote evaporator • R-407C • ER40-60MZY
9
9-1
13
