2.4 Make Resistance Measurements
Turn the rotary switch to the corresponding symbol for the
measurement you would like to perform.
CAUTION:
Always connect the test leads to the instrument
inputs first before connecting the DUT to avoid
potential shock hazard.
Follow these steps to make a measurement.
1. Connect the black test lead to the COM input. Note
that the measurement voltage polarity is positive on
COM input.
2. Connect the red test lead to the VΩHz%ns input.
3. Probe with the test leads to the DUT and take the
measured reading on display.

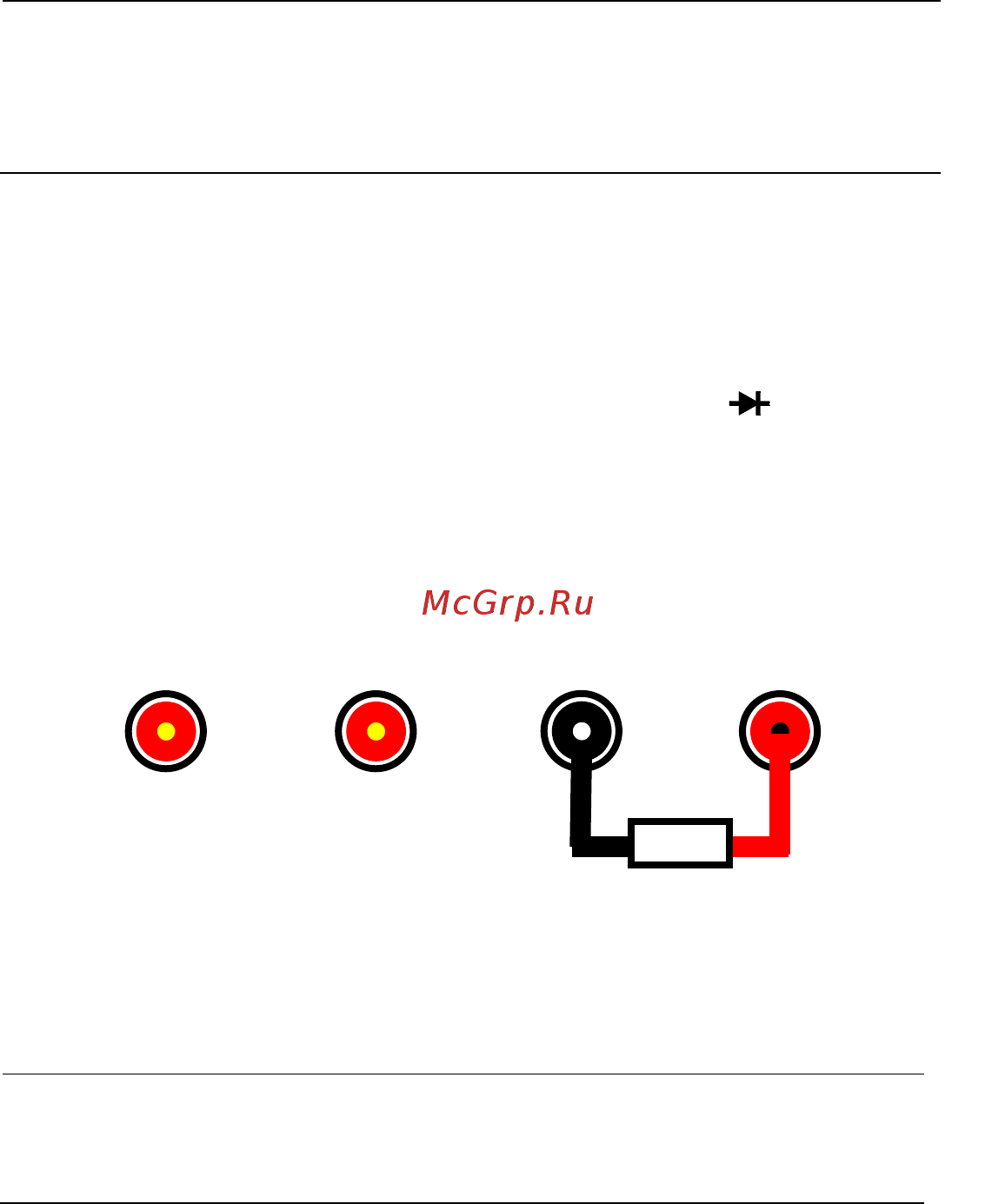

Figure 2 - Connection for Resistance Measurement
WARNING:
Do not apply more than 1000 V DC across the
terminals or they will be damaged.
