GDM-350B User Manual
8
The Meter Structure

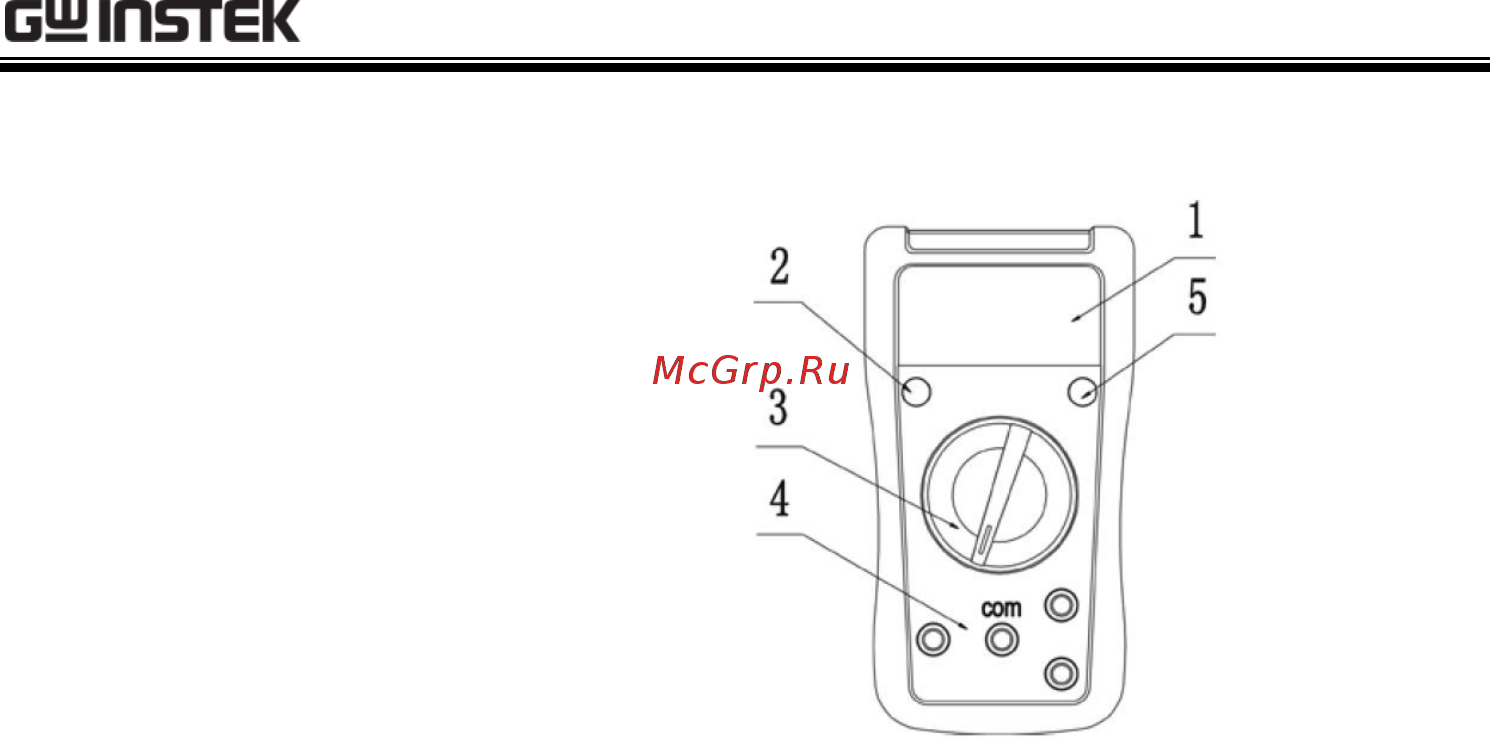

(see diagram 1)
1. LCD Display
2. Power Button
3. Rotary Switch
4. Input Terminals
5. HOLD Button
diagram 1
