METRIX MTX3290 [20/63] Functional description continued

Functional description

20 6,000- and 60,000-count digital multimeters

Functional description (continued)

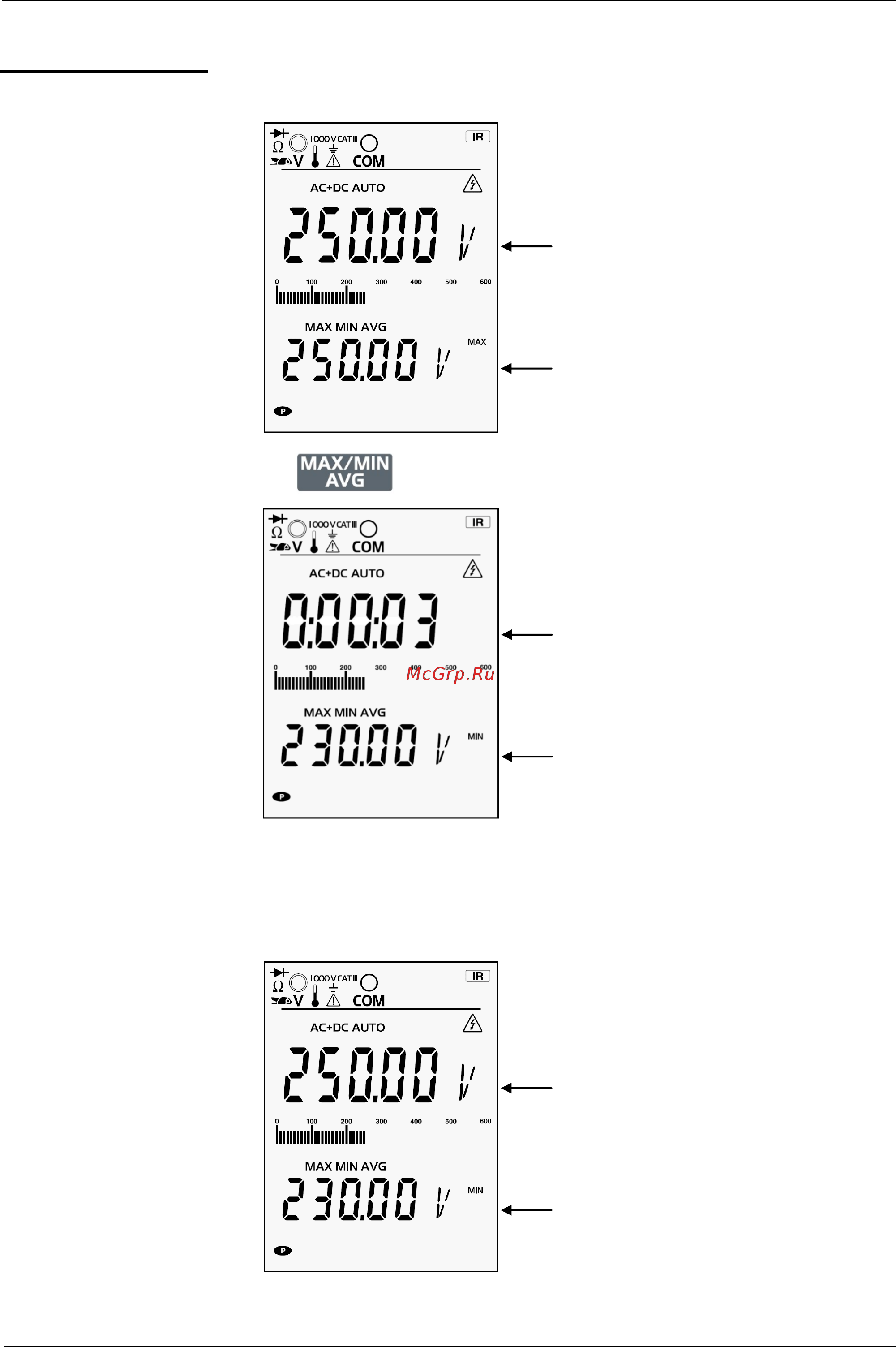

The display then becomes:

Present value of the signal

MAX value

for the MIN value:

press :

 Ex.: 3s

Momentary screen (4s) indicating the

time-stamped max. value, if the value

changes or if the value is looked up.

h: min: sec

MIN value

The display then becomes:

Present value of the signal

MIN value
