METRIX MTX3290 [9/63] Description of the instruments continued

Description of the instruments

6,000- and 60,000-count digital multimeters 9

Description of the instruments (continued)

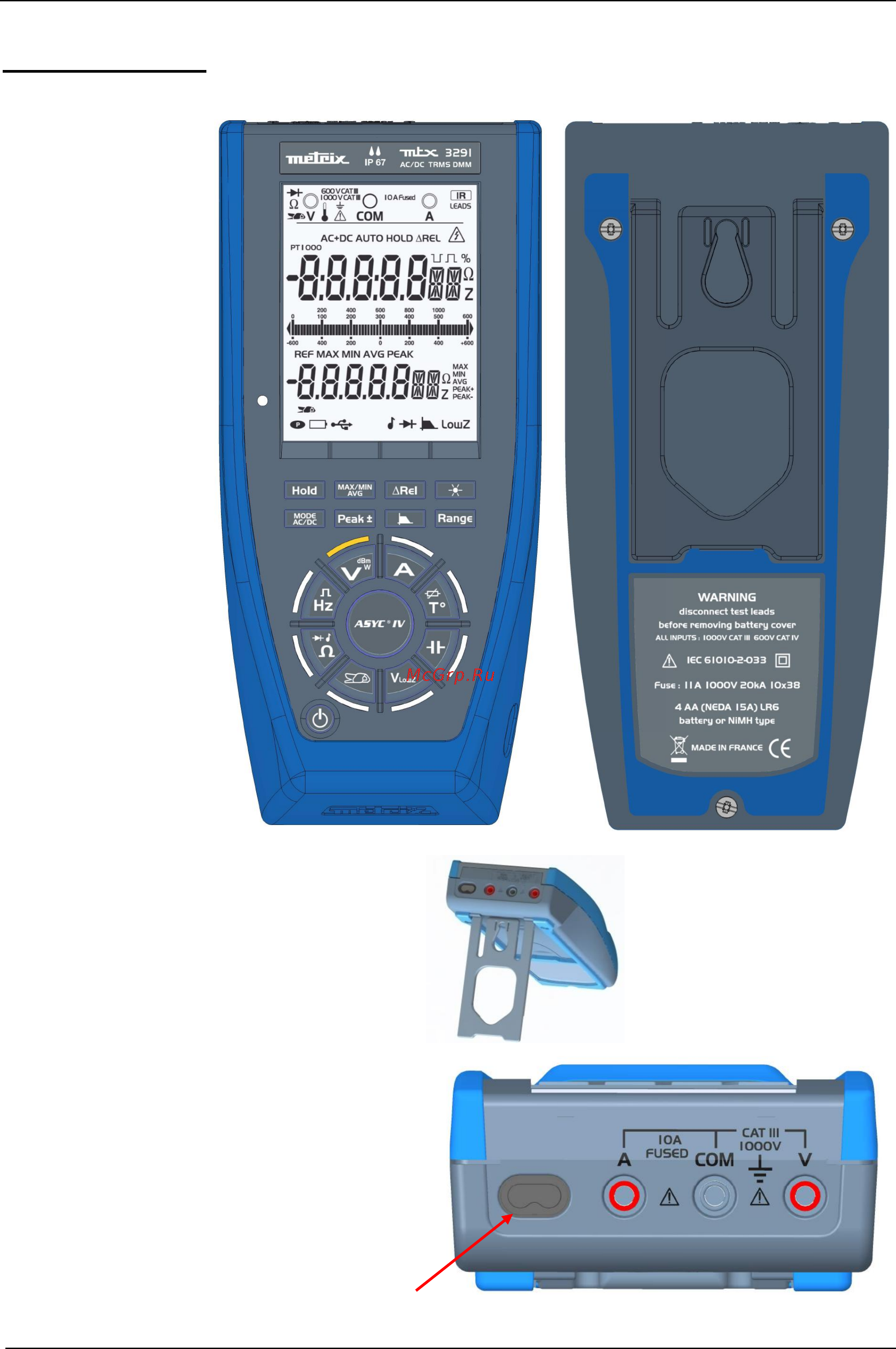

MTX 3291

Frontal panel

Back

Prop

Terminal block

Optical connector: active!
