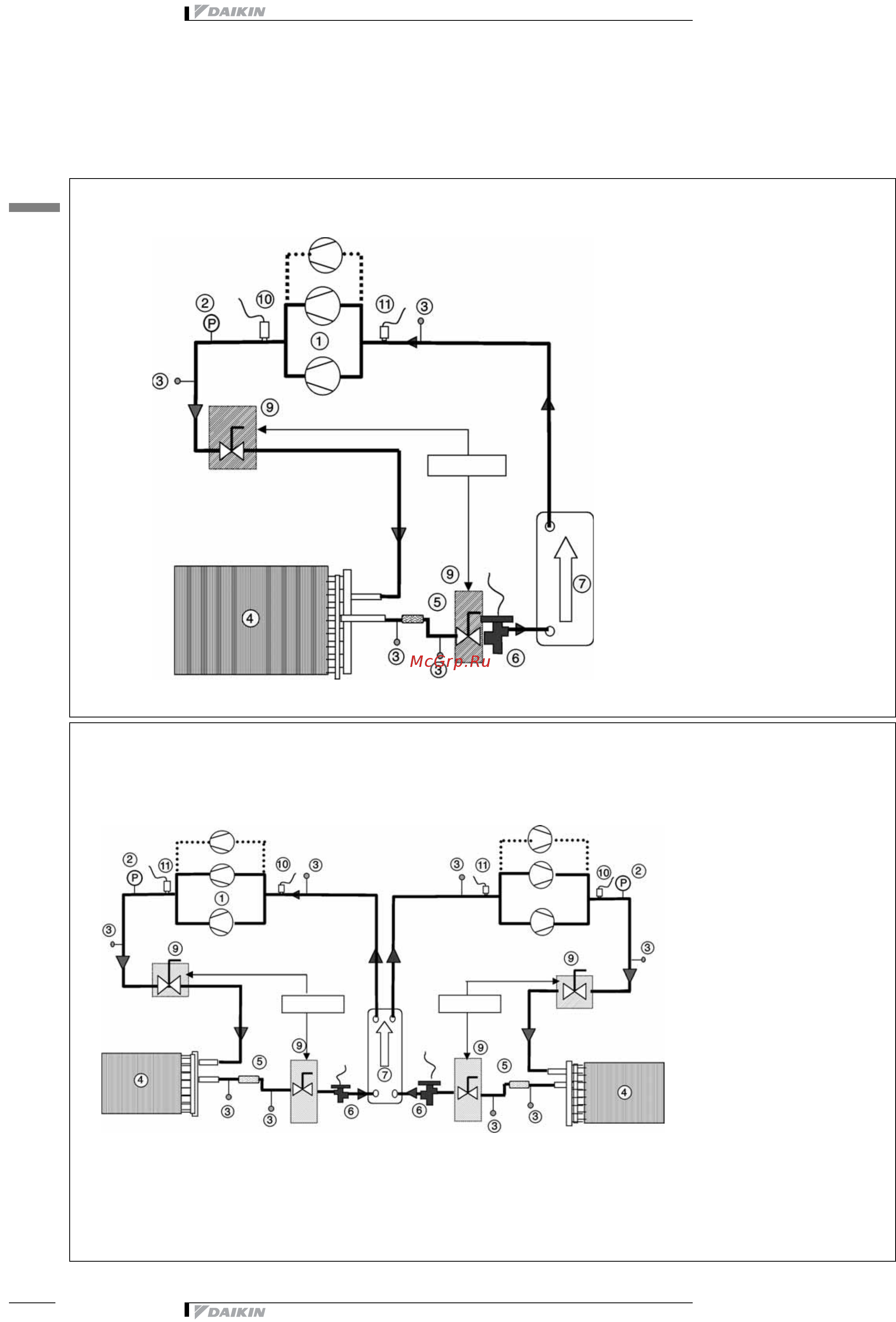

7 Piping diagram
Rev. D
EUWA*030-049BZ6Y
j
1
Compressor
j
2
High pressure pressostat
j
3
Schraeder valve
j
4
Condensing coil
j
5
Filter drier
j
6
Expansion valve
j
7
Brased plate heat exchanger
j
8
j
9
Stop valve (STEK option)
j
10
High pressure transducer
j
11
Low pressure transducer
STEK option
Rev. D
EUWA*050-095BZ6Y
j
1
Compressor
j
2
High pressure pressostat
j
3
Schraeder valve
j
4
Condensing coil
j
5
Filter drier
j
6
Expansion valve
j
7
Brased plate heat exchanger
j
8
j
9
Stop valve (STEK option)
j
10
High pressure transducer
j
11
Low pressure transducer
STEK option
