1.3 THE DISPLAY UNIT

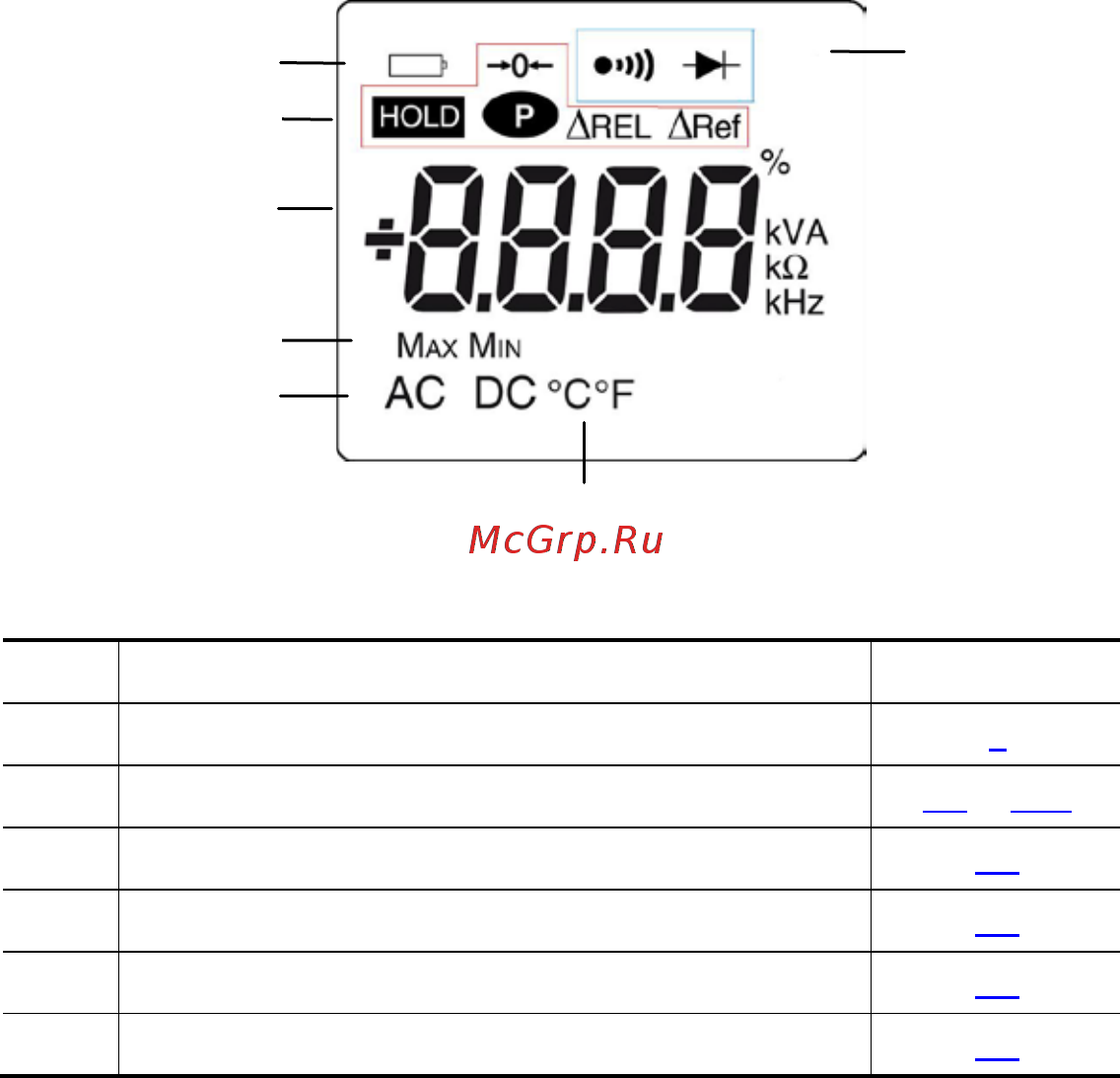

Here is the display unit of the clamp multimeter:

Figure 4 : the display unit

Item Function See §

1 Display of the modes selected (keys) 2

2 Display of the measurement value and unit 3.5 to 3.12

3 Display of the MAX/MIN modes 2.4

4 Type of measurement (AC or DC) 2.2

5 Display of the selected modes (switch) 1.1

6 Spent battery indication 5.2
