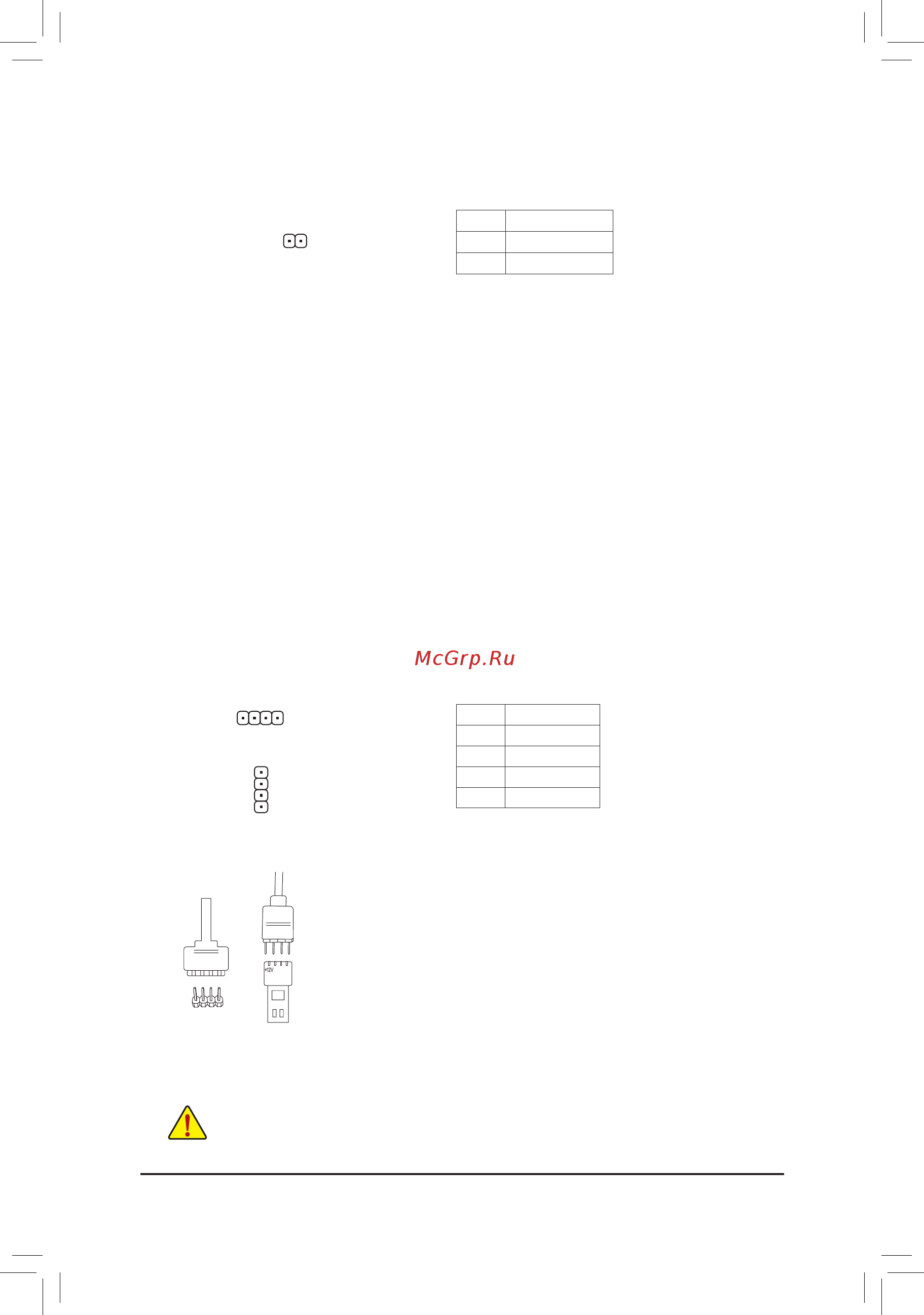

7) EC_TEMP1/EC_TEMP2 (Temperature Sensor Headers)
Connect the thermistor cables to the headers for temperature detection.
Pin No. Denition
1 SENSOR IN
2 GND
1
8) LED_C1/LED_C2 (RGB LED Strip Headers)
The headers can be used to connect a standard 5050 RGB LED strip (12V/G/R/B), with maximum power
rating of 2A (12V) and maximum length of 2m.
Pin No. Denition
1 12V
2 G
3 R
4 B
Before installing the devices, be sure to turn off the devices and your computer. Unplug the power
cord from the power outlet to prevent damage to the devices.
1
1
LED_C1
LED_C2
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
Connect one end of the RGB LED strip extension cable to the header
and the other end to your RGB LED strip. The black wire (marked
with a triangle on the plug) of the extension cable must be connected
to Pin 1 (12V) of this header. The 12V pin (marked with an arrow) on
the other end of the extension cable must be lined up with the 12V of
the LED strip. Be careful with the connection orientation of the LED
strip; incorrect connection may lead to the damage of the LED strip.
12V
1
RGB LED
Strip
12VRGB
BG12VR
12VRGB
BG12VR
- 18 -
