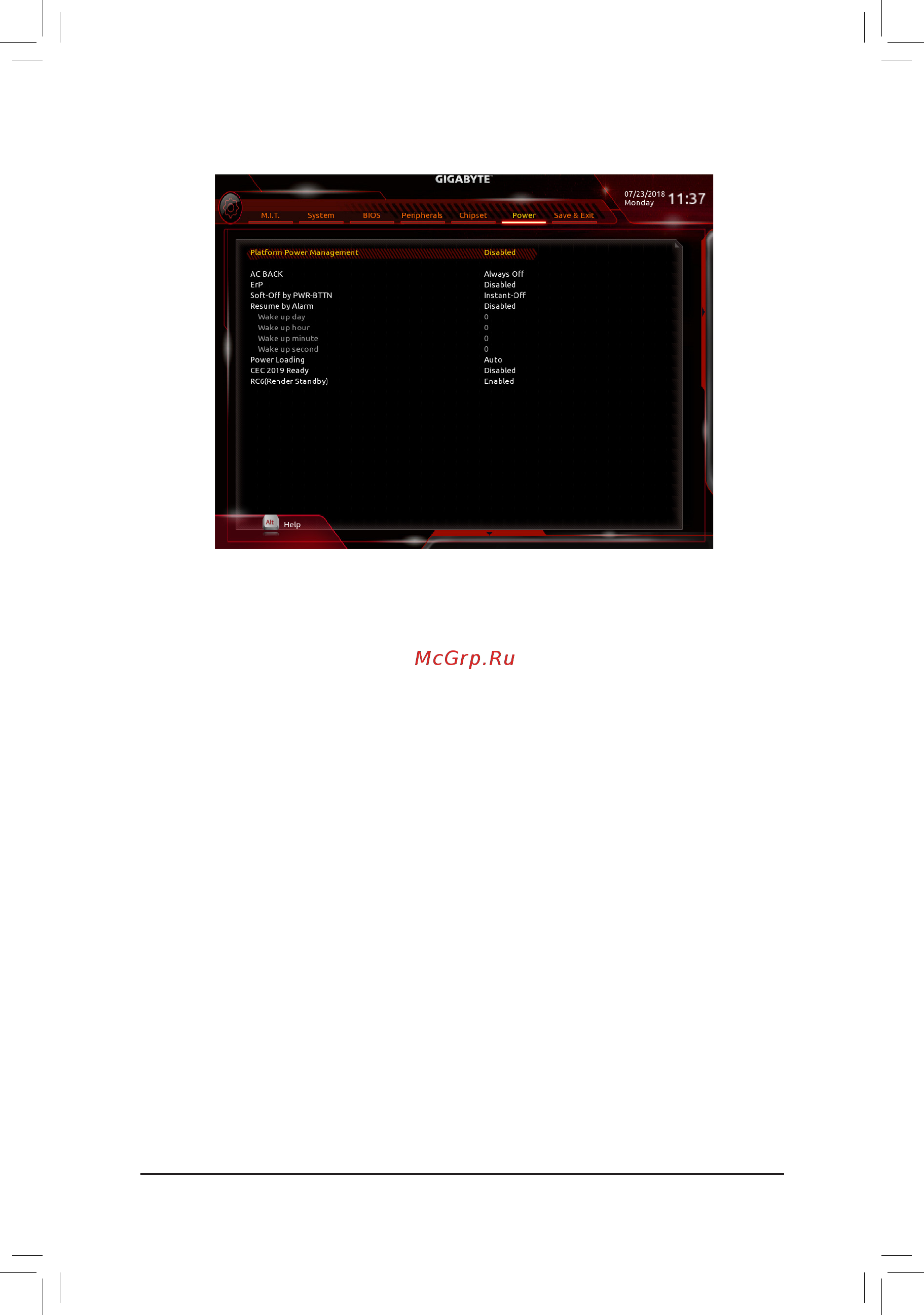

2-8 Power

& Platform Power Management

Enables or disables the Active State Power Management function (ASPM). (Default: Disabled)

& PEG ASPM

 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtotheCPUPEGbus.This itemis

congurableonlywhenPlatform Power Management is set to Enabled. (Default: Disabled)

& PCH ASPM

 AllowsyoutoconguretheASPMmodeforthedeviceconnectedtoChipset'sPCIExpressbus.Thisitem

iscongurableonlywhenPlatform Power Management is set to Enabled. (Default: Disabled)

& DMI ASPM

 AllowsyoutoconguretheASPMmodeforbothCPUsideandChipsetsideoftheDMIlink.Thisitemis

congurableonlywhenPlatform Power Management is set to Enabled. (Default: Disabled)

& AC BACK

Determines the state of the system after the return of power from an AC power loss.

Memory The system returns to its last known awake state upon the return of the AC power.

Always On The system is turned on upon the return of the AC power.

Always Off The system stays off upon the return of the AC power. (Default)

& ErP

Determines whether to let the system consume least power in S5 (shutdown) state. (Default: Disabled)

Note: When this item is set to Enabled, the following functions will become unavailable: Resume by Alarm,

power on by mouse, and power on by keyboard.

& Soft-Off by PWR-BTTN

 ConguresthewaytoturnoffthecomputerinMS-DOSmodeusingthepowerbutton.

Instant-Off Press the power button and then the system will be turned off instantly. (Default)

Delay 4 Sec. Press and hold the power button for 4 seconds to turn off the system. If the power

button is pressed for less than 4 seconds, the system will enter suspend mode.

- 41 -
