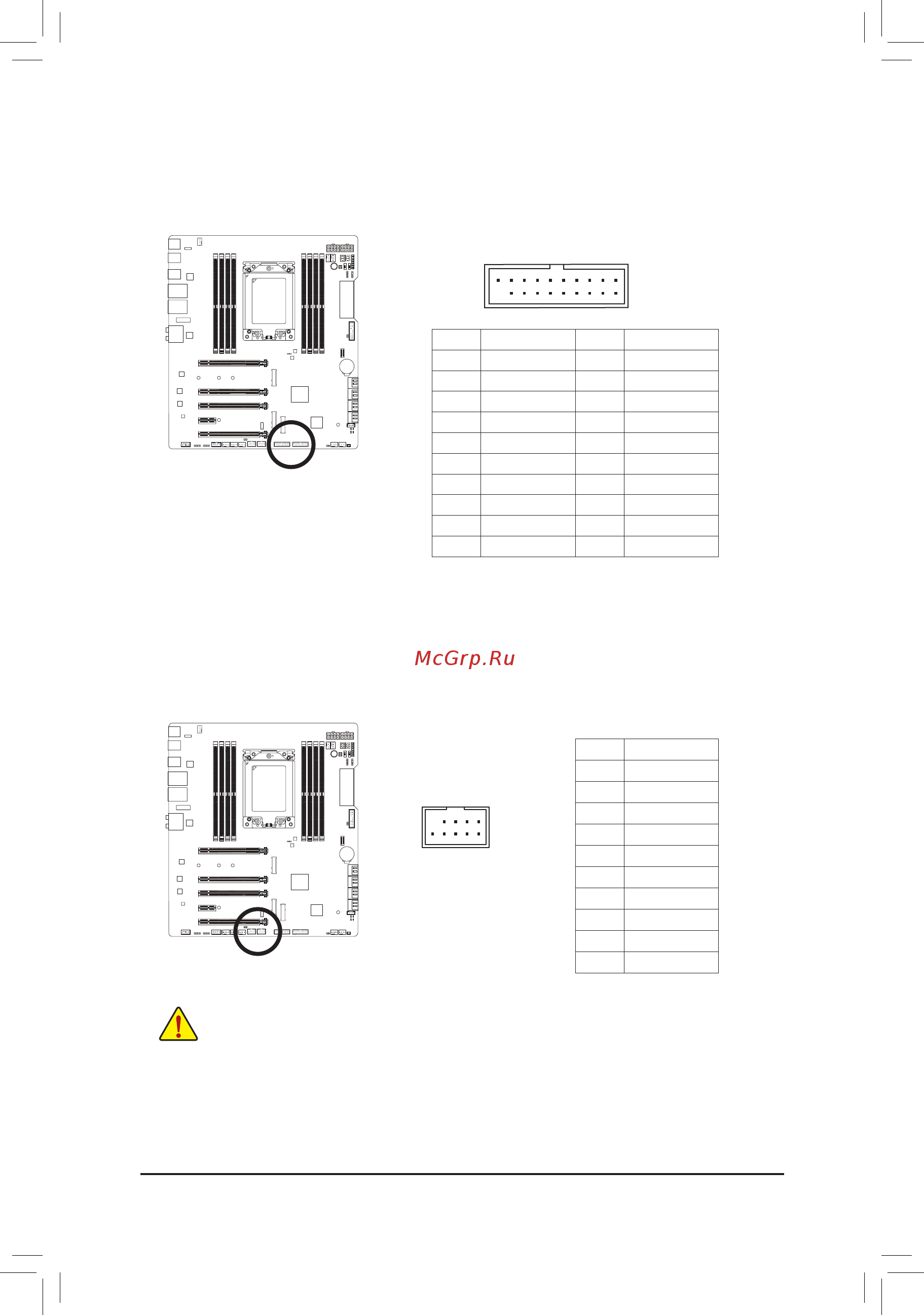

- 34 -
Hardware Installation
15) F_U32_1/F_U32_2 (USB 3.2 Gen 1 Headers)
TheheadersconformtoUSB3.2Gen1andUSB2.0specicationandeachheadercanprovidetwoUSB
ports. For purchasing the optional 3.5" front panel that provides two USB 3.2 Gen 1 ports, please contact
the local dealer.
Pin No. Denition Pin No. Denition
1 VBUS 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 GND
4 GND 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 GND
7 GND 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS
10 NC 20 No Pin
16) F_USB1/F_USB2 (USB 2.0/1.1 Headers)
TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan
optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.
Pin No. Denition
1 Power (5V)
2 Power (5V)
3 USB DX-
4 USB DY-
5 USB DX+
6 USB DY+
7 GND
8 GND
9 No Pin
10 NC
• Only the USB ports routed to the F_U32_1 connector support USB TurboCharger. Enabling this
function requires software support. The maximum power output of this connector may vary de-
pending on the power management mechanism for the USB cable and charging device used. For
more information on USB TurboCharger, refer to the instructions in Chapter 5, "Unique Features."
• Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB 2.0/1.1 header.
• Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord
from the power outlet to prevent damage to the USB bracket.
