Gigabyte TRX40 AORUS MASTER (rev. 1.0) [46/104] Drivestrength databusconfiguration

BIOS Setup

- 46 -

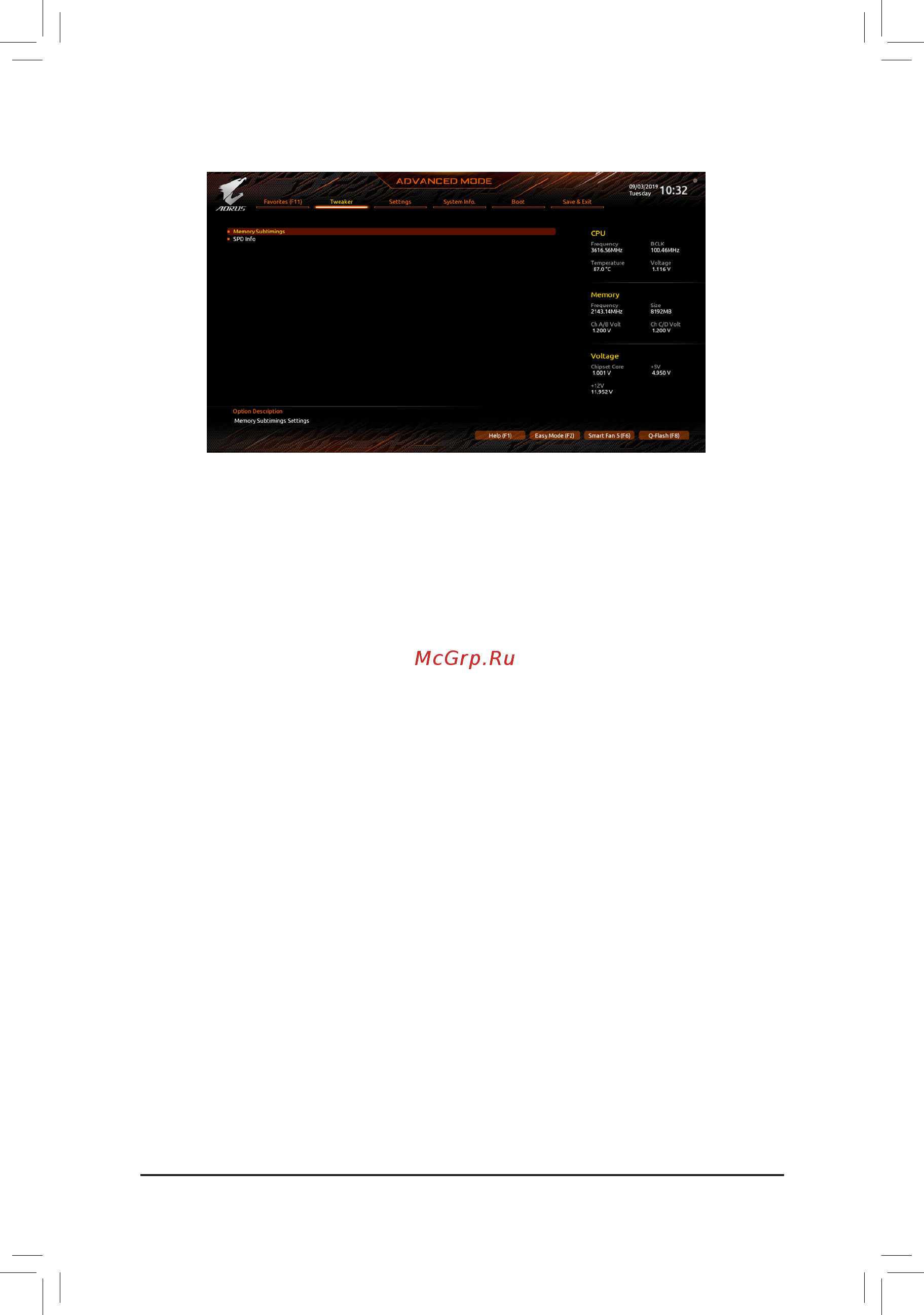

 Advanced Memory Settings

 Memory Subtimings

d Standard Timing Control, Advanced Timing Control, CAD Bus Setup Timing, CAD Bus

DriveStrength,DataBusConguration

 Thesesectionsprovidememorytimingsettings.Therespectivetimingsettingscreensarecongurable

only when Memory Timing Mode is set to Manual. Note: Your system may become unstable or fail to boot

after you make changes on the memory timings. If this occurs, please reset the board to default values by

loading optimized defaults or clearing the CMOS values.

 SPD Info

Displays information on the installed memory.

& CPU Vcore/Dynamic Vcore(DVID)/VCORE SOC/Dynamic VCORE SOC(DVID)/CPU

VDD18/CPU VDDP/PCH_CLDO/PM_1VSOC/PM_1V8/DRAM Voltage (CH A/B)/DDRVPP

Voltage (CH A/B)/DRAM Termination (CH A/B)/DRAM Voltage (CH C/D)/DDRVPP Voltage

(CH C/D)/DRAM Termination (CH C/D)

These items allow you to adjust the CPU Vcore and memory voltages.
