Daikin EUWL12KZW [16/21] Piping diagrams

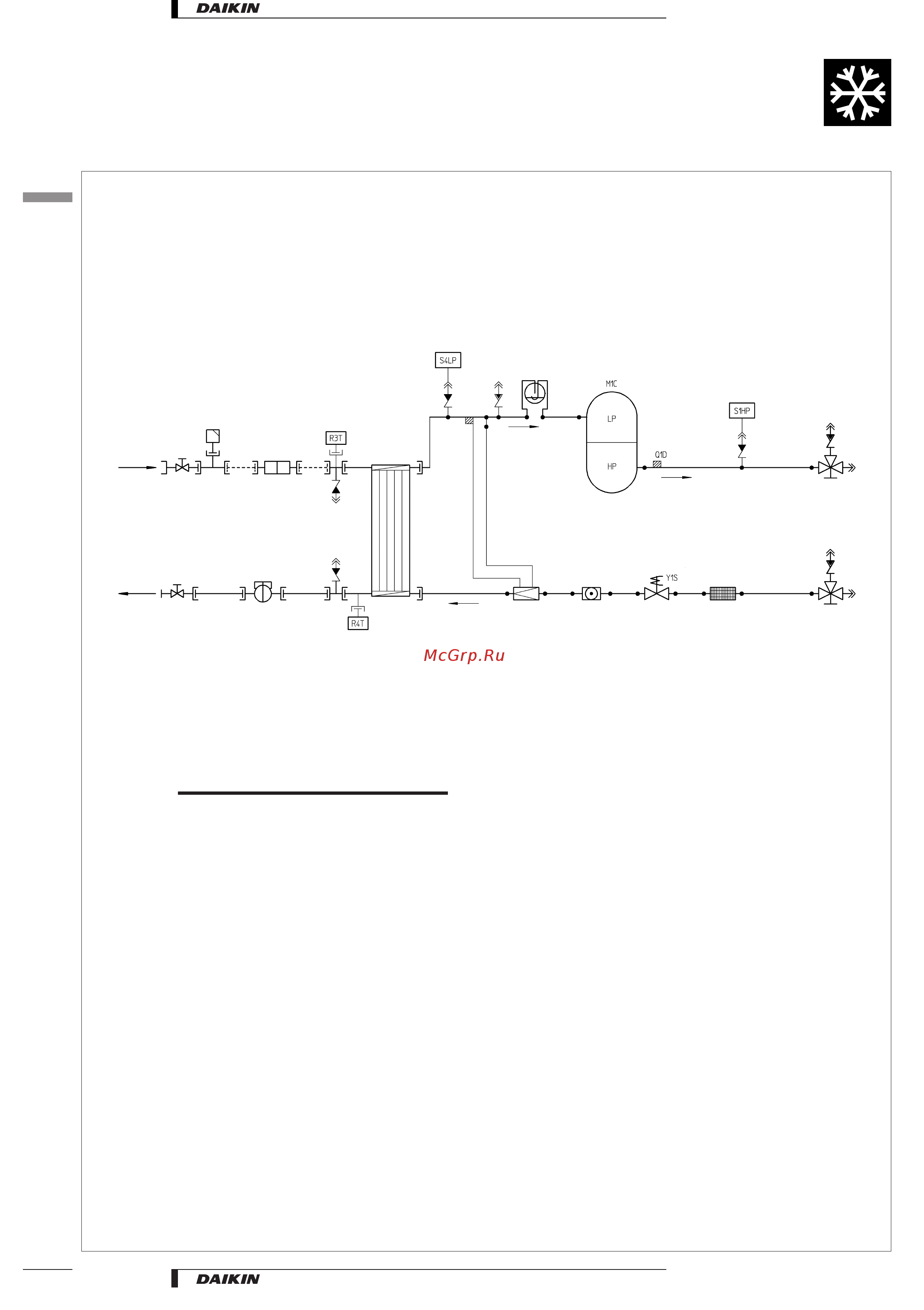

Piping diagrams

3TW55255-2B

------ Field piping

O Check valve

L Flare connection

M Screw connection

N Flange connection

Z Pinched pipe

P Spinned pipe

EUWL5-12KZW

Y1S Liquid solenoid valve

M1C Compressor motor 1

R4T Freeze-up protection

S1HP High pressure switch

S4LP Low pressure switch

R3T Inlet water evap. temp. sensor

Q1D Discharge temperature controller

Accumulator

Evaporator

Expansion valve

Water outlet

Water inlet

Filter

Shut off valve

Discharge stop

valve

Liquid stop valve

Air

purge

Filter

Flow switch

Shut off

valve

Sight glass with

moist indicator

Liquid solenoid

valve

•

Remote condenser • R-407C • EUWL5-24KZW

• Applied Systems • Chillers
