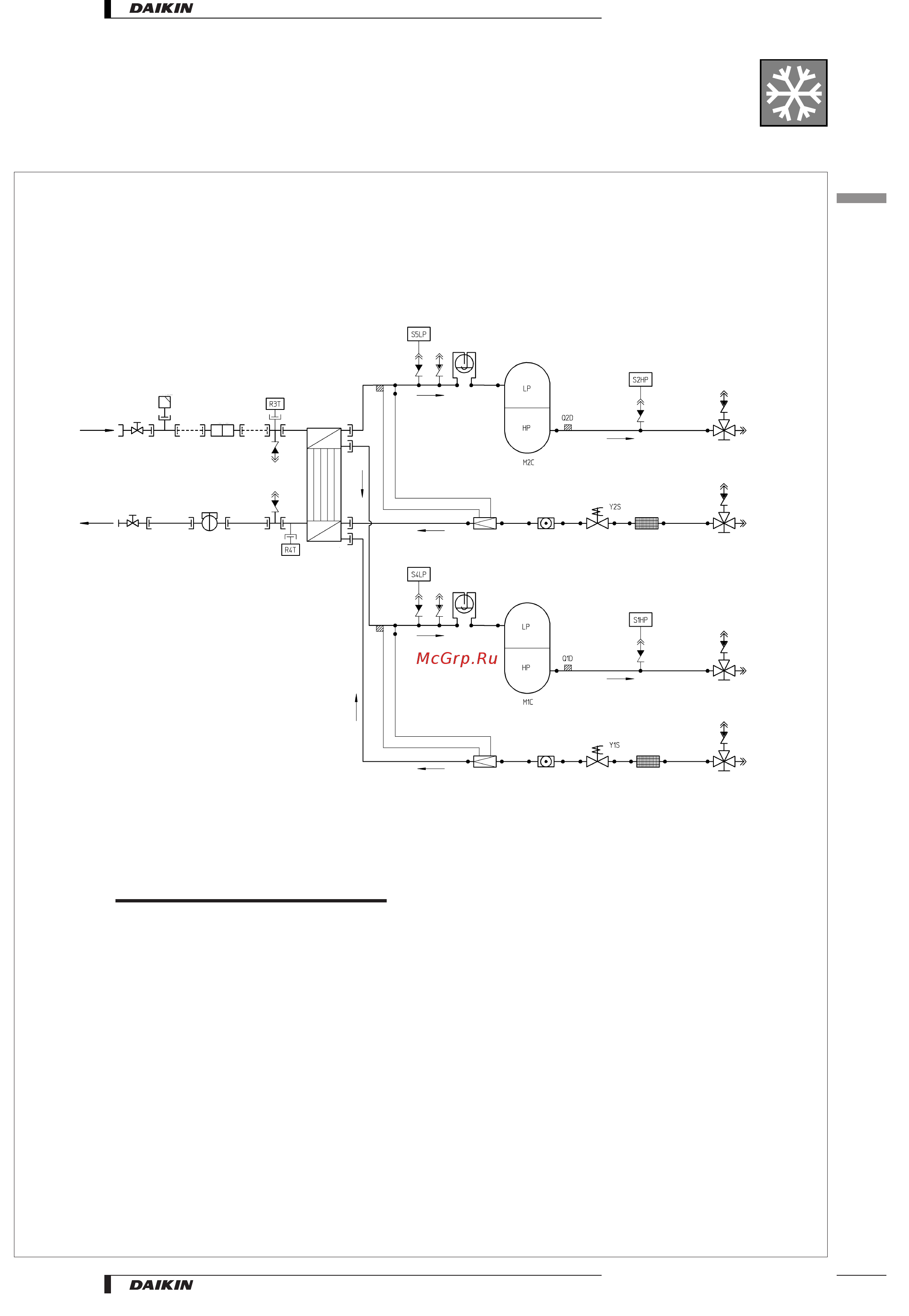

Daikin EUWL12KZW [17/21] Piping diagrams
![Daikin EUWL12KZW [17/21] Piping diagrams](/views2/1669406/page17/bg11.png)
3TW55305-2B
------ Field piping
O Check valve
L Flare connection
M Screw connection
N Flange connection
Z Pinched pipe
P Spinned pipe
EUWL16-24KZW
Y1S Liquid solenoid valve
Y2S Liquid solenoid valve
M1C Compressor motor
M2C Compressor motor
R4T Freeze-up protection
R5T Inlet water cond. temp. sensor
S1HP High pressure switch
S2HP High pressure switch
S4LP Low pressure switch
S5LP Low pressure switch
R3T Inlet water evap. temp. sensor
Q1D Discharge temperature controller
Q2D Discharge temperature controller
Liquid solenoid
valve
Evaporator
Filter
Water outlet
Water inlet
Discharge stop valve
Liquid stop valve
Sight glass with
moist indicator
Flow switch
Shut off
valve
Shut off valve
Liquid stop valve
Sight glass with
moist indicator
Air
purge
Discharge stop valve
Filter
Filter
Expansion valve
Expansion valve
Accumulator
Liquid solenoid
valve
Accumulator
•
Remote condenser • R-407C • EUWL5-24KZW
8
Piping diagrams
1
8
15
• Applied Systems • Chillers
