We provide specification, drawing, test report and more
information, please visit our website —
http://www.meanwell.com
48hrs delivery—
We keep enough stock for 95% of standard models at our
2400m
2
warehouse. We can arrange prompt delivery within
48hrs.
Best products also need best service.
We have authorized distributors all over the world. They have
sufficient stock for your prompt delivery. Also, they can offer
you technical support & RMA services. Please contact your
local distributors for more product information. You can also
contact us at
info@meanwell.com for information of your local
distributors.
26

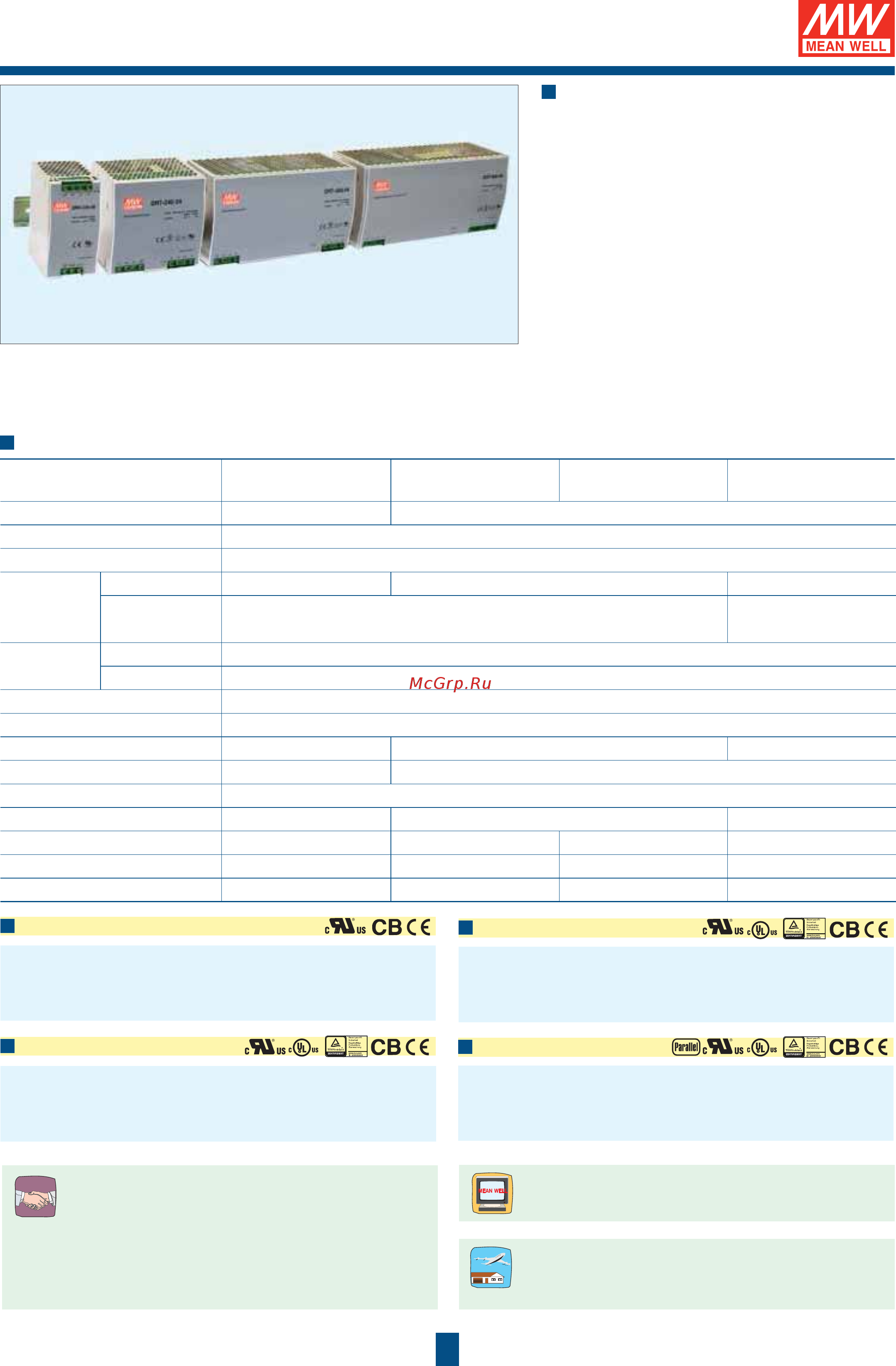

DIN Series
120~960W High Input Voltage
Features
• Input 340~550VAC, 3-phase
(2-phase for DRH-120)
• Protections: Short circuit / Overload /
Over voltage / Over temperature
• Built-in constant current limiting circuit
• Cooling by free air convection
• DC output voltage adjustable
• Can be installed on DIN rail TS-35 / 7.5 or 15
• UL508 (industrial control equipment) listed
(240~960W)
• EN61000-6-2 (EN50082-2) industrial immunity level
• Optional parallel function (1+1) (960W only)
• LED indicator for power on
• 3 years warranty
DRH-120
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. DRH-120 DRT-240 DRT-480 DRT-960
AC input voltage range 340~550VAC, 2-phase 340~550VAC, 3-phase (two phase operation possible)
AC inrush current (max.) Cold start, 50A at 400VAC
DC adjustment range 24V: 24~28V, 48V: 48~55V
Overload
protection
Range 105%~160% 105%~150% 105%~125%
Type Constant current limiting, auto-recovery
Constant current limiting,
delay shut off after 3 sec.
Over voltage
protection
Range 24V: 30~36V, 48V: 59~66V
Type Shut off, AC recycle to re-start
Over temperature protection Shut down output voltage, recovers automatically after temperature goes down
Withstand voltage I/P - O/P: 3kVAC, I/P - FG: 1.5kVAC, O/P - FG: 0.5kVAC, 1 minute
Working temperature -20~+60°C -20~+70°C -20~+60°C
Safety standards UL60950-1 approved UL508, UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 heavy industry level
Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles I/P: 4 poles, O/P: 4 poles I/P: 4 poles, O/P: 6 poles
Dimension (WxHxD)(mm) 65.5x125.2x100 125.5x125.2x100 227x125.2x100 276x125.2x100
Case No. 921A 922A 930A 934
Packing 20pcs / 16.0kg 12pcs / 16.6kg 6pcs / 16.0kg 4pcs / 14.2kg
DRH-120 (2-Phase)
DRT-480 (3-Phase)
DRT-240
DRT-480
DRT-960
Model No. Output Tol. R&N Effi.
DRH-120-24 24V, 0~5.0A ±1% 80mV 85%
DRH-120-48 48V, 0~2.5A ±1% 80mV 86%
DRT-240 (3-Phase)
Model No. Output Tol. R&N Effi.
DRT-240-24 24V, 0~10A ±1% 80mV 89%
DRT-240-48 48V, 0~5.0A ±1% 80mV 89%
Model No. Output Tol. R&N Effi.
DRT-480-24 24V, 0~20A ±1% 80mV 89%
DRT-480-48 48V, 0~10A ±1% 80mV 90%
DRT-960 (3-Phase)
Model No. Output Tol. R&N Effi.
DRT-960-24 24V, 0~40A ±1% 80mV 91%
DRT-960-48 48V, 0~20A ±1% 80mV 92%
