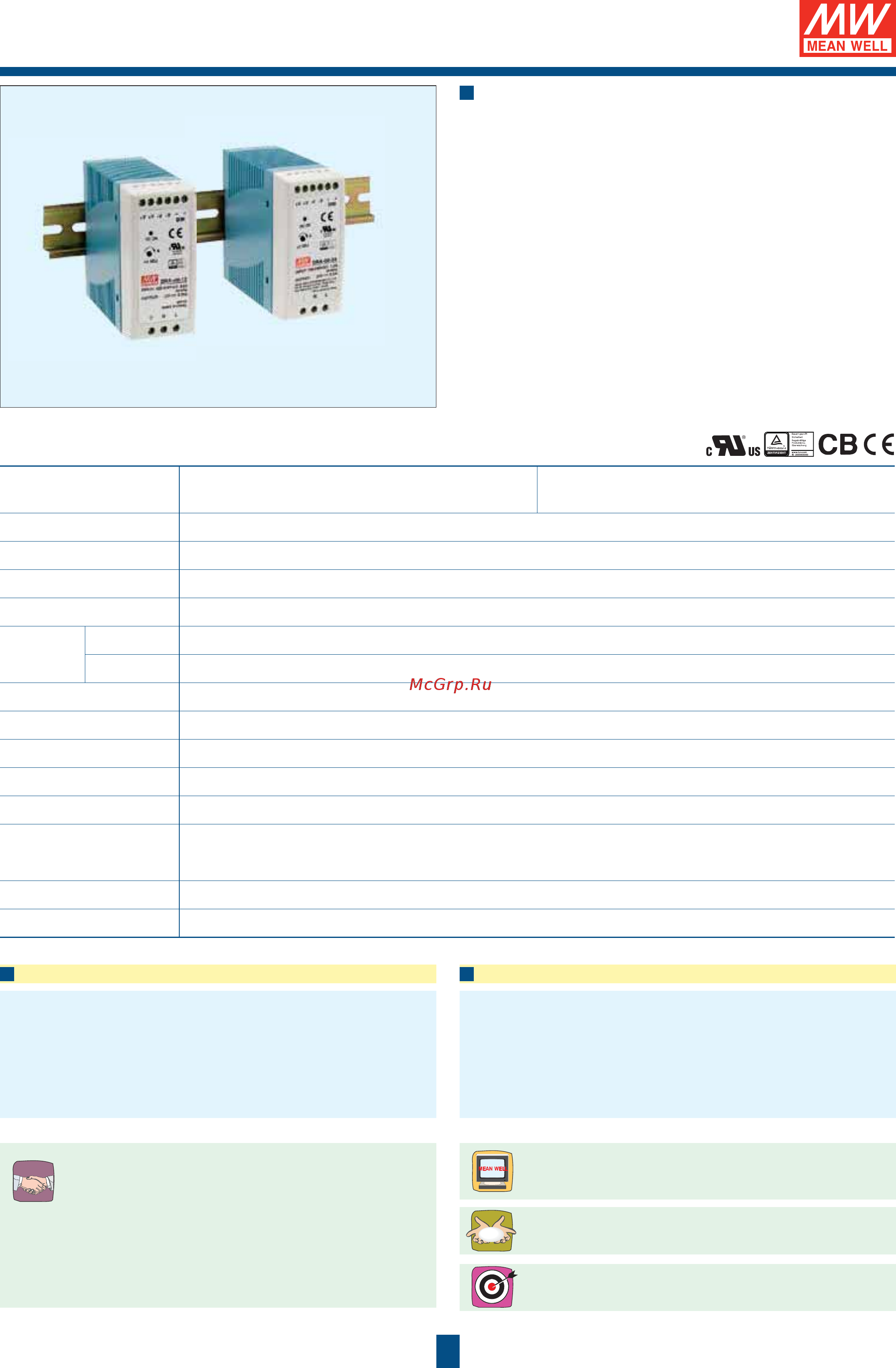

DIN Series
40W & 60W Output Current Programmable
• Universal AC input / Full range
• Io can be trimmed 10~100% by 1~10Vdc, PWM signal or
resistance
• Installed on DIN rail TS-35 / 7.5 or 15
• Protections: Short circuit / Overload / Over voltage
• Pass LPS
• Cooling by free air convection
• DC output voltage adjustable
• LED indicator for power on
• Suitable for machine vision inspection system and plant
cultivation application
• 3 years warranty
Model No. Output Tol. R&N Effi.
DRA-40-12 12V, 0~3.34A ±1.0% 120mV 85%
DRA-40-24 24V, 0~1.7A ±1.0% 150mV 87%
Model No. Output Tol. R&N Effi.
DRA-60-12 12V, 0~5A ±1.0% 120mV 85%
DRA-60-24 24V, 0~2.5A ±1.0% 150mV 87%
DRA-40 DRA-60
Model No. DRA-40 DRA-60
AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 60A at 230VAC
DC adjustment range 12V: 12~15V, 24V: 24~30V
Current adjustment range 10%~100% rated output current adjustable by 1~10VDCc, PWM signal or resistance
Overload
protection
Range 95%~108%
Type Constant current limiting, auto-recovery
Over voltage protection 120%~155% rated output power, shut down o/p voltage, re-power on to recover
Withstand voltage I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -30~+70°C (refer to output derating curve)
Safety standards UL60950-1, TUV EN60950-1 approved
EMC standards EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11, EN61204-3
Connection
(screw DIN terminal)
I/P: 3 poles, O/P: 6 poles screw DIN terminal
Case No. 962A
Dimension (WxHxD)(mm) 40x 90x 100
40W DRA-40 60W DRA-60
