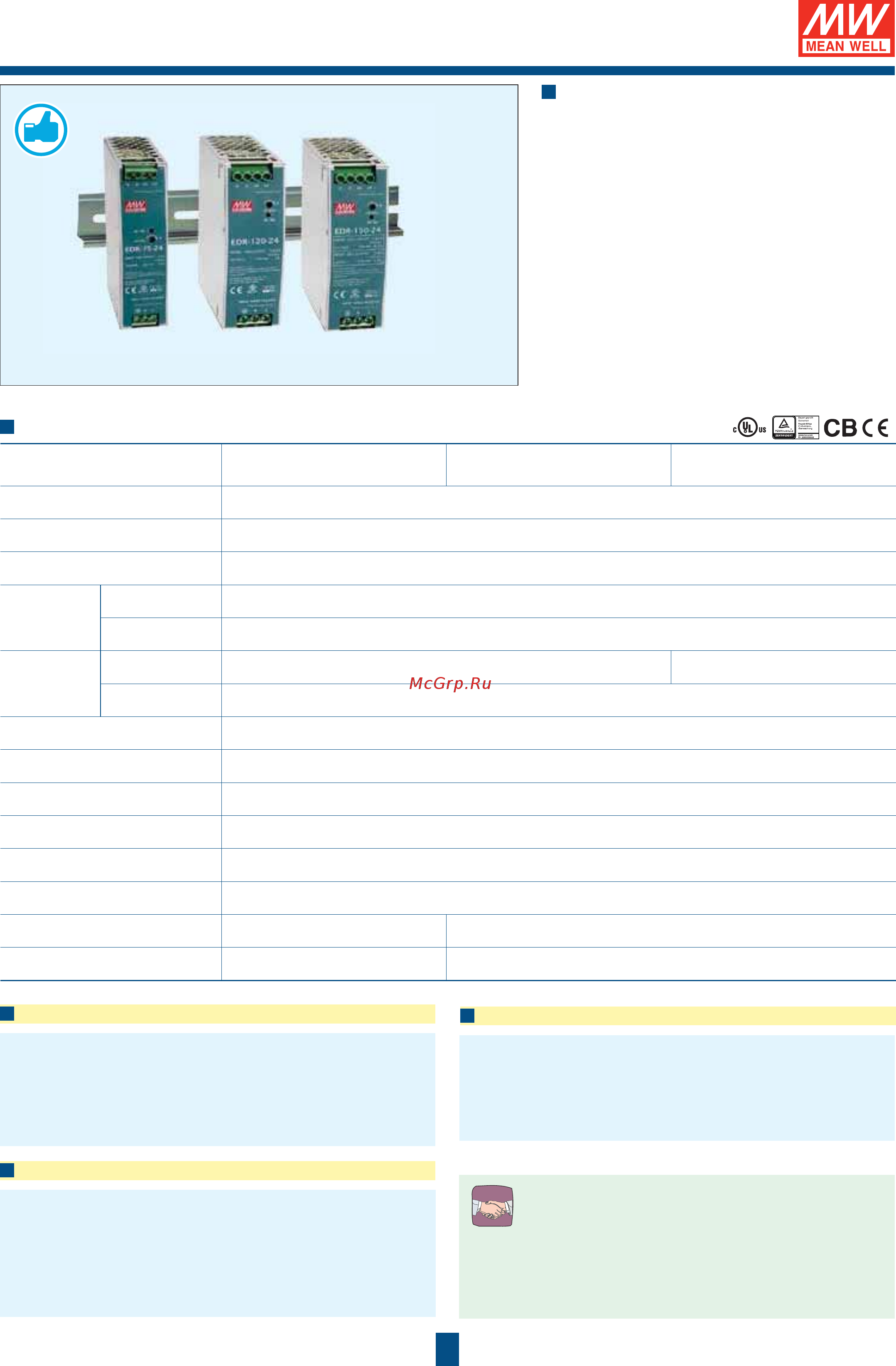

27
DIN Series
75~150W Slim and Economical
Features
• Universal AC input / Full range
• Protections: Short circuit / Overload /
Over voltage / Over temperature
• Cooling by free air convection
• DC output voltage adjustable
• Can be installed on DIN rail TS-35 / 7.5 or 15
• UL508 (industrial control equipment) listed
• EN61000-6-2 (EN50082-2) industrial immunity level
• Low cost
• 2 years warranty
General Specification (Please refer to www.meanwell.com for detail spec.)
Model No. EDR-75 EDR-120 EDR-150
AC input voltage range 90~264VAC; 127~370VDC
AC inrush current (max.) Cold start, 35A at 230VAC
DC adjustment range 12V: 12~14V, 24V: 24~28V, 48V: 48~55V
Overload
protection
Range 105%~130%
Type Constant current limiting, auto-recovery
Over voltage
protection
Range 12V: 14~17V, 24V: 29~33V, 48V: 56~65V 24V: 29~33V
Type
Shut down o/p voltage, re-power on to recover
Over temperature protection
Shut down o/p voltage, re-power on to recover
Withstand voltage
I/P-O/P: 3kVAC, I/P-FG: 2kVAC, O/P-FG: 0.5kVAC
Working temperature -20~+60°C (refer to output derating curve)
Safety standards UL508, TUV EN60950-1 approved
EMC standards EN55032 classA, EN61000-3-2(125W for EDR-150),3, EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2)
Connection (screw DIN terminal) I/P: 3 poles, O/P: 4 poles
Dimension (WxHxD)(mm) 32x 125.2x 102 40x 125.2x 113.5
Case No. 221B 992D
75W EDR-75
120W EDR-120
150W EDR-150
Model No. Output Tol. R&N Effi.
EDR-75-12 12V, 0~6.3A ±2.0% 80mV 85.5%
EDR-75-24 24V, 0~3.2A ±1.0% 120mV 87.5%
EDR-75-48 48V, 0~1.6A ±1.0% 150mV 88.5%
Model No. Output Tol. R&N Effi.
EDR-120-12 12V, 0~10A ±2.0% 100mV 85.0%
EDR-120-24 24V, 0~5A ±1.0% 120mV 87.5%
EDR-120-48 48V, 0~2.5A ±1.0% 150mV 88.5%
Model No.
Output
(230VAC/115VAC)
Tol. R&N Effi.
EDR-150-24 24V, 0~6.5A / 0~5.2A ±1.0% 150mV 87%
