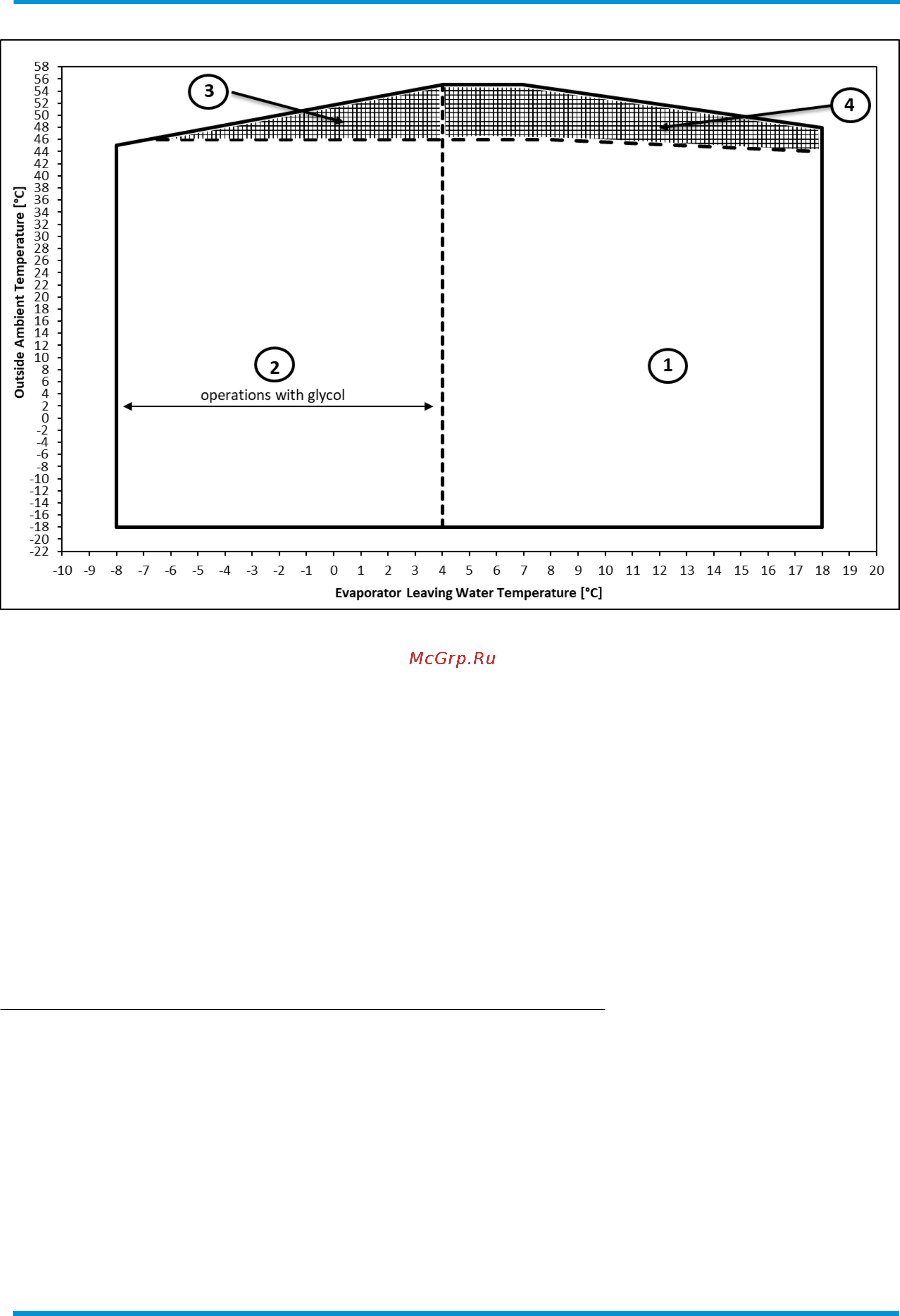

OPERATING LIMITS

EWAH~TZ P-B- (PLATINUM SERIES)

In order to operate the following options must be included according to the specific operating area:

Ref. 1: standard unit (no options are required to operate in this area)

Ref. 2: standard unit + opt. 08 (Brine) (chiller may not unload to minimum load)

Ref. 3: contact factory

Ref. 4: standard unit + opt. 142 (HIGH AMBIENT KIT)

NOTE:

The above graph refers to the unit operating at full load. Unit may be able to operate outside the above

envelope with compressors unloading. Please contact factory for further details.

For operation with EWLT below 4°C, the unit must operate with glycol mixture. The glycol percentage must

be provide according to the minimum ELWT needed.

The above graphic represents a guideline about the operating limits of the range. Please refer to the latest

Chiller Selection Software (CSS) for real operating limits working conditions for each size.

In area 2 and 3 chiller may not unload to the minimum load.

In area 3 and 4 chiller may run at part load. Refer to latest CSS for specific working conditions for each size.

Note: Unit selected with opt.08 either opt.142 needs to be ordered with such options.
