Daikin EWAH170TZ-SLB1 [92/102] Dimensional drawing
![Daikin EWAH170TZ-SLB1 [92/102] Dimensional drawing](/views2/1672263/page92/bg5c.png)
91/100

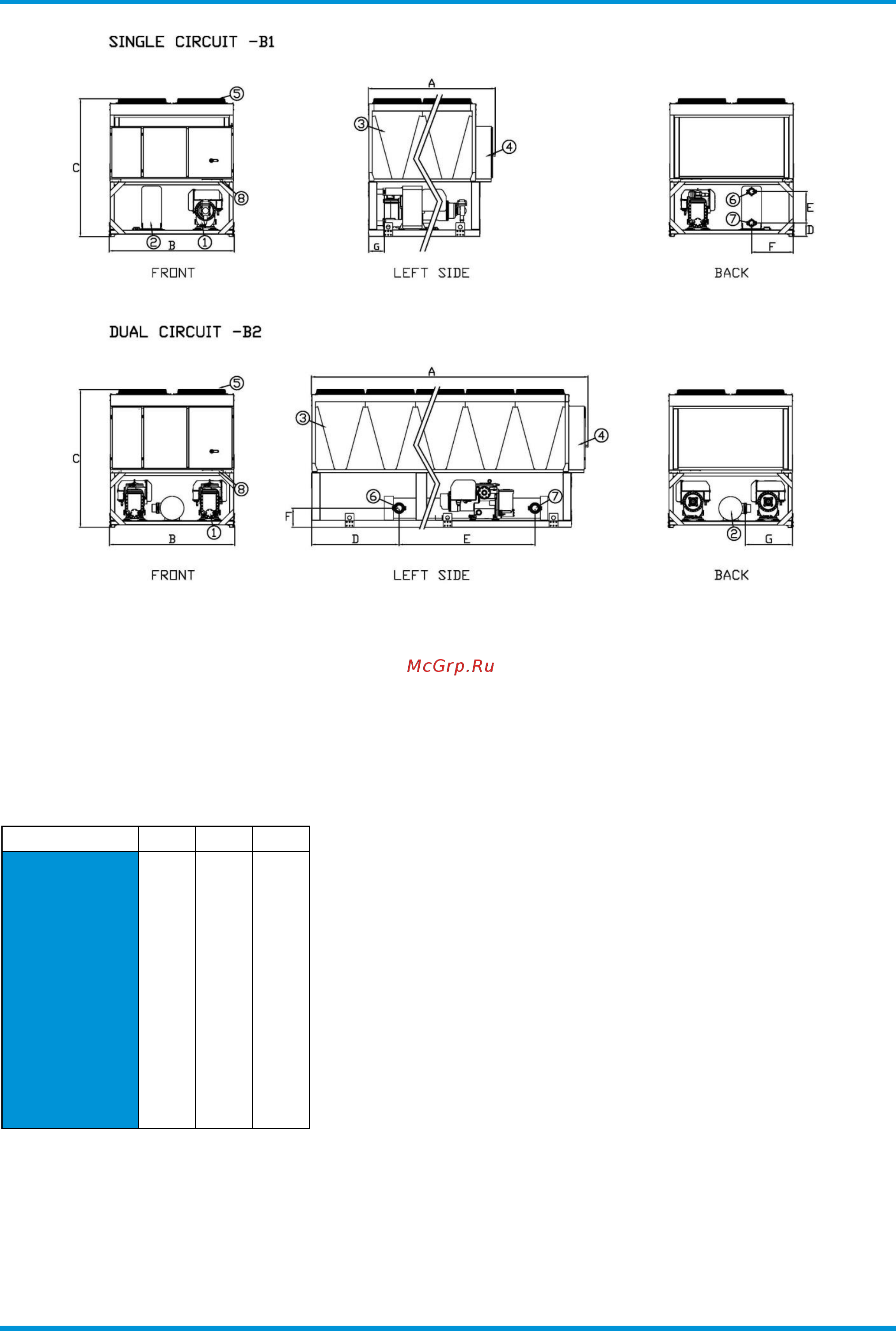

DIMENSIONAL DRAWING
LEGEND
1.
COMPRESSOR
2.
EVAPORATOR
3.
CONDENSER COIL
4.
ELECTRICAL PANEL
5.
FAN
6.
EVAPORATOR WATER INLET
7.
EVAPORATOR WATER OUTLET
8.
SLOT FOR POWER AND CONTROL PANEL CONNECTION
note: the above drawings are not contractually binding. For the design of installation refer to the dedicated dimensional drawing available from
the factory on request. The data are subject to change without notice.
MODEL
A
B
C
EWAH180TZXRB1
3231
2282
2540
EWAH220TZXRB1
4131
2282
2540
EWAH270TZXRB1
3231
2282
2540
EWAH300TZXRB1
4131
2282
2540
EWAH350TZXRB2
5887
2282
2540
EWAH390TZXRB2
5887
2282
2540
EWAH430TZXRB2
6786
2282
2540
EWAH480TZXRB2
7684
2282
2540
EWAH580TZXRB2
6877
2282
2540
EWAH620TZXRB2
7787
2282
2540
EWAH670TZXRB2
7787
2282
2540
EWAH710TZXRB2
8687
2282
2540
EWAH760TZXRB2
9587
2282
2540
EWAH820TZXRB2
9587
2282
2540
EWAH930TZXRB2
11387
2282
2540
EWAH990TZXRB2
11387
2282
2540
