83/100
OPTIONS (TECHNICAL DATA)

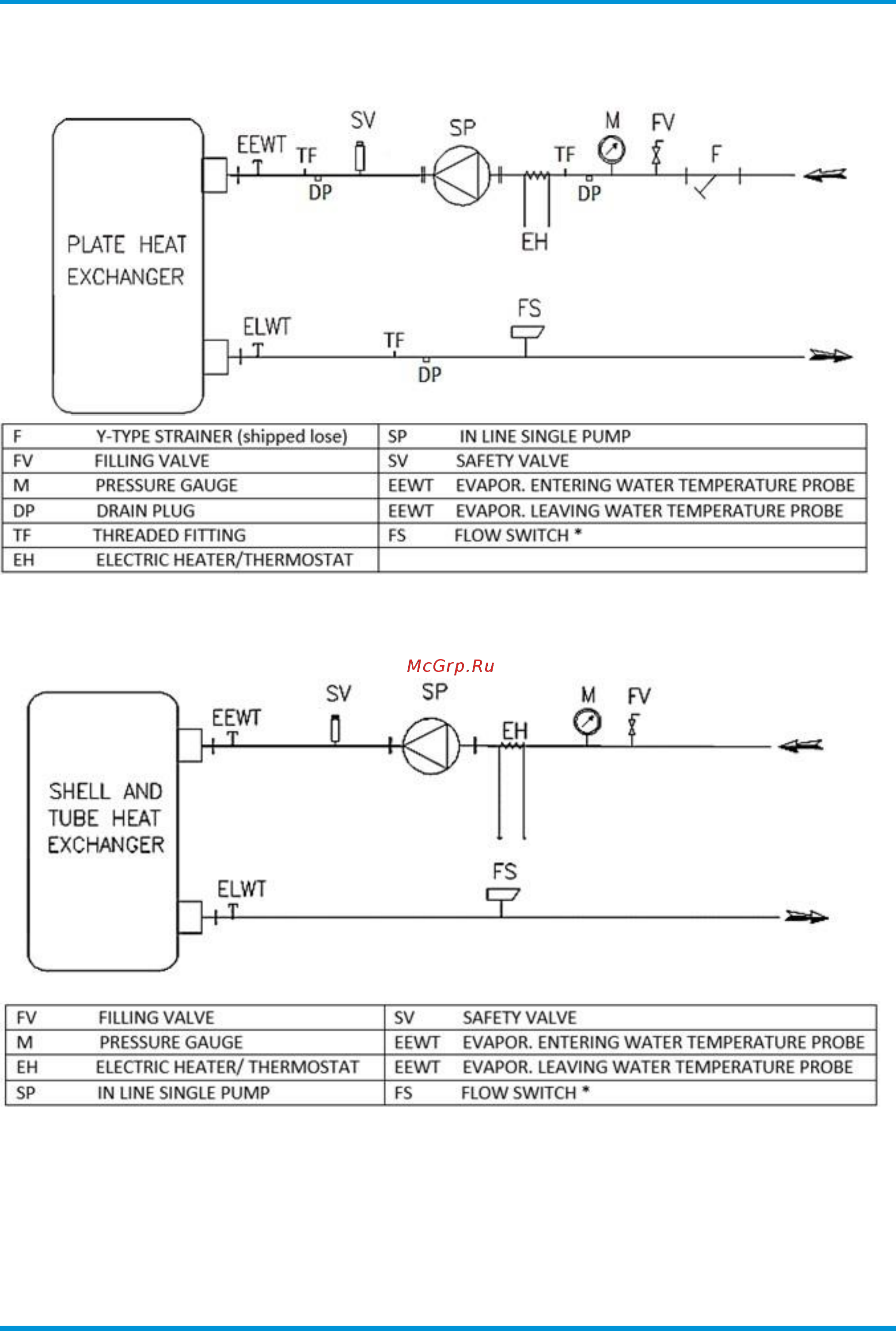

Single circuit unit with single pump low/high lift
*Flow switch available as option (opt. code 58). Safety valve set at 10 bar
Dual circuit unit with single pump low/high lift
*Flow switch is not available as an option for dual circuit units (installation of the filter is mandatory). Safety valve set at 10 bar
Note: drain plug and threaded fitting are on the shell and tube exchanger.
