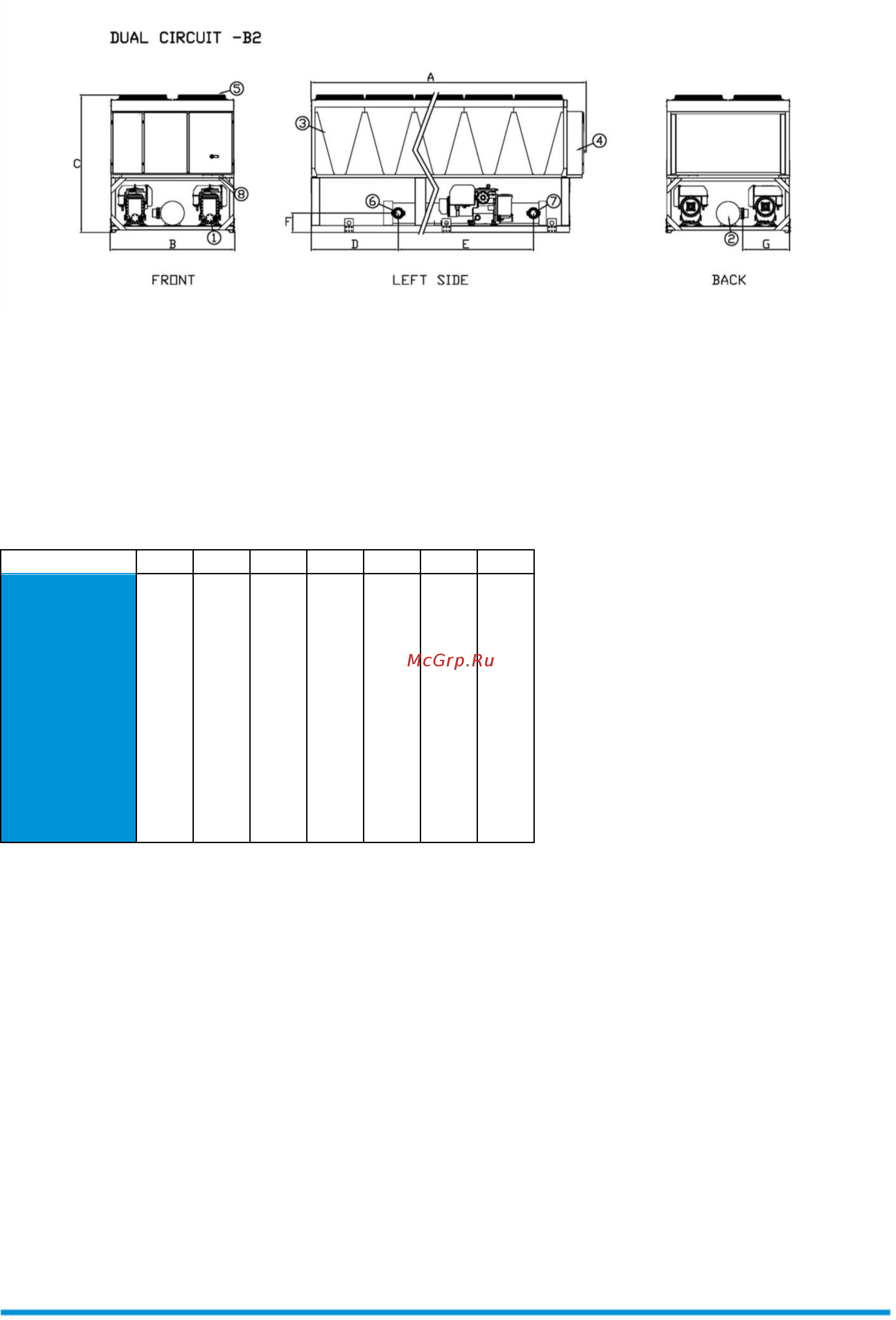

DIMENSIONAL DRAWING
LEGEND
1.
COMPRESSOR
2.
EVAPORATOR
3.
CONDENSER COIL
4.
ELECTRICAL PANEL
5.
FAN
6.
EVAPORATOR WATER INLET
7.
EVAPORATOR WATER OUTLET
8.
SLOT FOR POWER AND CONTROL PANEL CONNCTION
note:
the above drawings are not contractually binding. For the design of installation refer to the dedicated dimensional drawing available fro m the
factory on request. The data are subject to change without notice.
MODEL
A
B
C
D
E
F
G
EWAD700T-SR B2
5976
2282
2537
394
2412
386
809
EWAD800T-SR B2
5976
2282
2537
394
2412
386
809
EWAD940T-SR B2
6876
2282
2537
377
2962
376
809
EWADC10T-SR B2
6876
2282
2537
377
2962
376
809
EWADC11T-SR B2
7776
2282
2537
1087
2910
471
758
EWADH10T-SR B2
6876
2282
2537
402
2910
471
758
EWADH12T-SR B2
7776
2282
2537
1087
2910
471
758
EWADH13T-SR B2
8676
2282
2537
1987
2910
471
758
EWADH14T-SR B2
9576
2282
2537
2887
2910
471
758
EWADH15T-SR B3
10509
2282
2537
EWADH16T-SR B3
11409
2282
2537
EWADC17T-SR B3
11409
2282
2537
EWADH18T-SR B3
11409
2282
2537
EWADC19T-SR B3
12309
2282
2537
EWADC20T-SR B3
13209
2282
2537
EWADC21T-SR B3
14109
2282
2537
