48/73

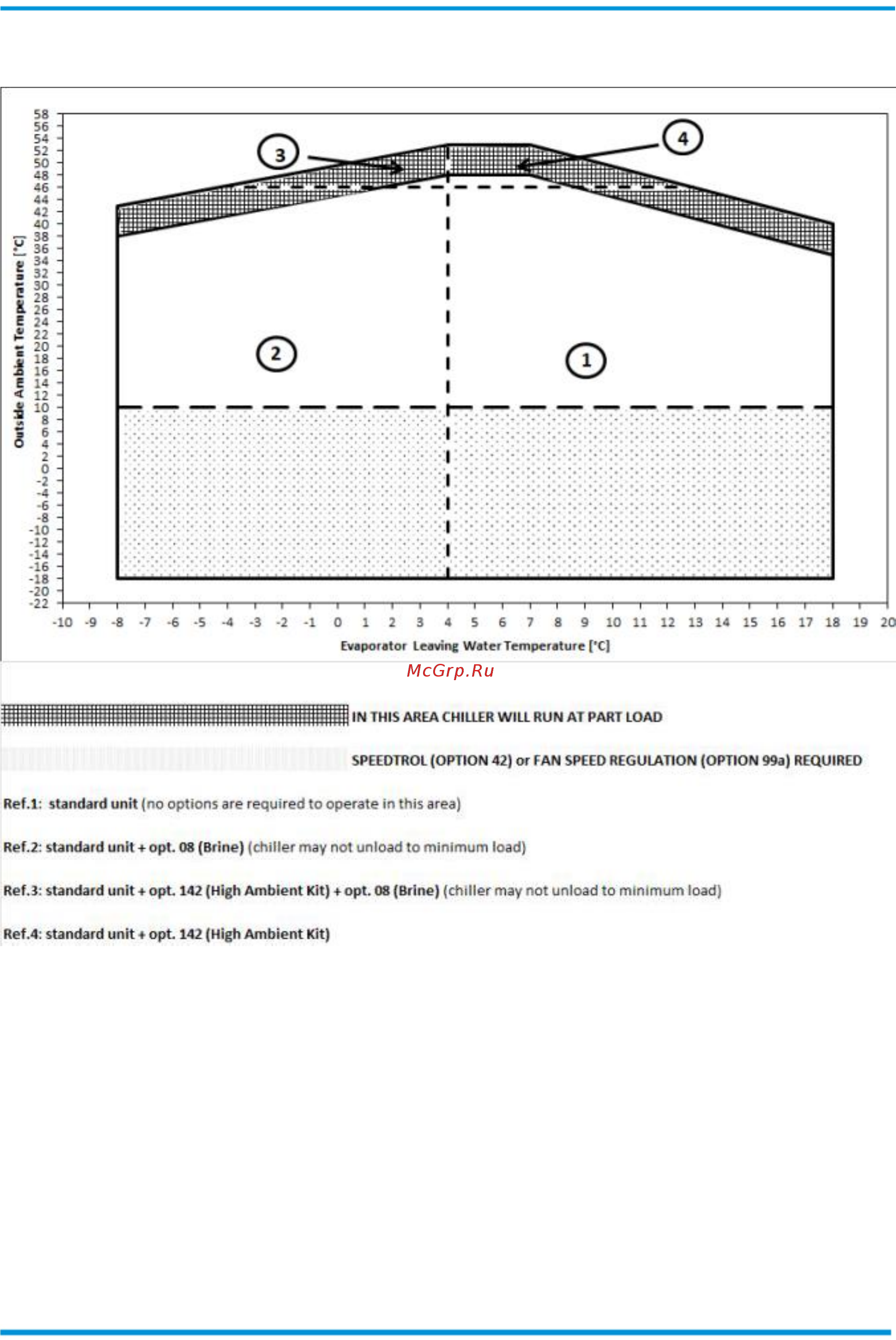

OPERATING LIMITS
Operating limits
EWAD~T -B XS/XL/XR
NOTE:
-For operation with ELWT below 4°C, the unit must operate with glycol mixture. The glycol
percentage must be provide according to the minimum ELWT needed.
-The above graphic represents a guideline about the operating limits of the range. Please refer to the
latest Chiller Selection Software (CSS) for real operating limits working conditions for each size.
-In area 2 and 3 chiller may not unload to the minimum load.
