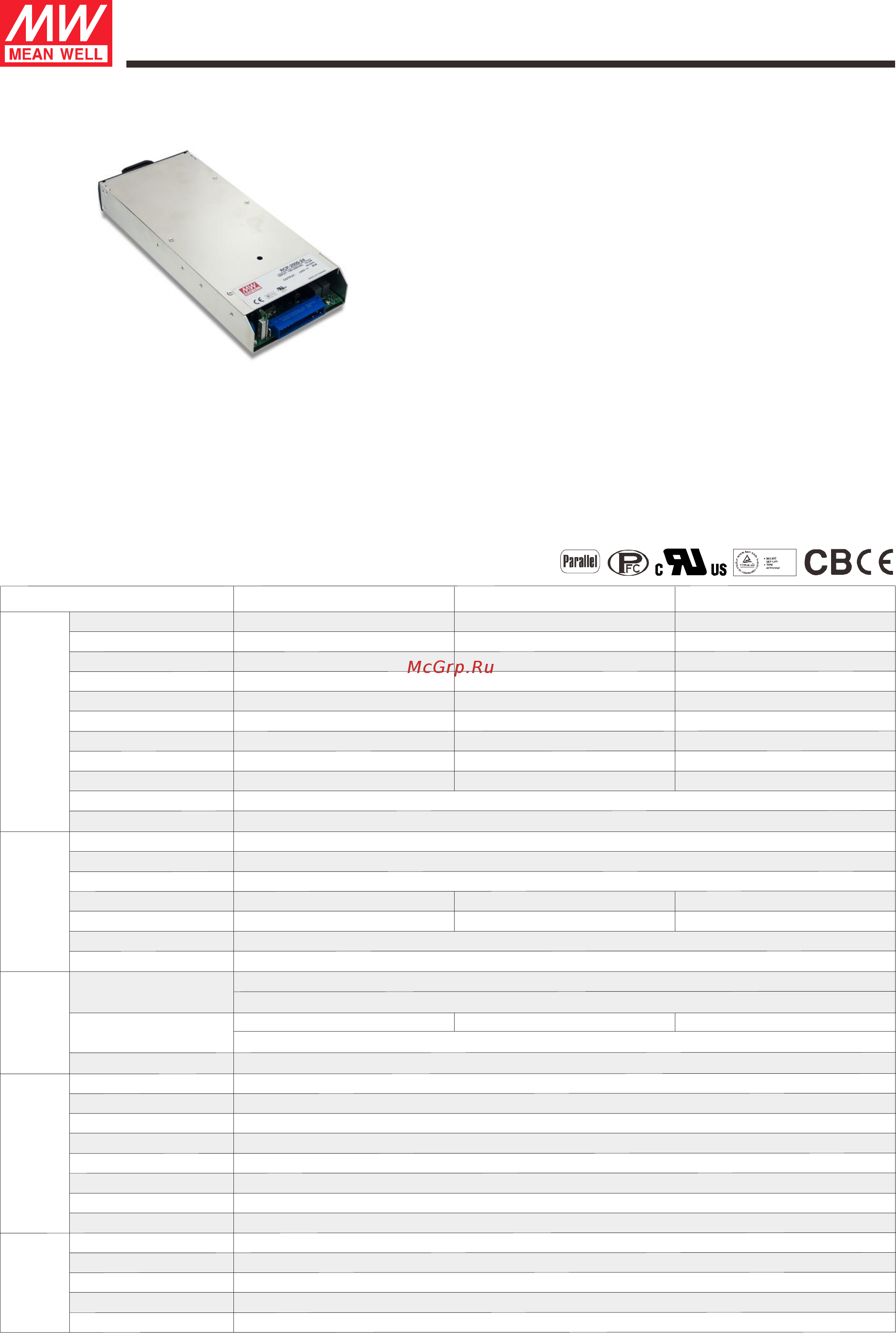

SPECIFICATION - Single Unit

RCP-2000-12 RCP-2000-24

MODEL

DC VOLTAGE

RATED CURRENT

CURRENT RANGE

RATED POWER

OUTPUT VOLTAGE ADJ. RANGE

LINE REGULATION

LOAD REGULATION

SETUP, RISE TIME

HOLD UP TIME (Typ.)

VOLTAGE RANGE

Note.5

FREQUENCY RANGE

EFFICIENCY (Typ.)

POWER FACTOR (Typ.)

INPUT

INRUSH CURRENT (Typ.)

LEAKAGE CURRENT

AC CURRENT (Typ.)

12V 24V

100A 80A

0 ~ 100A 0 ~ 80A

1200W 1920W

150mVp-p

10.5 ~ 14V

200mVp-p

21 ~ 28V

±2.0% ±1.0%

±1.0%

1500ms, 60ms/230VAC at full load

16ms/230VAC at 75% load 10ms/230VAC at full load

90 ~ 264VAC 127 ~ 370VDC

47 ~ 63Hz

86%

0.98/230VAC at full load

COLD START 50A

13A/115VAC 7A/230VAC 16A/115VAC 10A/230VAC 16A/115VAC 10A/230VAC

<1.1mA / 230VAC

RCP-2000-48

48V

42A

0 ~ 42A

2016W

300mVp-p

42 ~ 56V

±1.0%

±0.5% ±0.5%

‧

Universal AC input / Full range

‧

Built-in 5V/0.3A, 12V/0.8A auxiliary power

‧

Built-in active PFC function, PF>0.98

‧

High efficiency up to 92%

‧

Withstand 300VAC surge input for 5 seconds

‧

Protections: Short circuit / Overload / Over voltage / Over temperature

‧

High Power density 21.4W/inch

‧

Forced air cooling by built-in DC fan with fan speed control

‧

Low profile:1U height

‧

Remote control for single unit

‧

Built-in remote sense function

‧

Output voltage trimming function

‧

Hot-swap operation

‧

PMBus communicationserial

‧

AC OK, DC OK signal, fan fail, OTP alarm signal

‧

Internal OR-ing FET

‧

3 years warranty

RIPPLE & NOISE (max.)

Note.2

VOLTAGE TOLERANCE

Note.3

90.5% 92%

Protection type : Constant current limiting, unit will shut down o/p voltage after 5 sec. re-power on to recover

OVER TEMPERATURE

OVERLOAD

OVER VOLTAGE

105 ~ 125% rated output power

14.7 ~ 17.5V

Protection type : Shut down o/p voltage, re-power on to recover

Shut down o/p voltage, recovers automatically after temperature goes down

29.5 ~ 35V 57.6 ~ 67.2V

PROTECTION

2000W Front End Power Supply

■

Features :

R CP-200 0

s eri es

AC OK SIGNAL

DC OK SIGNAL

REMOTE SENSE

REMOTE ON/OFF CONTROL

AUXILIARY POWER

The isolated TTL signal out, refer to function manual

Compensate voltage drop on the load wiring up to 0.5V

By electrical signal or dry contact ON:short OFF:open

5V @ 0.3A, 12V @ 0.8A

FUNCTION

Adjustment of output voltage, possible between 90 ~ 110% of rated output

Logic " High" for over temperature warning, refer to function manual, isolated signal

The isolated TTL signal out, refer to function manual

WORKING TEMP.

WORKING HUMIDITY

STORAGE TEMP., HUMIDITY

TEMP. COEFFICIENT

VIBRATION

-40 ~ +70 (Refer to "Derating Curve")℃

20 ~ 90% RH non-condensing

-40 ~ +85 , 10 ~ 95% RH℃

± ℃ ℃0.03%/ (0 ~ 50 )

ENVIRONMENT

OVER TEMP WARNING

FAN FAIL SIGNAL

OUTPUT VOLTAGE TRIM

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

The RCP-2000 series are state of the art AC/DC frond-end rectifiers with 1U compact size and 21.4 W/in of high power density. They can

provide up to 2000W per unit for the applications of servers, information technology equipment, networking, telecommunications, and wide

range of industrial applications using distributed power architecture. Equipped with hot-swap function and PMBus communication protocol,

RCP-2000 can be assembled in 1U 19 rack and controlled/monitored by external device such as monitoring unit (RCP-CMU-1) or PC.

■

Description :

File Name :RCP-2000-SPEC 2013-11-01
