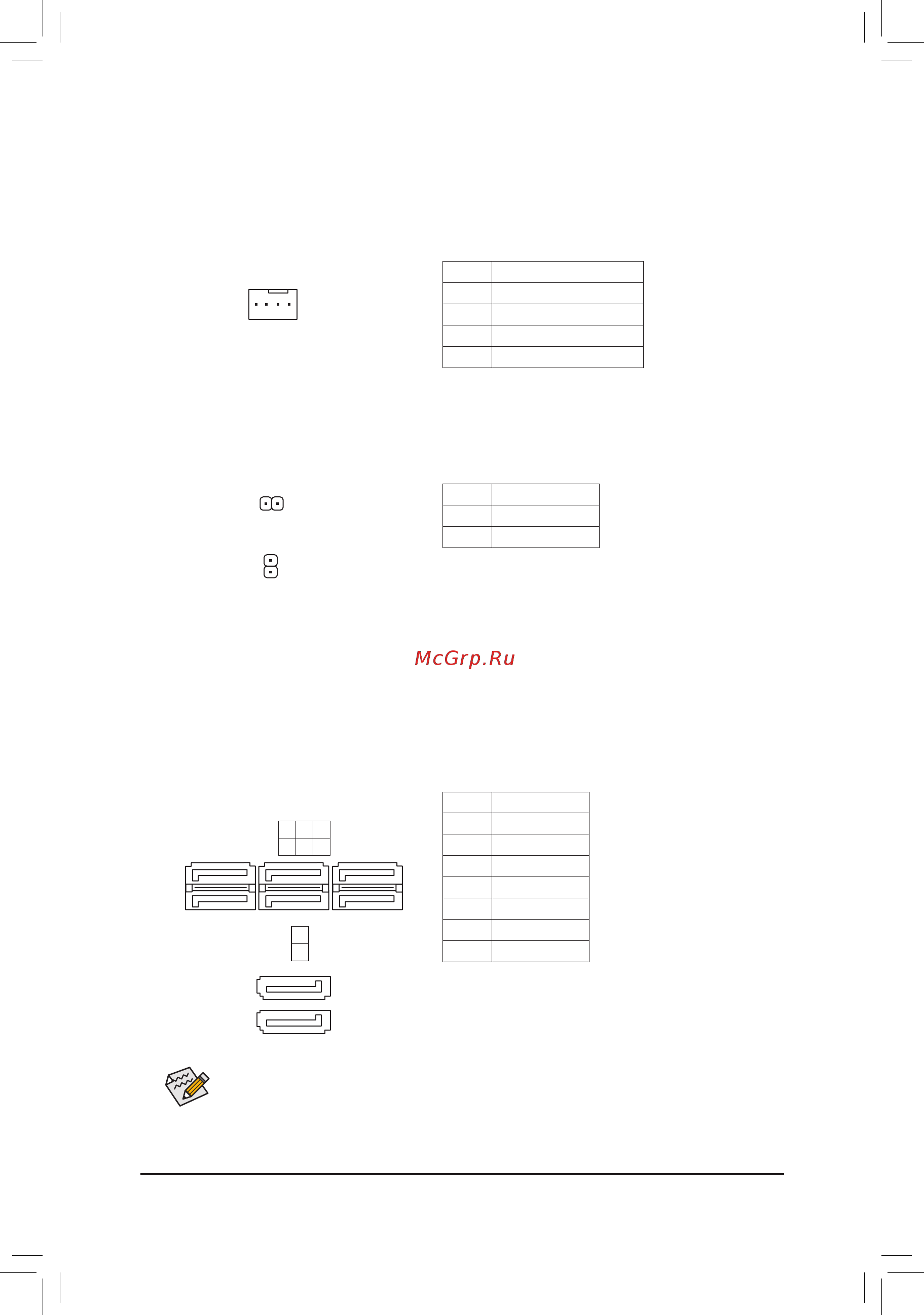

7) CPU_OPT(WaterCoolingCPUFanHeader)
The fan header is 4-pin and possesses a foolproof insertion design. Most fan headers possess a foolproof
insertion design. When connecting a fan cable, be sure to connect it in the correct orientation (the black
connector wire is the ground wire). The speed control function requires the use of a fan with fan speed
control design.
DEBUG
PORT
G.QBOFM
1
Pin No. Denition
1 GND
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
8) EC_TEMP1/EC_TEMP2(TemperatureSensorHeaders)
Connect the thermistor cables to the headers for temperature detection.
Pin No. Denition
1 SENSORIN
2 GND
1
EC_TEMP2
1
EC_TEMP1
9) SATA30/1/2/3/4/5/6/7(SATA6Gb/sConnectors)
The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA
1.5Gb/s standard. Each SATA connector supports a single SATA device. The Intel
®
ChipsetsupportsRAID0,
RAID1,RAID5,andRAID10.RefertoChapter3,"ConguringaRAIDSet,"forinstructionsonconguring
aRAIDarray.
Pin No. Denition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Toenablehot-pluggingfortheSATAports,refertoChapter2,"BIOSSetup,""Peripherals\SATA
AndRSTConguration,"formoreinformation.
SATA3
6
7
SATA3
7
7
1
1
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
1
1
7
7
DEBUG
PORT
G.QBOFM
5 3 1
4 2 0
DEBUG
PORT
G.QBOFM
DEBUG
PORT
G.QBOFM
- 16 -
