ESIE11-05 Procedure for Software Upload Hydrobox
Service Procedure 195
6.2 Software Upload Procedure
READ THIS INSTRUCTION CAREFULLY. FOLLOW THE INSTRUCTION STEP BY STEP.
NOT FOLLOWING THIS INSTRUCTION MAY RESULT IN INCORRECT PROGRAMMING OF
SOFTWARE. UNIT WILL NOT BE ABLE TO RUN IF SOFTWARE IS NOT INSTALLED
CORRECTLY.
WITH THIS PROCEDURE, THE EXISTING SOFTWARE IN THE UNIT IS FIRST
COMPLETELY ERASED, BEFORE REPROGRAMMING OF THE NEW SOFTWARE.
IF DURING THE PROGRAMMING OF THE SOFTWARE SOME PROBLEM WOULD OCCUR,
PLEASE RESTART THE PROCEDURE FROM STEP 1.
Step 1 Shut down the main circuit breaker of the unit. It is very important that there is no power
supplied to the indoor unit.

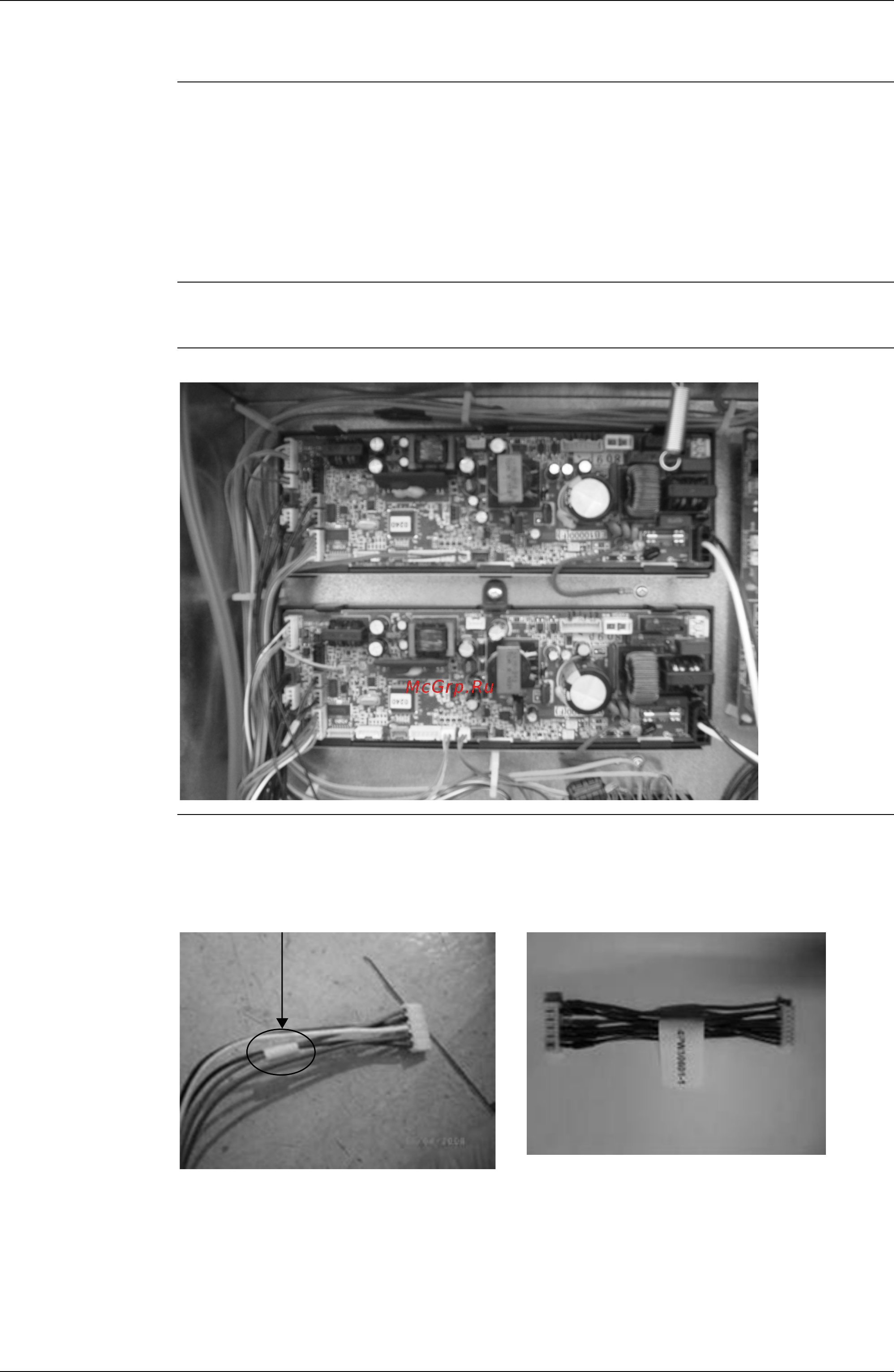

Step 2 Open the front plate of the unit to have access to the switch box:
Step 3 Install the first end of the programming cable (blue extension) to X50A connector on the main
PCB of the indoor unit.
Use programming cable with indication “W”
from “Write” (part n°: 999480P or 999482P)
+
blue connector (part n°: 999485P)
