ESIE11-05 Procedure for Software Upload Hydrobox
Service Procedure 199

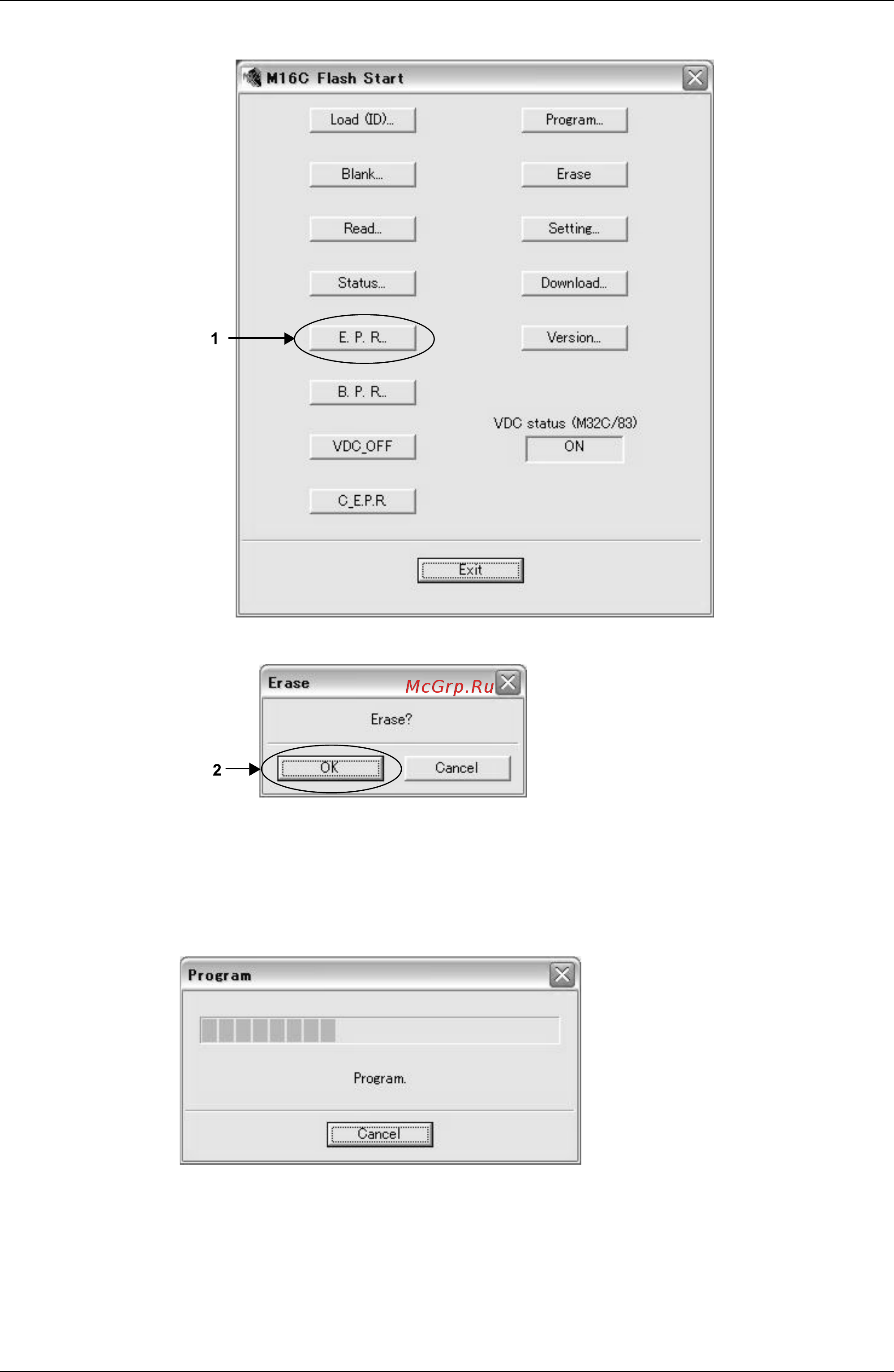

1. Click on “E.P.R.” (= Erase – Program – Read check)
2. The program will request if previous software may be erased: “ERASE?”
Click on “OK”.
Following steps will happen automatically.
Please wait till the program has ended to erase the old software and reprogramming the new
one.
This can take up till 20 min!
Please be patient.
You will be able to check the progress on the windows as shown below:
