ASRock X58 Deluxe3 Motherboard

EnglishEnglish

English

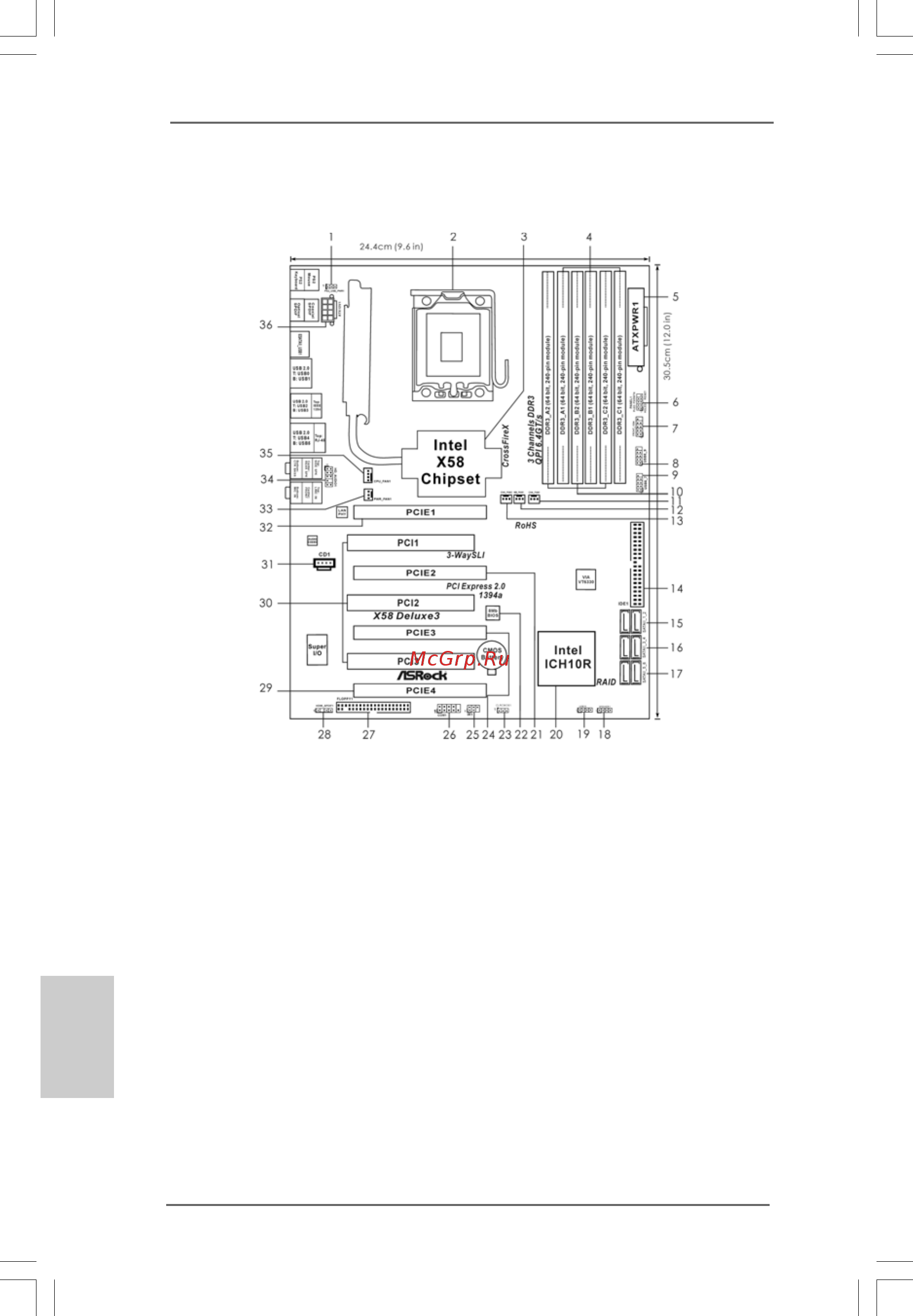

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PWR1 Jumper 18 Chassis Speaker Header

2 1366-Pin CPU Socket (SPEAKER 1, Purple)

3 North Bridge Controller 19 USB 2.0 Header (USB10, Blue)

4 3 x 240-pin DDR3 DIMM Slots 20 South Bridge Controller

(Triple Channel: DDR3_A1, DDR3_B1, DDR3_C1 21 PCI Express x16 Slot (PCIE2, Orange)

; White) 22 8Mb SPI Flash

5 ATX Power Connector (ATXPWR1) 23 Clear CMOS Jumper (CLRCMOS1)

6 System Panel Header (PANEL1, Orange) 24 PCI Express x16 Slot (PCIE3, Blue)

7 Front Panel IEEE 1394 Header 25 Infrared Module Header (IR1)

(FRONT_1394, Red) 26 COM Port Header (COM1)

8 USB 2.0 Header (USB8_9, Blue) 27 Floppy Connector (FLOPPY1)

9 USB 2.0 Header (USB6_7, Blue) 28 HDMI_SPDIF Header

10 3 x 240-pin DDR3 DIMM Slots (HDMI_SPDIF1, Yellow)

(Triple Channel: DDR3_A2, DDR3_B2, DDR3_C2 29 PCI Express x16 Slot (PCIE4, Orange)

; Blue) 30 PCI Slots (PCI1-3)

11 Chassis Fan Connector (CHA_FAN1) 31 Internal Audio Connector: CD1 (Black)

12 North Bridge Fan Connector (NB_FAN1) 32 PCI Express x16 Slot (PCIE1, Blue)

13 Chassis Fan Connector (CHA_FAN2) 33 Power Fan Connector (PWR_FAN1)

14 Primary IDE Connector (IDE1, Blue) 34 Front Panel Audio Header

15 SATAII Connector (SATAII_1_2, Red) (HD_AUDIO1, Lime)

16 SATAII Connector (SATAII_3_4, Red) 35 CPU Fan Connector (CPU_FAN1)

17 SATAII Connector (SATAII_5_6, Red) 36 ATX 12V Power Connector (ATX12V1)
