ASRock X58 Deluxe3 Motherboard

EnglishEnglish

English

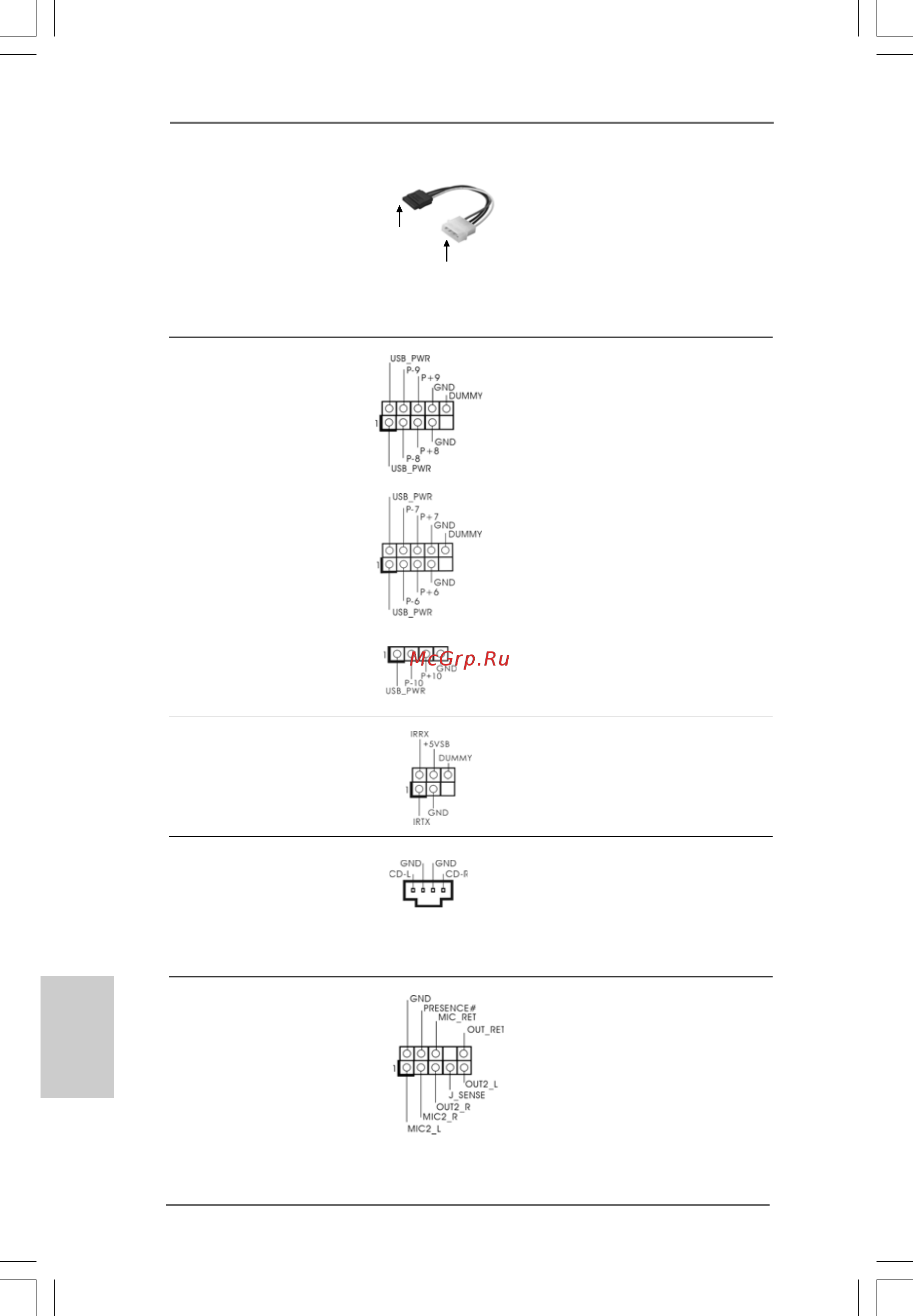

Front Panel Audio Header This is an interface for front

(9-pin HD_AUDIO1) panel audio cable that allows

(see p.2 No. 34) convenient connection and

control of audio devices.

USB 2.0 Headers Besides seven default USB 2.0

(9-pin USB8_9) ports on the I/O panel, there are

(see p.2 No. 8) three USB 2.0 headers on this

motherboard. USB8_9 and

USB6_7 headers can support four

USB 2.0 ports (two ports for each

(9-pin USB6_7) header). USB10 header can

(see p.2 No. 9) support one USB 2.0 port.

(4-pin USB10)

(see p.2 No. 19)

Serial ATA (SATA) Please connect the black end of

Power Cable SATA power cable to the power

(Optional) connector on each drive. Then

connect the white end of SATA

power cable to the power

connector of the power supply.

Infrared Module Header This header supports an optional

(5-pin IR1) wireless transmitting and

(see p.2 No. 25) receiving infrared module.

Internal Audio Connectors This connector allows you

(4-pin CD1) to receive stereo audio input

(CD1: see p.2 No. 31) from sound sources such as

a CD-ROM, DVD-ROM, TV

tuner card, or MPEG card.

CD1

connect to

the power

supply

connect to the SATA

HDD power connector
