ASRock X58 Deluxe3 Motherboard

the red-striped side to

Pin1

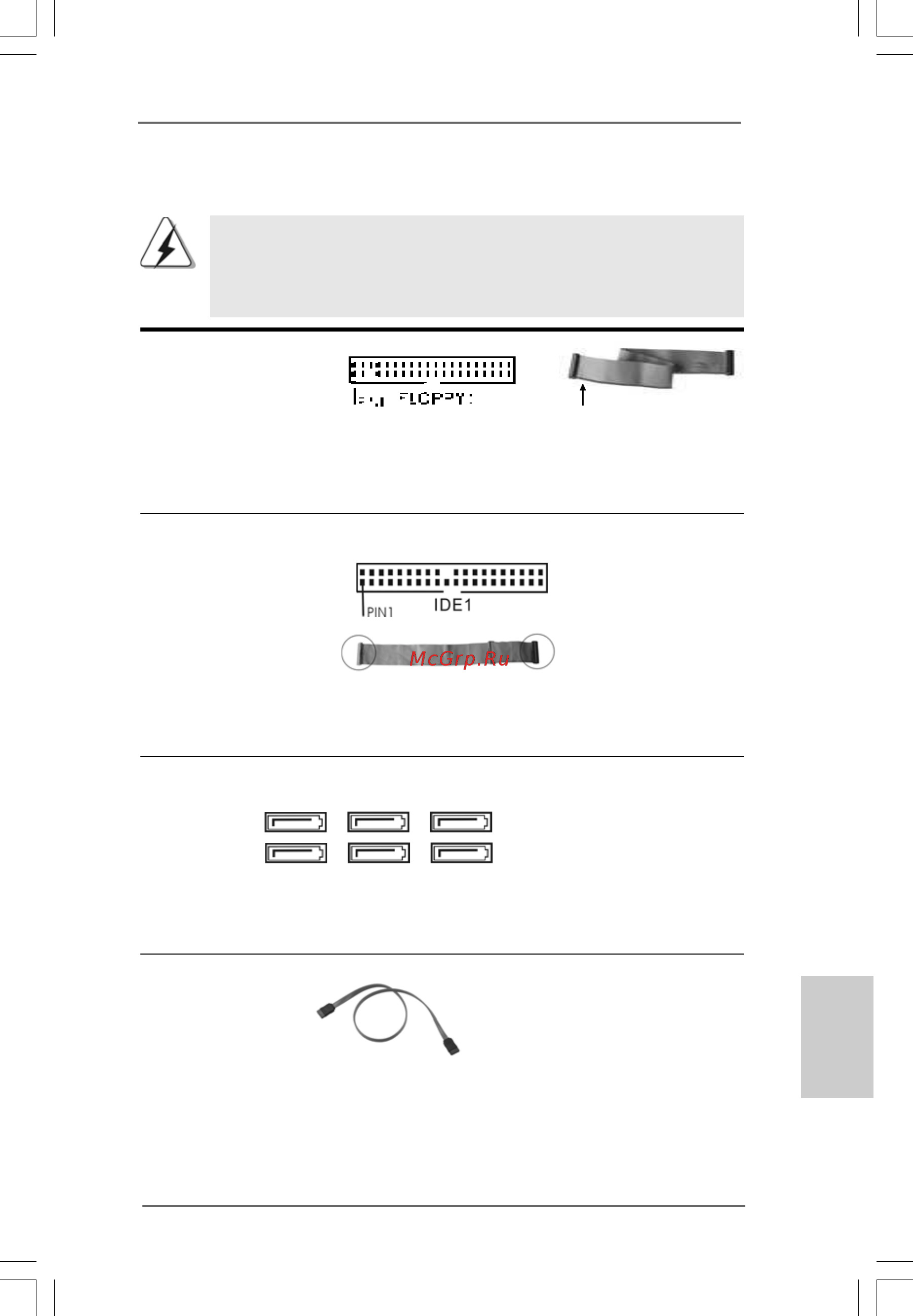

2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors

2.9 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper

caps over the headers and connectors will cause permanent dam-

age of the motherboard!

FDD connector

(33-pin FLOPPY1)

(see p.2 No. 27)

Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the

connector.

Primary IDE connector (Blue)

(39-pin IDE1, see p.2 No. 14)

Note: Please refer to the instruction of your IDE device vendor for the details.

Serial ATAII Connectors These six Serial ATAII (SATAII)

(SATAII_1_2: connectors support SATA data

see p.2, No. 15) cables for internal storage

(SATAII_3_4: devices. The current SATAII

see p.2, No. 16) interface allows up to 3.0 Gb/s

(SATAII_5_6: data transfer rate.

see p.2, No. 17)

connect the black end

to the IDE devices

connect the blue end

to the motherboard

80-conductor ATA 66/100/133 cable

SATAII_5_6 SATAII_3_4 SATAII_1_2

Serial ATA (SATA) Either end of the SATA data cable

Data Cable can be connected to the SATA /

(Optional) SATAII hard disk or the SATAII

connector on this motherboard.
