This motherboard is free bundled with ASRock SATA3 Card. ASRock SATA3 Card

is composed of three SATAIII connectors which allow up to 6.0 Gb/s data transfer

rate. The red eSATAIII connector (eSATAIII_1) supports external storage devices,

and the yellow SATAIII connectors (SATAIII_1_2) support internal storage devices.

With ASRock SATA3 Card, you can enjoy the convenience of higher speed data

transfer rate on this motherboard.

II. InstallationII. Installation

II. Installation

Before you install ASRock SATA3 Card on this motherboard, please refer to below

steps carefully.

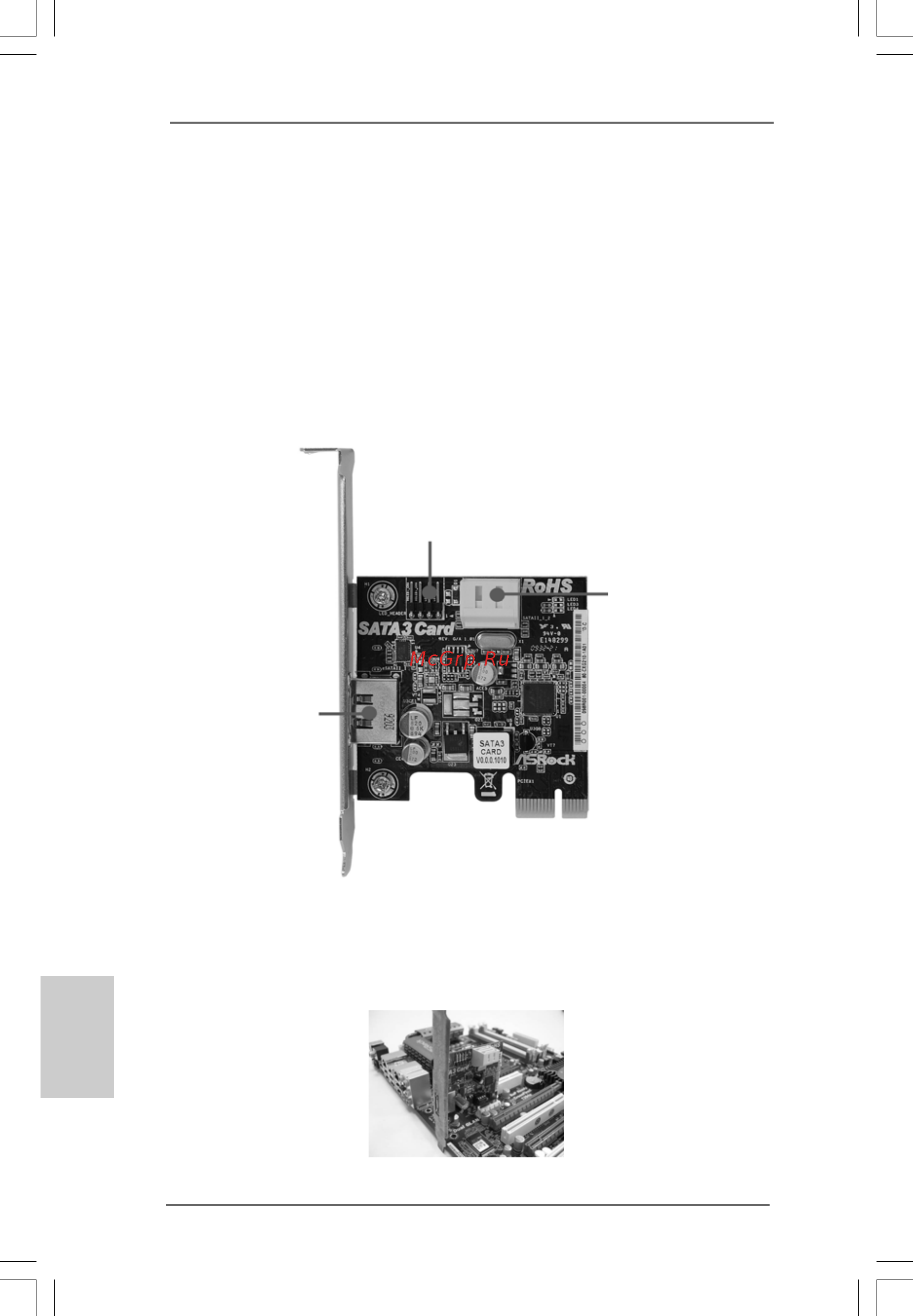

Step 1. Insert ASRock SATA3 Card into PCIE slot on this motherboard.

eSATAIII connector

(eSATAIII_1, red)

SATAIII connectors

(SATAIII_1_2, yellow)

1: top

2: bottom

LED header

(LED_HEADER, black)
