2.4 Expansion Slots (PCI and PCI Express Slots)2.4 Expansion Slots (PCI and PCI Express Slots)

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 3 PCI slots and 4 PCI Express slots on this motherboard.

PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI

interface.

PCIE slots: PCIE1 / PCIE3 (PCIE x16 slot; Blue) is used for PCI Express x16 lane

width graphics cards.

PCIE2 / PCIE4 (PCIE x16 slot; Orange) is used for PCI Express x16 lane

width graphics cards.

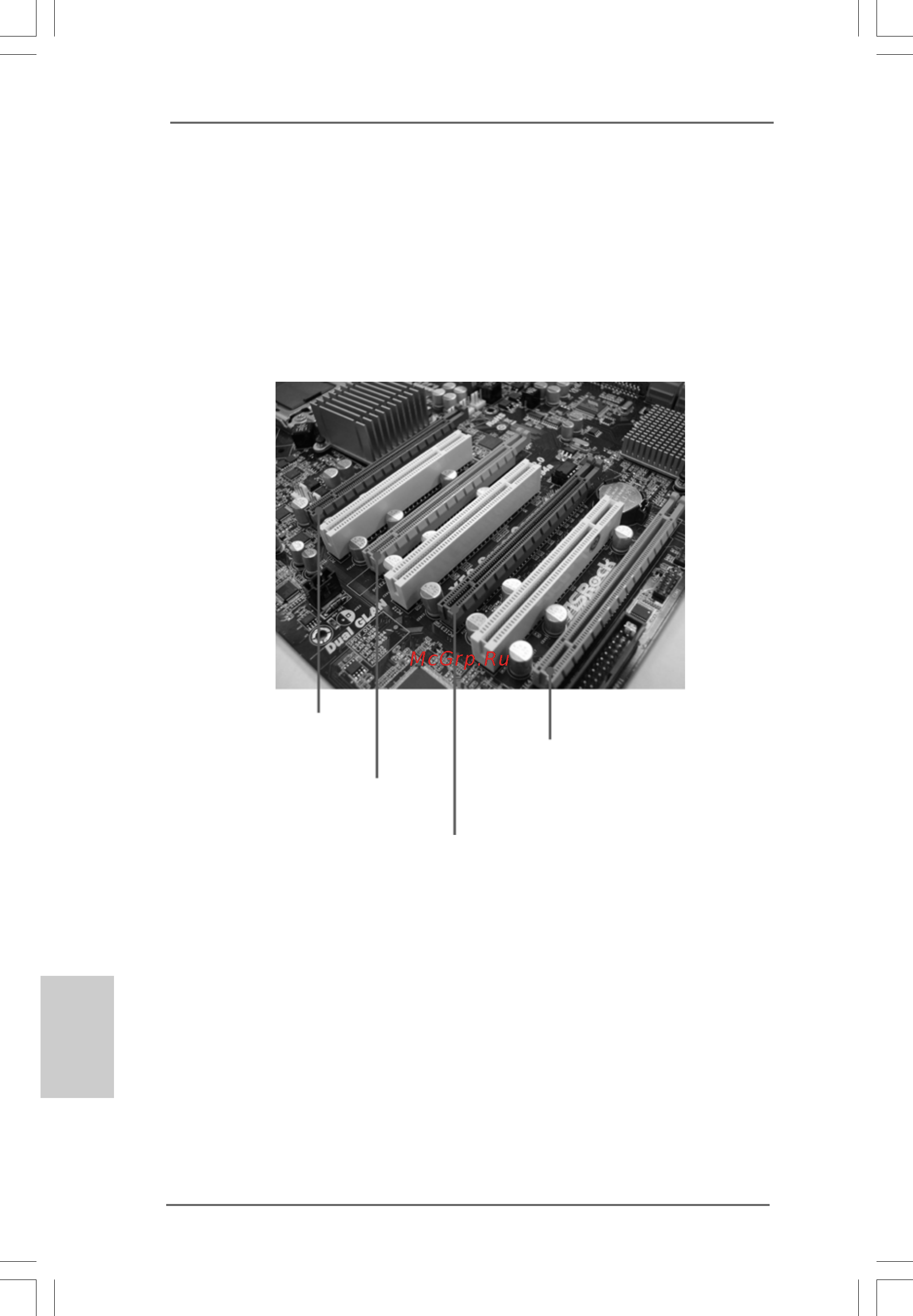

PCIE1 slot

(x16 or x8 mode)

PCIE2 slot

(x8 mode)

PCIE3 slot

(x16 or x8 mode)

PCIE4 slot

(x8 mode)
