English
9
B460 Steel Legend

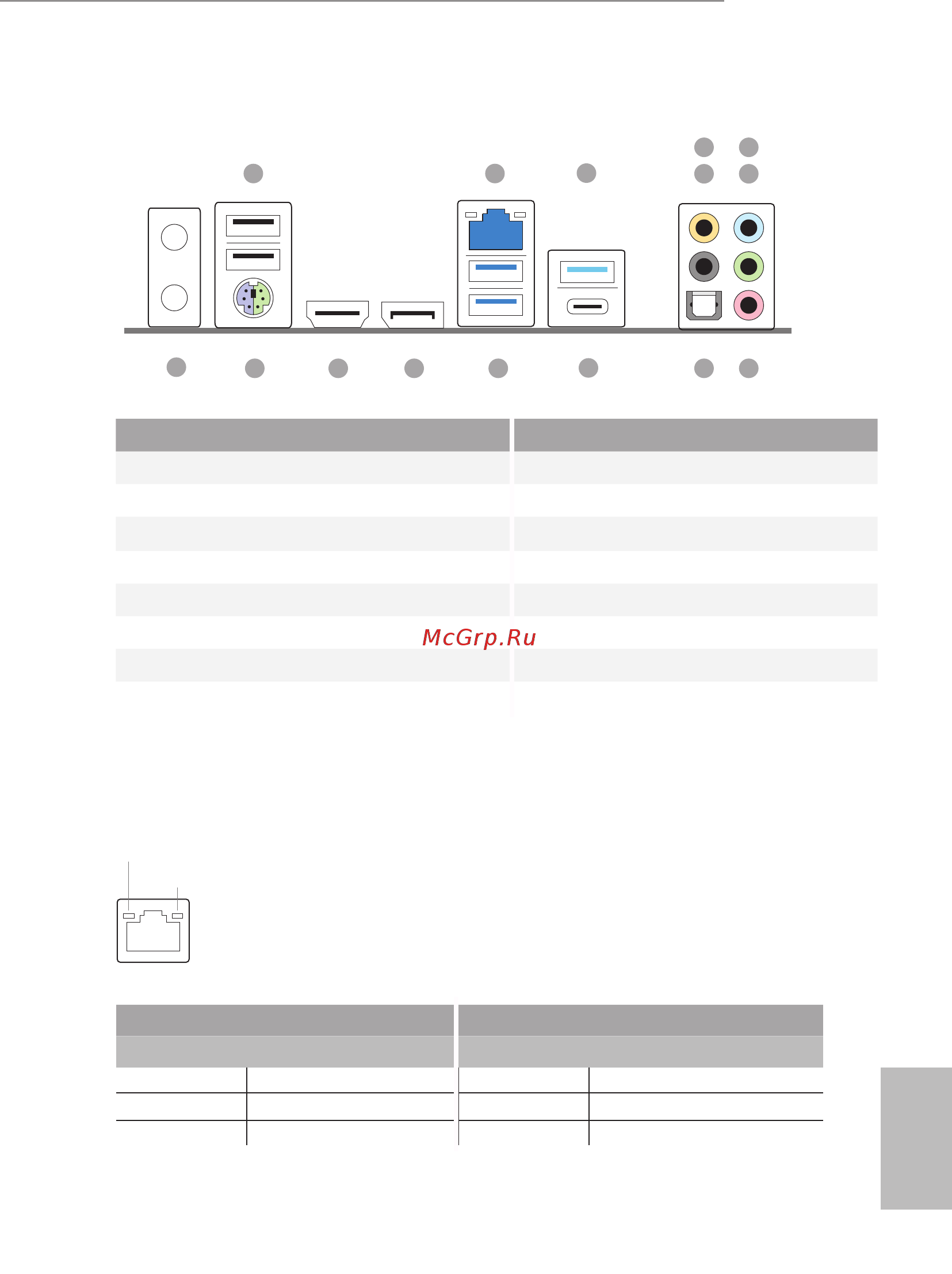

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB1_2) 9 Optical SPDIF Out Port
2 2.5G LAN RJ-45 Port (Dragon RTL8125BG)* 10 USB 3.2 Gen1 Type-C Port (USB3_TC1)
3 USB 3.2 Gen1 Type-A Port (USB3_TA1) 11 USB 3.2 Gen1 Type-A Ports (USB3_1_2)
4 Central / Bass (Orange) 12 DisplayPort 1.4
5 Rear Speaker (Black) 13 HDMI Port
6 Line In (Light Blue) 14 PS/2 Mouse/Keyboard Port
7 Front Speaker (Lime)** 15 Antenna Bracket
8 Microphone (Pink)
ACT/LINK LED
SPEED LED
LAN Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps/1Gbps connection
On Link Green 2.5Gbps connection
1
8911
10
13
5
4
7
6
2
3
14 12
15
