ASRock B460 Steel Legend [31/97] B460 steel legend
![ASRock B460 Steel Legend [31/97] B460 steel legend](/views2/1686816/page31/bg1f.png)
English
25
B460 Steel Legend

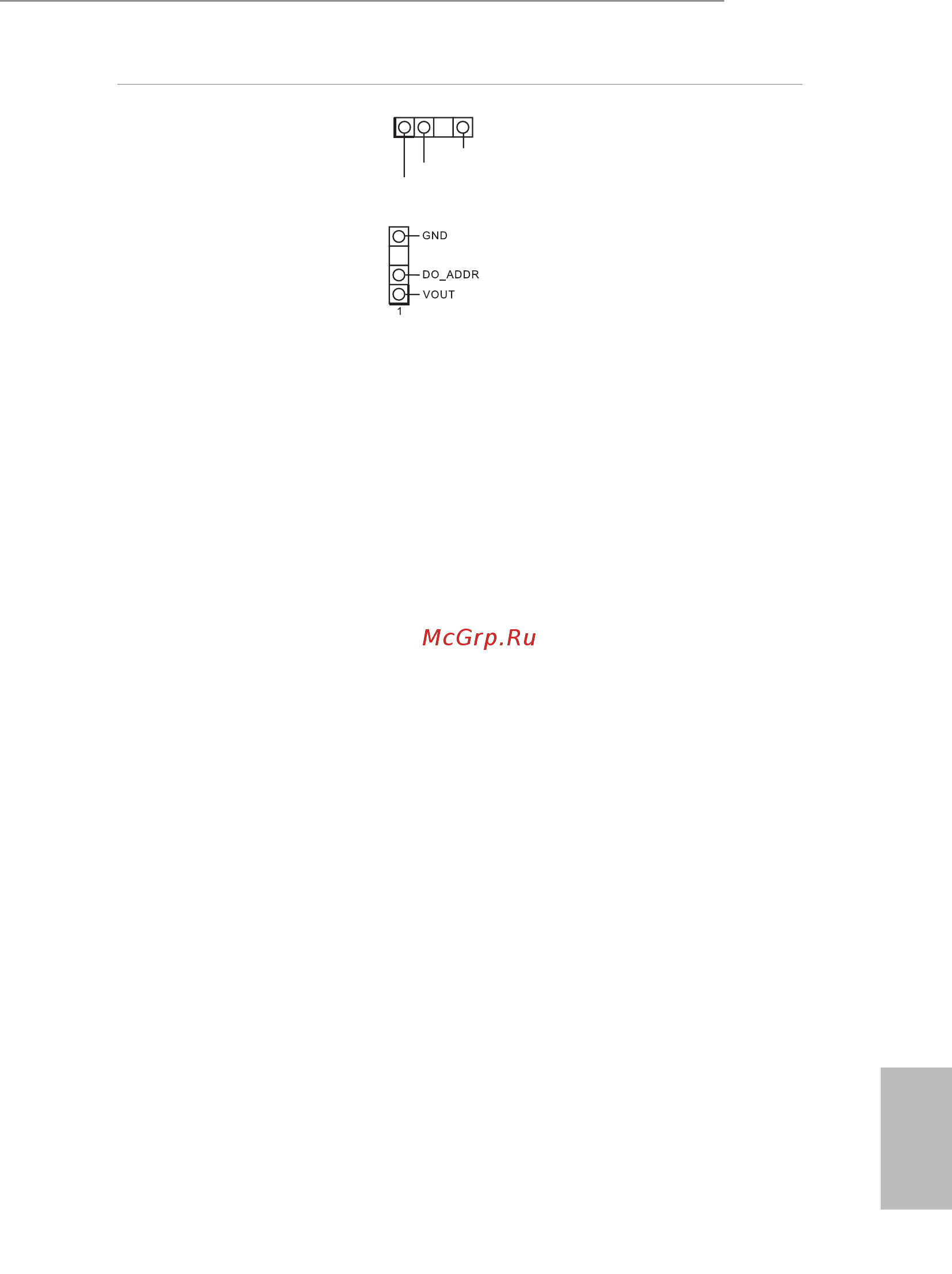

Addressable LED Headers
(3-pin ADDR_LED1)
(see p.7, No. 30)
(3-pin ADDR_LED2)
(see p.7, No. 7)
ese two
Addressable
headers
are used to connect
Addressable
LED extension cable which
allows users to choose from
various LED lighting eects.
Caution: Never install the
Addressable LED cable in the
wrong orientation; otherwise,
the cable may be damaged.
*Please refer to page 51 for
further instructions on this
header.
VOUT
DO_A DDR
GND
1
