ASRock B460 Steel Legend [83/97] Trusted computing
![ASRock B460 Steel Legend [83/97] Trusted computing](/views2/1686816/page83/bg53.png)
English
77
B460 Steel Legend

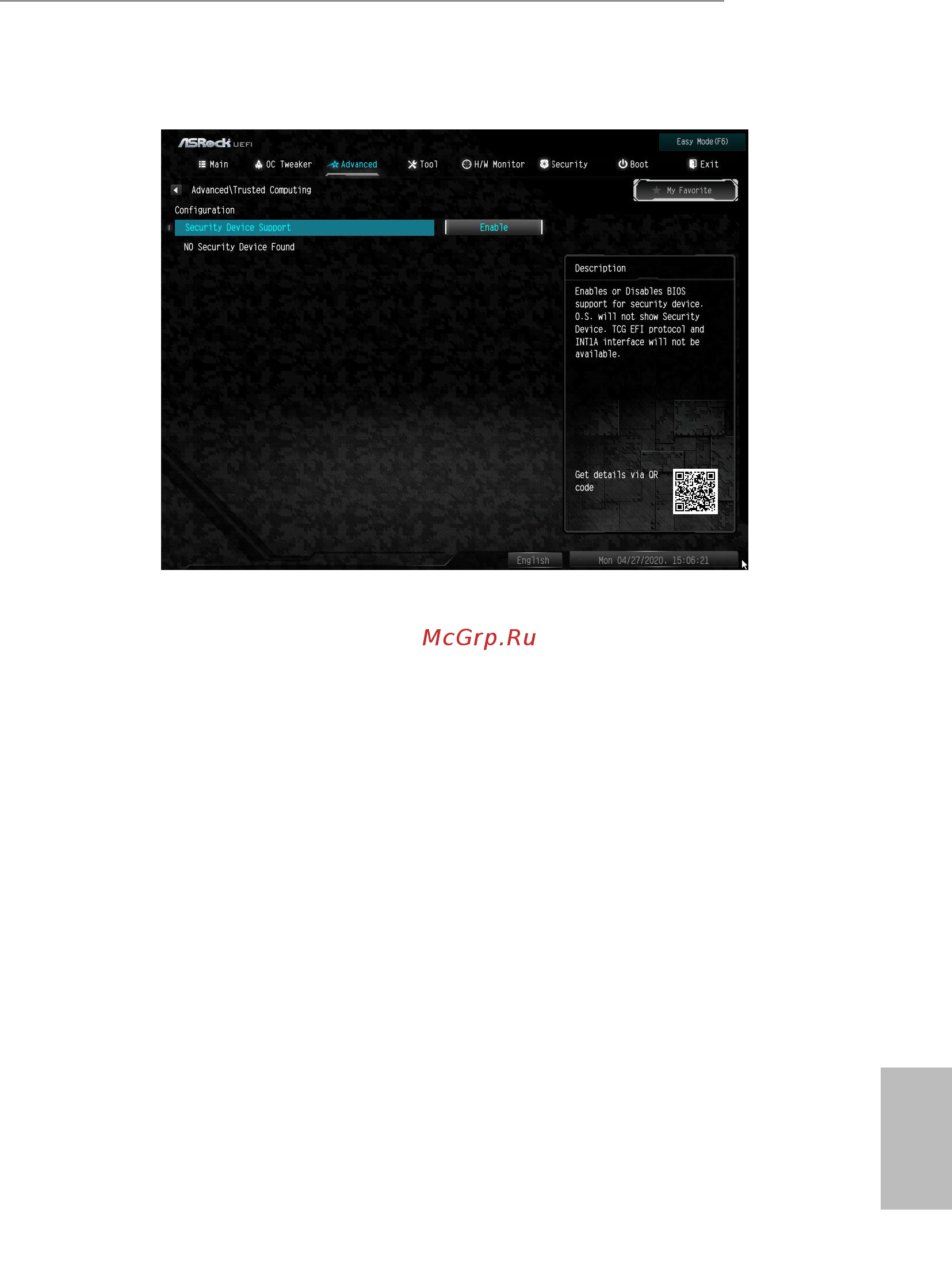

4.6.8 Trusted Computing
Security Device Support
Enable or disable BIOS support for security device.
