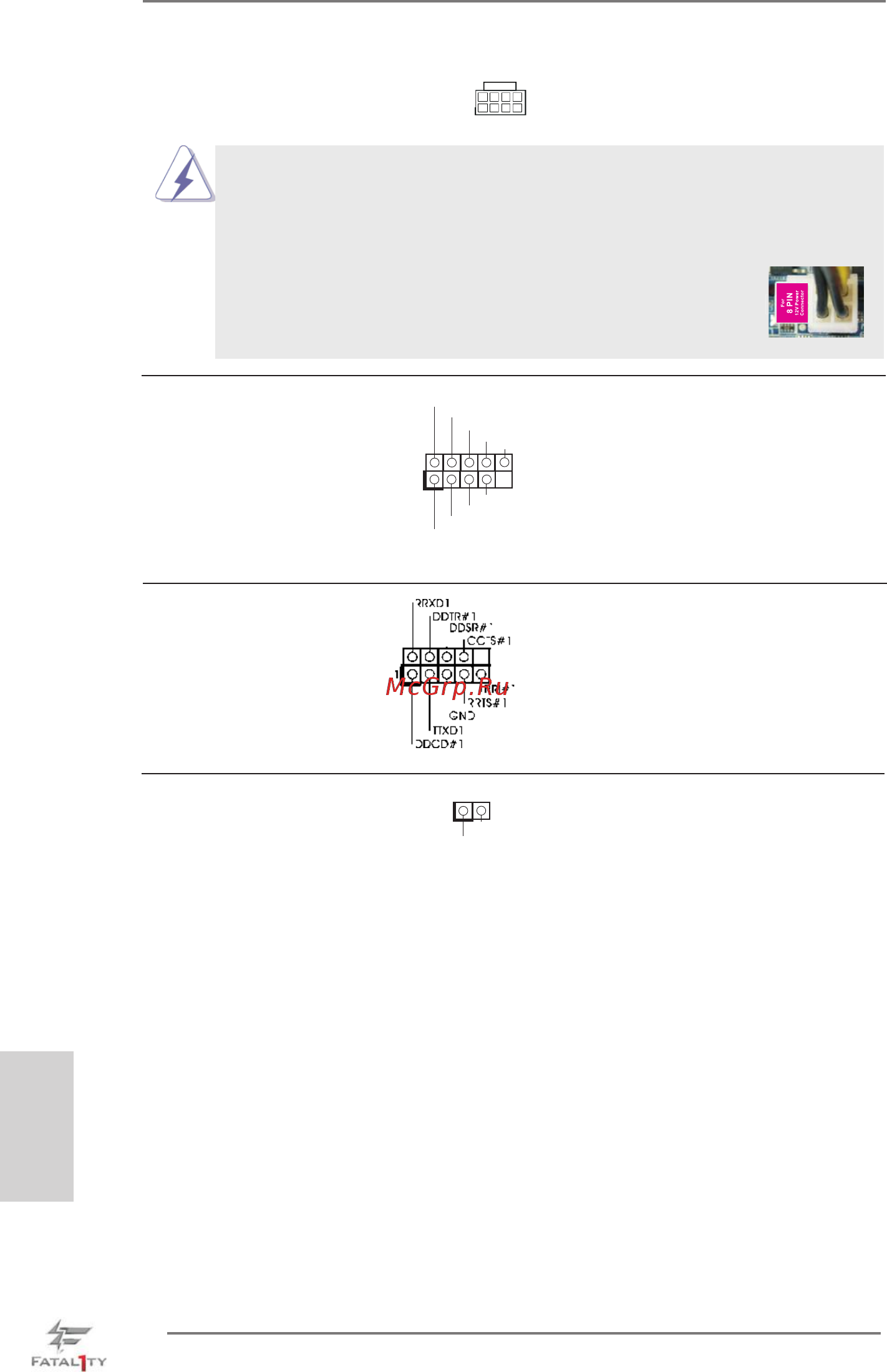

Fatal1ty Z77 Professional Series Motherboard
Колодка COM-порта Данная колодка COM-порта
(9-контактный COM1)
позволяет подключить модуль
(см. стр. 4, п. 31)
порта COM.
Колодка HDMI_SPDIF Колодка HDMI_SPDIF
(2-контактный HDMI_SPDIF1)
обеспечивает подачу выходного
(см. стр. 4, п. 33)
аудиосигнала на VGA-карту HDMI,
что позволяет подключать к
системе цифровые телевизоры,
проекторы или
жидкокристаллические панели
HDMI. Соедините эту колодку с
разъемом HDMI_SPDIF на VGA-
карте HDMI.
SP DI FO UT
GN D
1
Русский
Колодка питания 12V-ATX Подключите к этой колодке
(8-контактный ATX12V1)
кабель питания ATX 12V.
(см. стр. 4, п. 2)
8 5
4 1
Хотя эта объединительная плата обеспечивает ATX с 8 булавками 12V
соединитель власти, это может все еще работать, если Вы принимаете
традиционный ATX с 4-Pin 12V электропитание. Чтобы использовать
электропитание ATX с 4-Pin, пожалуйста включите ваше электропитание
наряду с Булавкой 1 и Прикрепите 5.
ATX С 4-Pin 12V Установка Электропитания
8 5
4 1
+ 12V
GND
+ 12V
1
R XTPBM_0
GND
RXTPAM_0
R XTPBP_0
GND
RXTPAP_0
Помимо четырех портов IEEE
1394 на панели ввода-вывода
имеются две группы контактов
на материнской плате для
подключения двух
дополнительных портовIEEE
1394 каждая.
Колодки IEEE 1394
(9-контактный FRONT_1394)
(см. стр. 4, п. 28)
