6161
6161
61

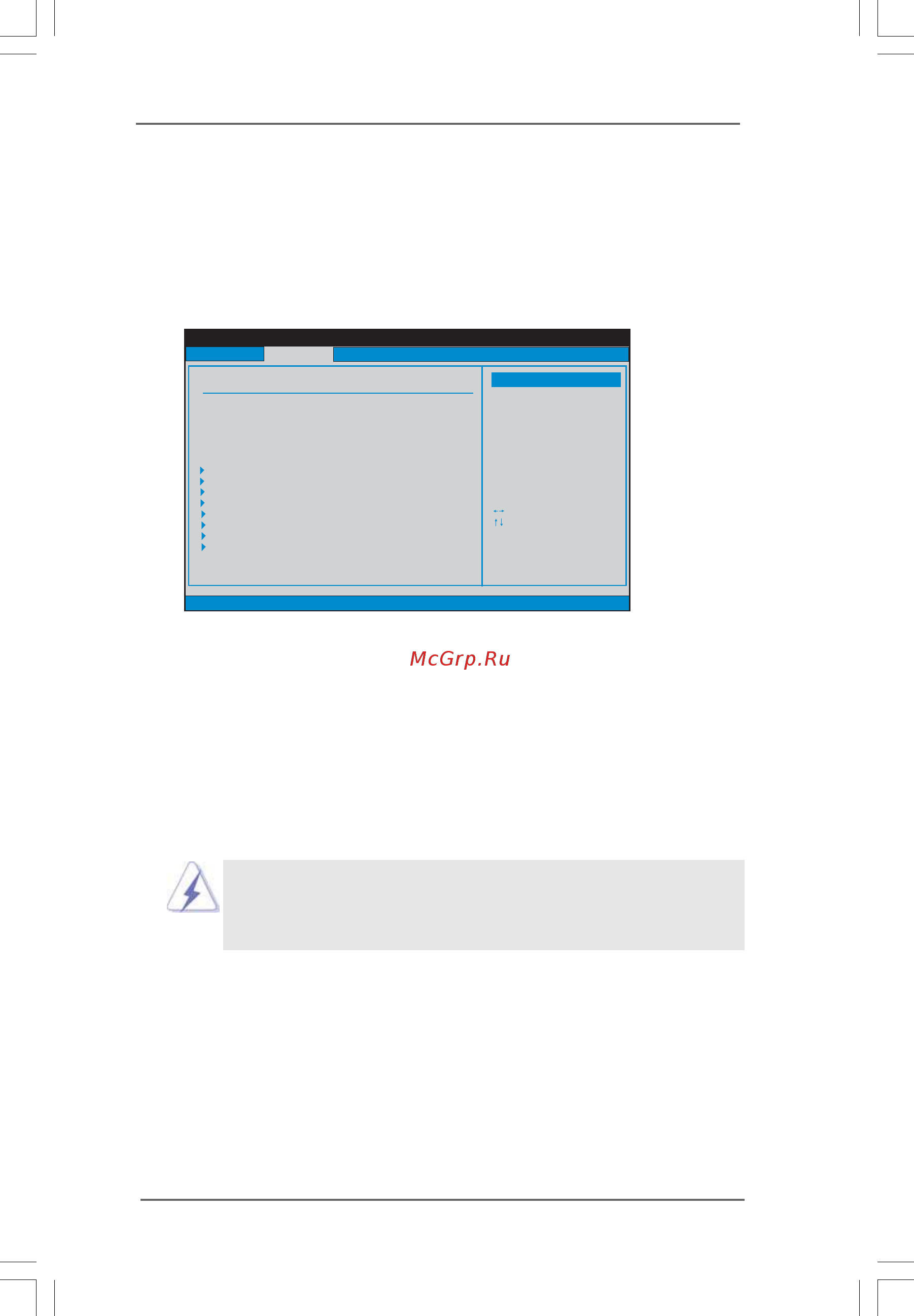

BIOS SETUP UTILITY
IDE Configuration
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
SATAII Configuration
SATAII 1
SATAII 2
SATAII 3
SATAII 4
SATAII 5
SATAII 6
IDE1 Master
IDE1 Slave
[Enhanced]
[Hard Disk]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
[Not Detected]
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
Configure SATAII as
Hot Plug
[AHCI]
[Enabled]
Disabled
Compatible
Enhanced
OnBoard IDE Controller
[Enabled]
AHCI CD/DVD Boot Time out
[20]
Options
ACPI HPET Table
Use this item to enable or disable ACPI HPET Table. The default value is
[Disabled]. Please set this option to [Enabled] if you plan to use this
motherboard to submit Windows
®
Vista
TM
certification.
3.3.43.3.4
3.3.43.3.4
3.3.4
IDE ConfigurationIDE Configuration
IDE ConfigurationIDE Configuration
IDE Configuration
SATAII Configuration
Please select [Compatible] when you install legacy OS. If native OS (Windows
2000 / XP) is installed, please select [Enhanced]. Then in the option “Config-
ure SATAII as”, you are allowed to set the selection to [RAID] if you plan to
enable RAID function. Configuration options: [AHCI], [IDE] and [RAID]. The
default value is [AHCI].
If you select [AHCI] or [RAID] mode, the option “Hot Plug” will appear. You are
allowed to use the Hot Plug function under Windows environment if this option
is enabled. Configuration options: [Enabled] and [Disabled].
AHCI (Advanced Host Controller Interface) supports NCQ and other
new features that will improve SATA disk performance but IDE
mode does not have these advantages.
OnBoard IDE Controller
Use this item to enable or disable onboard IDE controller. The default value is
[Enabled].
