10

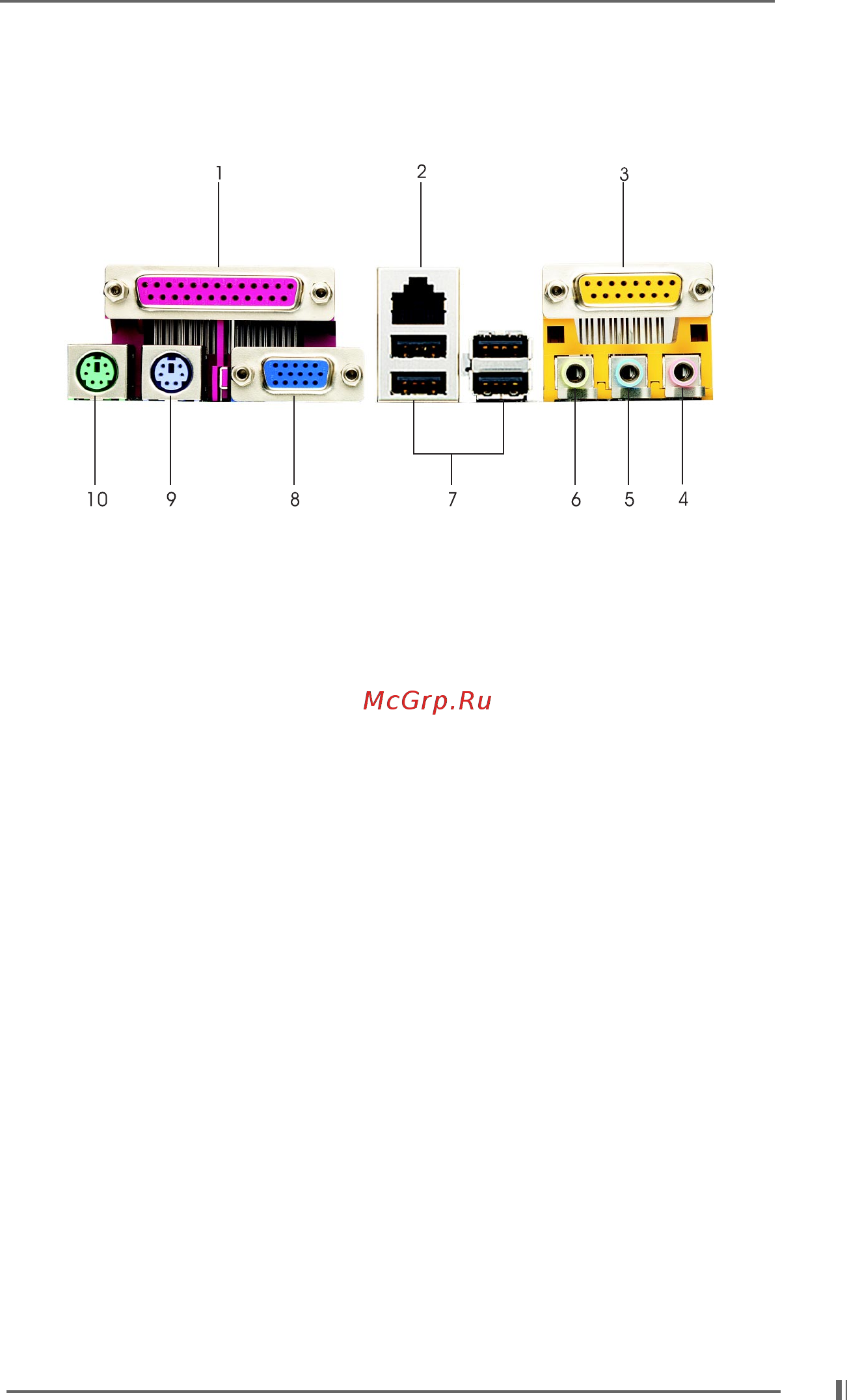

1.5 ASRock I/O
TM
(P4i45GL / P4i45GV)
1 Parallel Port 2 RJ-45 Port (Optional)
3 Game Port 4 Microphone (Pink)
5 Line In (Light Blue) 6 Line Out (Lime)
7 USB 2.0 Ports 8 VGA Port
9 PS/2 Keyboard Port (Purple) 10 PS/2 Mouse Port (Green)
