8

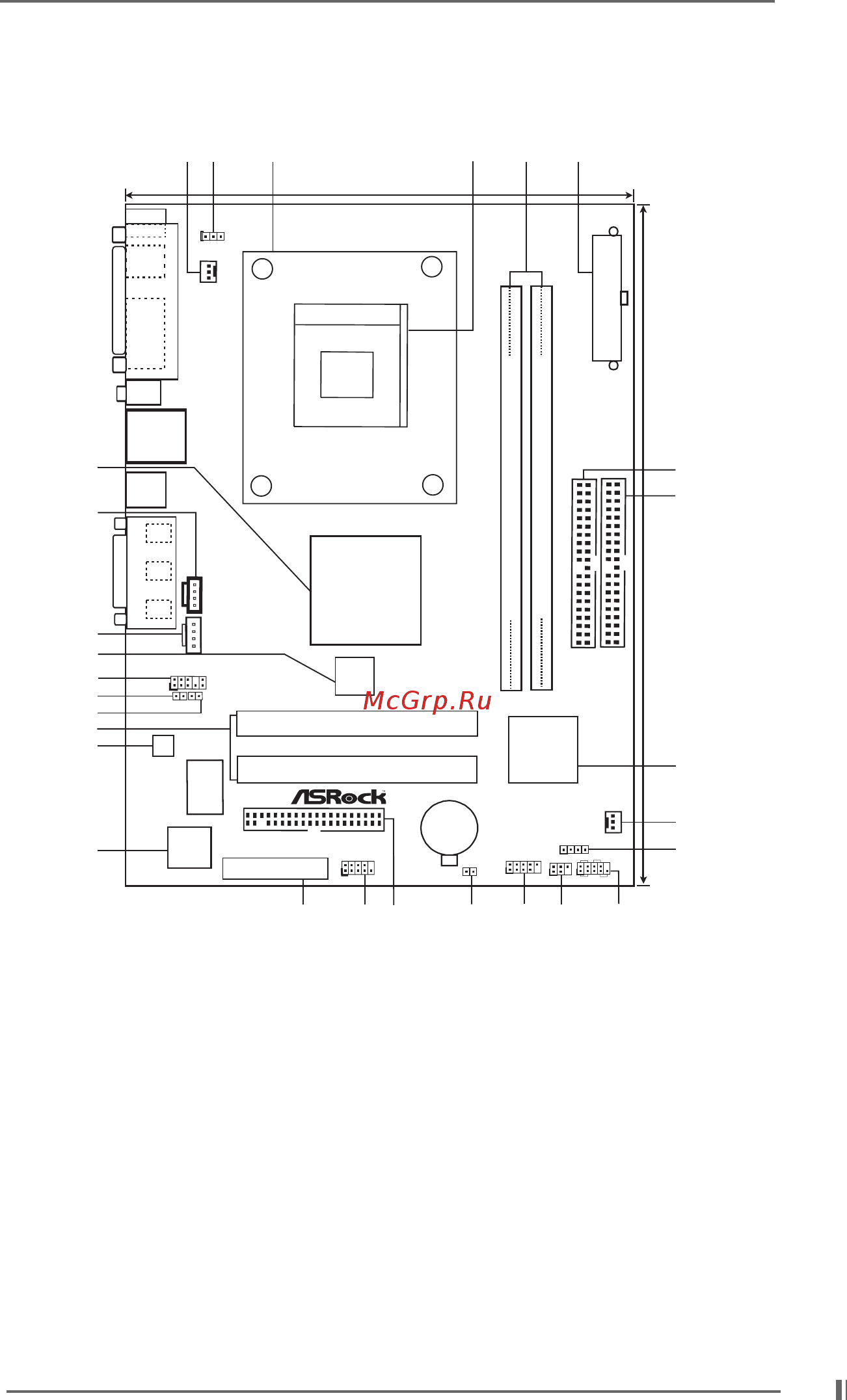

1.3 Motherboard Layout (P4i45GL)
1 CPU Fan Connector (CPU_FAN1) 2 PS2_USB_PWR1 Jumper
3 CPU Heatsink Retention Module 4 CPU Socket
5 184-pin DDR DIMM Slots (DDR DIMM1- 2) 6 ATX Power Connector (ATXPWR1)
7 Primary IDE Connector (IDE1, Blue) 8 Secondary IDE Connector (IDE2, Black)
9 South Bridge Controller 10 Chassis Fan Connector (CHA_FAN1)
11 External Speaker Connector (SPEAKER1) 12 System Panel Connector (PANEL1)
13 Infrared Module Connector (IR1) 14 USB 2.0 Header (USB45, Blue)
15 Clear CMOS (CLRCMOS0, 2-pin jumper) 16 Floppy Connector (FLOPPY1)
17 Serial Port Connector (COM1) 18 AMR Slot (AMR1)
19 BIOS FWH Chip 20 AUDIO CODEC
21 PCI Slots (PCI 1- 2) 22 JL1 Jumper
23 JR1 Jumper 24 Front Panel Audio Connector (AUDIO1)
25 PCI LAN (Optional) 26 Internal Audio Connector: AUX1 (White)
27 Internal Audio Connector: CD1 (Black) 28 North Bridge Controller
AMR1
1
COM1
CLRCMOS0
USB45
1
IR1
1
HDLED RST
PLED PWRBTN
1
PANEL 1
SPEAKER1
1
CHA_FAN1
FLOPPY1
Intel
ICH4
CMOS
Battery
USB2.0
5.1CH
PCI 2
PCI 1
P4i45GL
IDE1 IDE2
Super
I/O
2MB
BIOS
1
AUDIO1
JR1 JL1
AUDIO
CODEC
CPU_FAN1
1
PS2_USB_PWR1
Intel
845GL
Chipset
mPGA478B
10
DDR1 (64/72 bit, 184-pin module)
32
DDR2 (64/72 bit, 184-pin module)
PCI
LAN
ATXPWR1
Mic
In
GAME AUDIO1
LAN
(optional)
USB 2.0
Ports
Mic in
Line out
GAME AUDIO1
PARALLEL PORT
PS/2
Mouse
PS/2
Keyboard
VGA
Line
In
Line in
USB 2.0
Ports
17.8cm (7.0 in)
24.4cm (9.6 in)
21
3
4
5
6
9
10
11
7
8
1516
17
18
19
22
23
24
27
28
25
26
12
13
14
20
21
